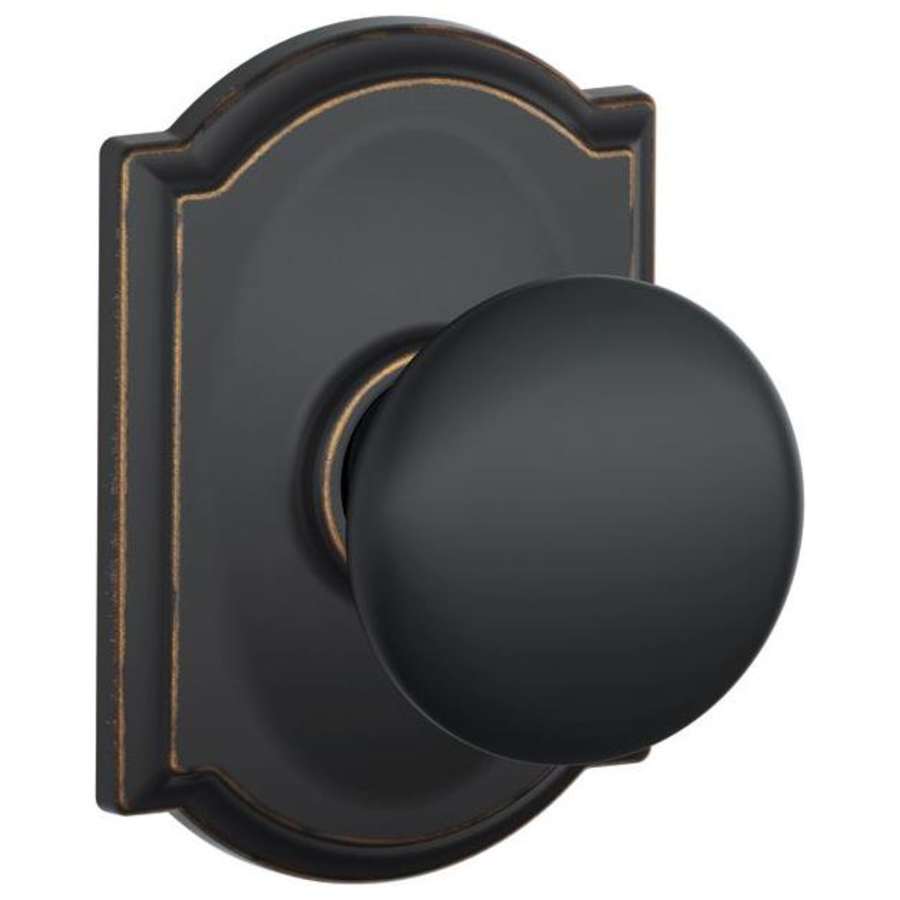

Schlage F10-PLY-CAM Passage Plymouth Door Knobset with the Decorative Camelot Rose
For over 90 years, Schlage has been making homes more stylish and secure with the best door locks and door hardware. Today the Schlage family of products also includes the very best in electronic locks, keyless door locks, and home security. Let Schlage’s hardware and security solutions protect and enhance the things that matter most to you.
The simple lines of the Plymouth knob complement a wide range of décor styles. A Passage Door Knobset is a Non-locking interior set for use on hall or closet doors. This Passage set includes two knobs (one for each side of the door), two decorative rosettes, the latch, strike plates, faceplates and all required mounting screws.
Includes 1″ x 2-1/4″ Round Corner Faceplate (1/4″ radius corners) and a Circular Drive-In Plate
7/8″ Housing Diameter
1/2″ Throw
Strike Plate: 1-5/8″ x 2-1/4″ Round Corner Full Lip Strike Plate Included
Dual backset latch included: fits either 2-3/8” or 2-3/4” backsets
Accommodates Door Thicknesses between 1-3/8” and 1-3/4”
Lifetime Mechanical and Finish Warranty (Finish warranty does not include Oil Rubbed Bronze because it is a living finish and will patina over time)
Solid zinc die-cast rose construction (Excluding the Andover Rose which is a stamped metal construction)
ANSI Grade 2
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Camelot Collection
Specifications
| Thermostat | Traditional |
| Handle Material | Metal |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Drive-In, Round Corner |
| Concealed Screws | No |
| Function | Passage |
| Knob Shape | Round |
| Rosette Shape | Arch |
| Handle Design | Plymouth |
| Trim Design | Camelot |
| Approved for Commercial Use | No |
| Collection | Camelot, Decorative Collection, Plymouth |
| ADA | No |
| Series | Decorative Collection, F-Series |
| Certifications | ANSI |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 2 |
| Edge Bore | 7/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Color | Aged Bronze, Antique Brass, Antique Pewter, Bright Chrome, Lifetime Polished Brass, Matte Black, Oil Rubbed Bronze, Polished Brass, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
