Schlage Works for You
Features:
Adjusts to fit all standard door preparations
Easy installation makes for a one-person project
Interior screws are exposed
ANSI/BHMA A156.2, 2011, Grade 2
Non handed and field reversible which means this knob set can be installed on right and left handed doors.
Faceplates (Part 16-080): Supplied with 1/4″ Round Corner and Drive-In Faceplates
Strike Plates (Part 10-027): Supplied with a Round Strike with Dimensions of 2-1/4″ x 1-5/8″
Lifetime Mechanical and Finish Warranty (Finish warranty does not include Oil Rubbed Bronze because it is a living finish and will patina over time)
Product Technologies:

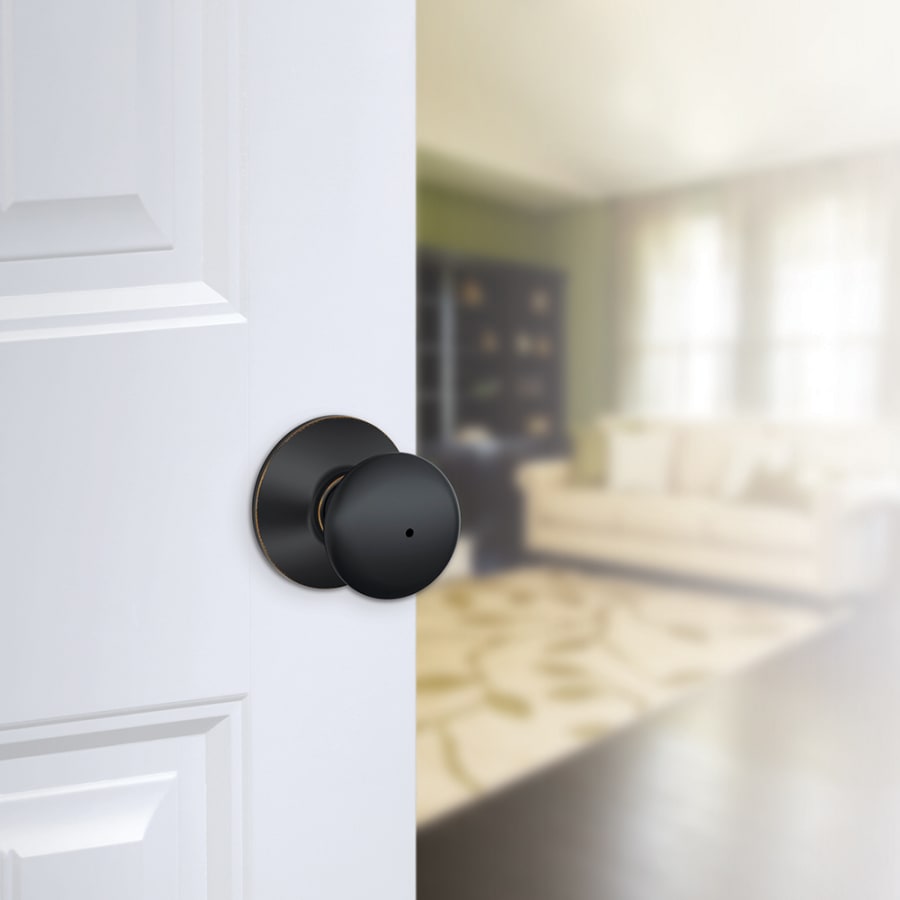

Privacy Function: Schlage’s privacy door knob sets are locked from the interior using a push button lock on the interior handle with a small pin hole to unlock the handle from the outside. Privacy knobs are ideal for bathrooms, bedrooms, or anywhere a locking door is desired but a keyed cylinder isn’t necessary.
Specifications:
Backset: Adjustable to 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 7/8″
Door Thickness: 1-3/8″ or 1-3/4″
Handing: Left, Right, Reversible
Knob Diameter: 2-3/16″
Projection: 2-5/16″
Product Weight: 1.55 lbs
Additional Functions:
F10-PLY: Passage Knobset

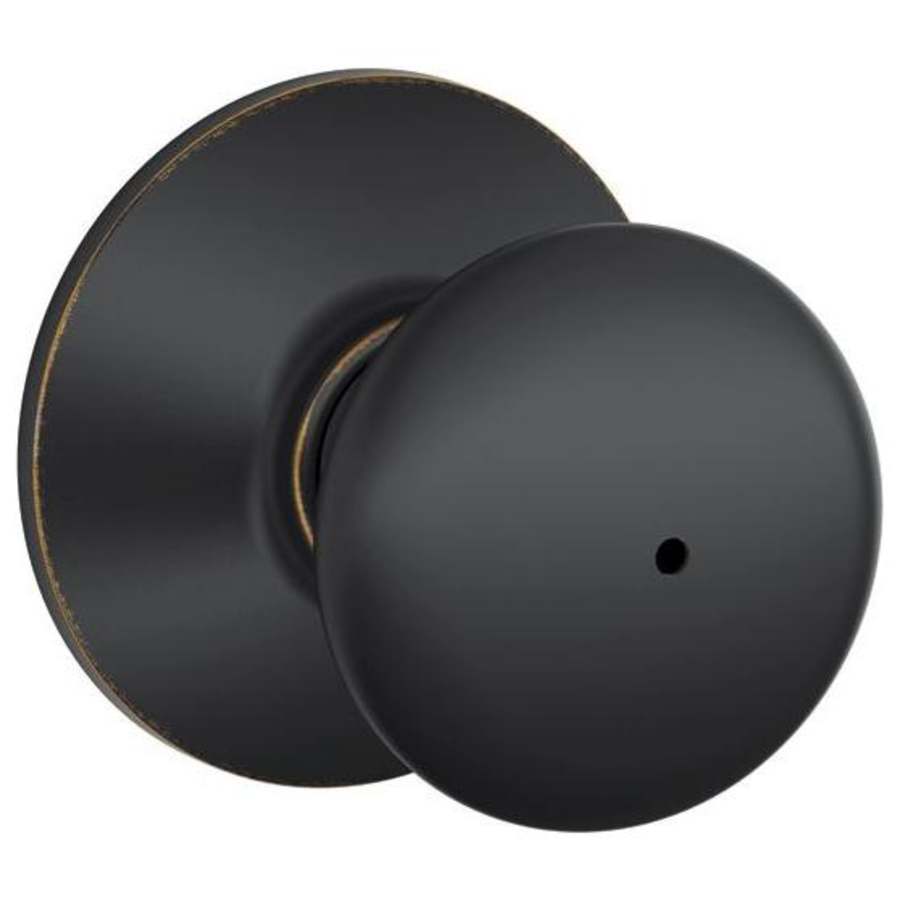

F40-PLY (This Model): Privacy Knobset
F51-PLY: Keyed Entry Knobset
F170-PLY: Single Dummy Knob
For over 90 years, Schlage has been making homes more stylish and secure with the best door locks and door hardware. Today the Schlage family of products also includes the very best in electronic locks, keyless door locks, and home security. Let Schlage’s hardware and security solutions protect and enhance the things that matter most to you.
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Plymouth Collection
Specifications
| Thermostat | Transitional |
| Handle Material | Metal |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Drive-In, Round Corner |
| Style | Transitional |
| Concealed Screws | No |
| Function | Privacy |
| Knob Shape | Round |
| Rosette Shape | Round |
| Locking Mechanism | Push Button |
| Handle Design | Plymouth |
| Trim Design | Plymouth |
| ADA | No |
| Approved for Commercial Use | No |
| Collection | Plymouth |
| Series | F-Series |
| Certifications | ANSI |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 2 |
| Edge Bore | 7/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Color | Aged Bronze, Aged Bronze x Polished Chrome, Aged Bronze x Satin Nickel, Antique Brass, Antique Brass x Satin Nickel, Antique Pewter, Bright Chrome, Oil Rubbed Bronze, Oil Rubbed Bronze x Polished Chrome, Polished Brass, Polished Brass x Polished Chrome, Polished Brass x Satin Chrome, Polished Brass x Satin Nickel, Polished Chrome x Polished Brass, Satin Chrome, Satin Chrome x Polished Chrome, Satin Nickel x Polished Brass, Satin Nickel x Polished Chrome, Matte Black, Polished Chrome, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
