Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Â

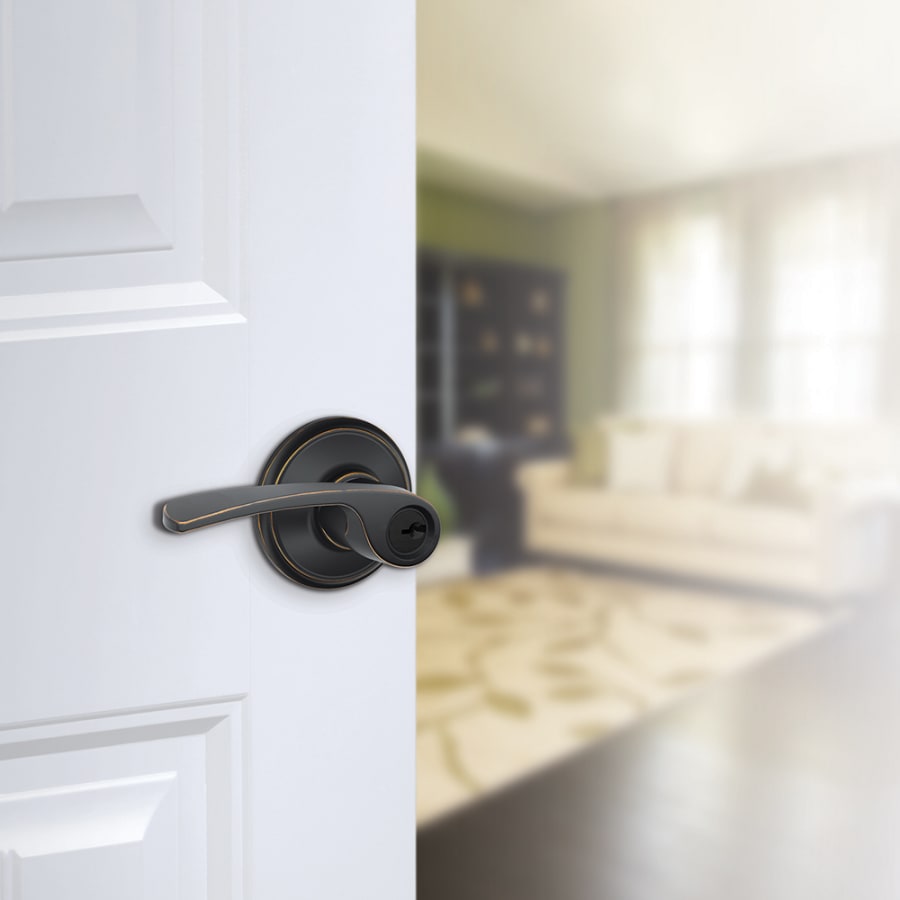

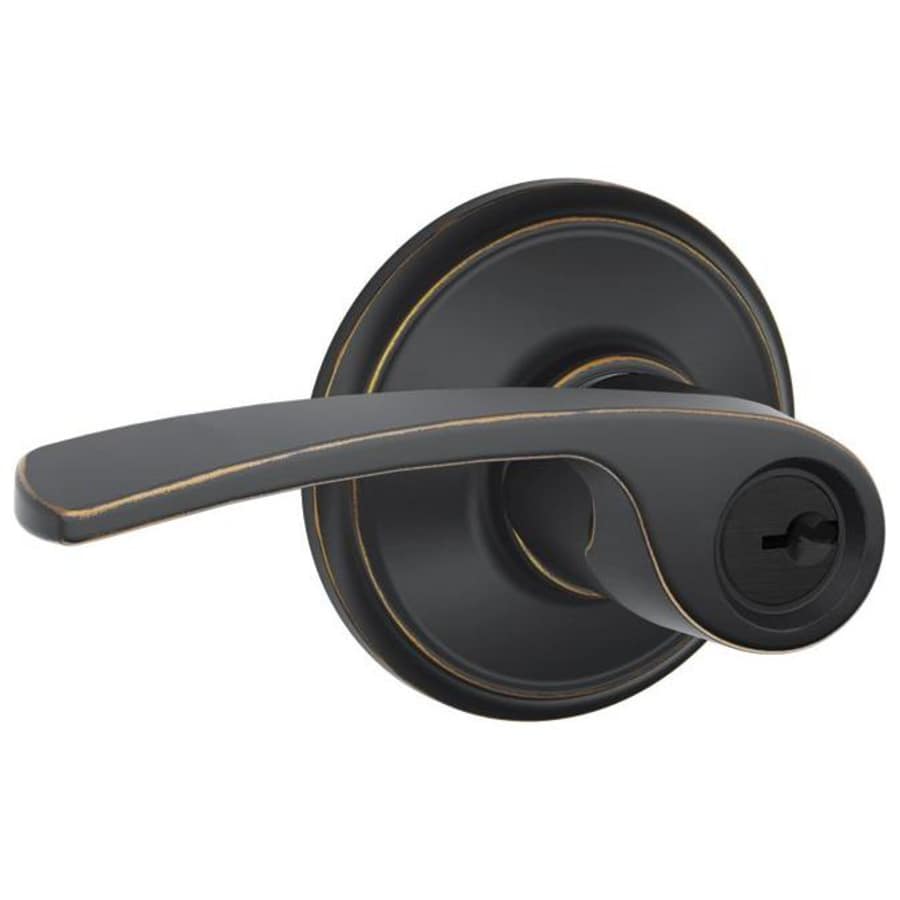

Keyed Entry (Single Cylinder) Function: Schlage single cylinder keyed entry door lever sets can be locked and unlocked from the exterior with a key, and then locked or unlocked from the inside with an associated turn-button. While primarily used to secure entrances and side doors, it can be used anywhere a little extra security is desired.
Â
Â
Product Features:
A Lifetime Mechanical and Finish Warranty gives you the peace of mind that this product will be looking good and functioning smoothly for as long as you own it. (Finish warranty does not include Oil Rubbed Bronze because it is a living finish and it is expected to patina over time)
Â
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take just a matter of minutes.
Â
BHMA/ANSI Grade 2 certified which indicates excellent performance across a range of residential applications. This product is built from high-quality materials to give you exceptional security.
Â
These levers are field reversible allowing this leverset to be used for both right and left handed applications with ease and eliminating any chance of getting a wrong handed product.
Â
Specifications:
Backset: 2-3/4″, 2-3/8″, Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 7/8″
Door Thickness: 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″
Handing: Left, Right, Reversible
Handle Design: Merano
Trim Design: Plymouth
Product Weight: 1.5 lbs
Latch Faceplate: Drive-in, Square Corner, Round Corner
Cylinder: 5 Pin Schlage C
Product Variations:
F10-MER: Passage Lever Set
F170-MER-LH: Left Handed Single Dummy Lever
F170-MER-RH: Right Handed Single Dummy Lever
F40-MER: Privacy Lever Set
F51-MER (This Model): Keyed Entry Lever Set
F80-MER-LH: Left Handed Keyed Entry Lever Set
F80-MER-RH: Right Handed Keyed Entry Lever Set
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Merano Collection
Specifications
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 7/8" |
| Approved for Commercial Use | No |
| Collection | Merano |
| Series | F-Series |
| ADA | No |
| ANSI Certification | A156.5 |
| Certifications | ANSI |
| BHMA Certification | Grade 2 |
| Thermostat | Transitional |
| Handle Material | Metal |
| Function | Entrance, Keyed Entry |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Concealed Screws | No |
| Cylinder | 5 Pin Schlage C |
| Cylinder Type | Single Cylinder |
| Handshower | Left, Reversible, Right |
| Keyway | C |
| Rosette Shape | Round |
| Lever Shape | Designer, Straight |
| Trim Design | Plymouth |
| Handle Design | Merano |
| Color | Aged Bronze, Bright Chrome, Matte Black, Satin Chrome, Satin Nickel |
| Color Tone | Blacks, Bronze Tones, Nickel Tones, Silver Tones |
