Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Â
Keyed Entry (Single Cylinder) Function: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.
Â
Schlage Special Features:
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take less than an hour.
These levers are field reversible allowing this leverset to be used for both right and left handed applications with ease and eliminating any chance of getting a wrong handed product.
A Lifetime Mechanical and Finish Warranty gives you the piece of mind that this product will be looking good and functioning smoothly for as long as you own it.(Finish warranty does not include Oil Rubbed Bronze because it is a living finish and it is expected to patina over time).
Additional Features:
Adheres to ANSI/BHMA A156.2 Grade 2 security standards
Constructed from metal for lasting durability
Includes all mounting hardware for easy installation in prepared doors
Includes round, square and drive-in latch plates for maximum versatility
Schlage offers a limited lifetime manufacturer warranty
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible, Left or Right
Projection: 3-1/4″
Rose Height: 2-15/16″
Rose Width: 2-15/16″
Cylinder: 5 Pin Schlage C
Material: Zinc
Product Variations:
FC172-BRW-COL: Dummy Door Lever Set
FC21-BRW-COL: Passage & Privacy Door Lever Set

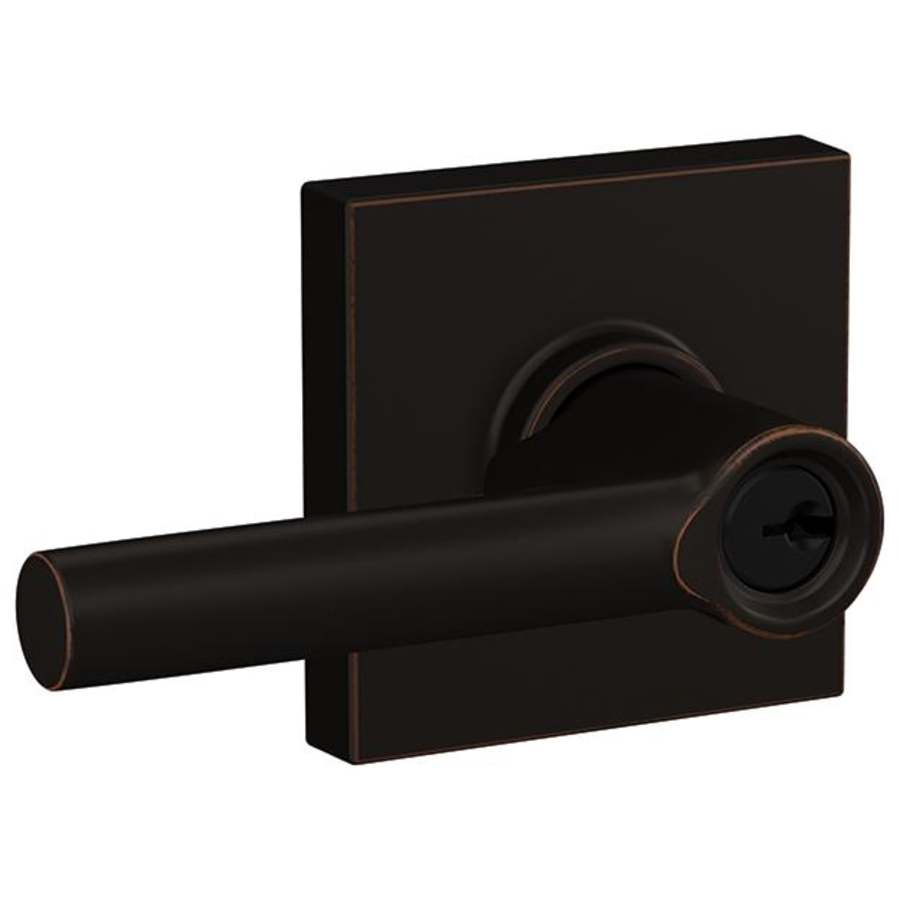

F51A-BRW-COL (This Model): Keyed Entry Door Lever Set
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Broadway Collection
Specifications
| Product Weight | 1.55 lbs. |
| Door Thickness | 1-3/4", 1-5/8", 1-1/2", 1-3/8" |
| Handle Projection | 3.2 in. |
| Trim Height | 2.9 in. |
| Trim Width | 2.9 in. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Material | Zinc |
| Thermostat | Modern |
| Handle Material | Metal |
| Concealed Screws | No |
| Function | Keyed Entry |
| Handshower | Left, Right, Reversible |
| Handle Design | Broadway |
| Lever Shape | Round, Straight |
| Rosette Shape | Square |
| Trim Design | Collins |
| Cylinder | 5 Pin Schlage C |
| Cylinder Type | Single Cylinder |
| Keyway | C |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Locking Mechanism | Thumbturn |
| Number of Keys | 2 |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime Finish, Limited Lifetime Mechanical |
| ADA | No |
| Series | F-Series |
| Certifications | ANSI, UL |
| BHMA Certification | Grade 2 |
| ANSI Certification | A156.2 |
| Color | Aged Bronze, Bright Chrome, Matte Black, Satin Chrome, Satin Nickel |
| Color Tone | Blacks, Bronze Tones, Nickel Tones, Silver Tones |
