Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

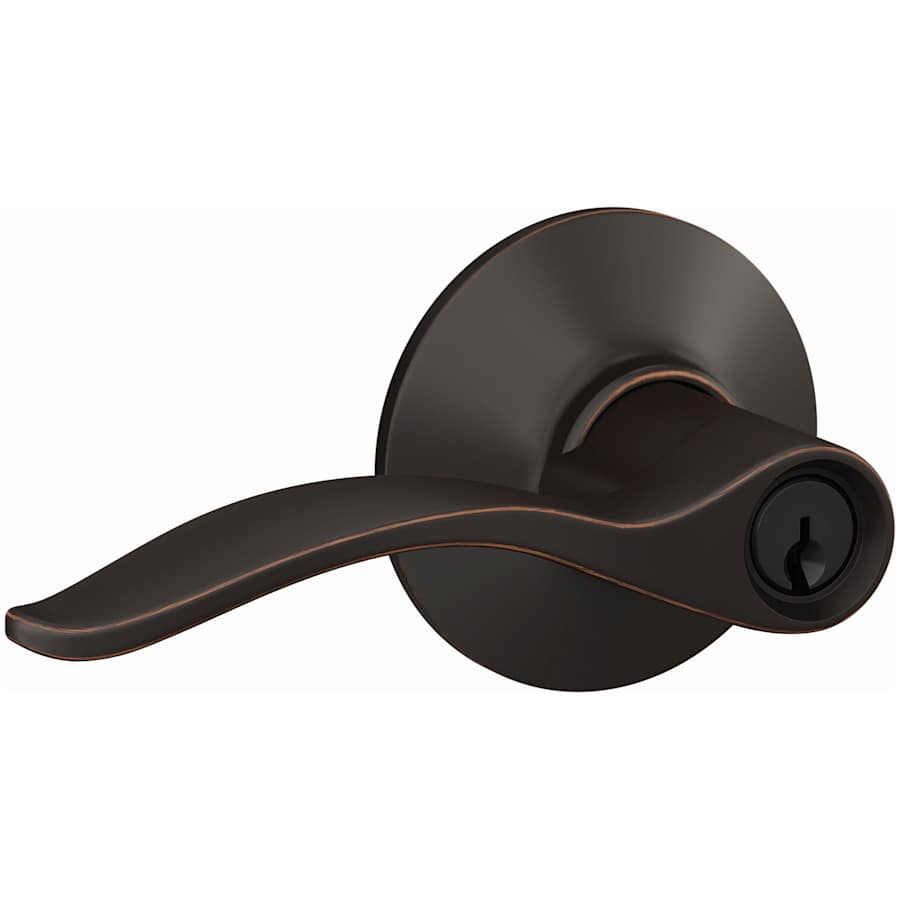

Single Cylinder Keyed Entry: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.
Features:
BHMA security rated
Constructed of high quality materials for lasting durability
Installs easily with all necessary mounting hardware included
Covered by Schlage’s limited lifetime manufacturer warranty
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ – 1-3/4″
Handing: Reversible Left or Right
Handle Projection: 2-5/16″
Trim Height: 2-11/16″
Trim Width: 2-11/16″
Latch Faceplate: Round Corner
Cylinder: 5 Pin C Keyway
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Custom Collection
Specifications
| Approved for Commercial Use | No |
| Collection | Pennant |
| Country Of Origin | Mexico |
| Manufacturer Warranty | Limited Lifetime |
| ADA | No |
| Fire Rated | No |
| Series | F Series |
| Certifications | ANSI |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 2 |
| Material | Zinc |
| Concealed Screws | No |
| Function | Keyed Entry |
| Handshower | Left, Reversible, Right |
| Handle Design | Pennant |
| Keyway | C |
| Latch Faceplate | Round Corner |
| Rosette Shape | Round |
| Thermostat | Transitional |
| Trim Design | Plymouth |
| Handle Material | Metal |
| Handle Style | Lever |
| Cylinder | 5 Pin C |
| Cylinder Type | Single Cylinder |
| Lever Shape | Wave |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Edge Bore | 1" |
| Handle Projection | 2.32 in. |
| Product Weight | 1.68 lbs. |
| Trim Height | 2.7 in. |
| Trim Width | 2.7 in. |
| Cylinder Included | Yes |
| Color | Aged Bronze, Bright Chrome, Satin Chrome, Matte Black, Satin Nickel |
| Color Tone | Blacks, Bronze Tones, Nickel Tones, Silver Tones |
