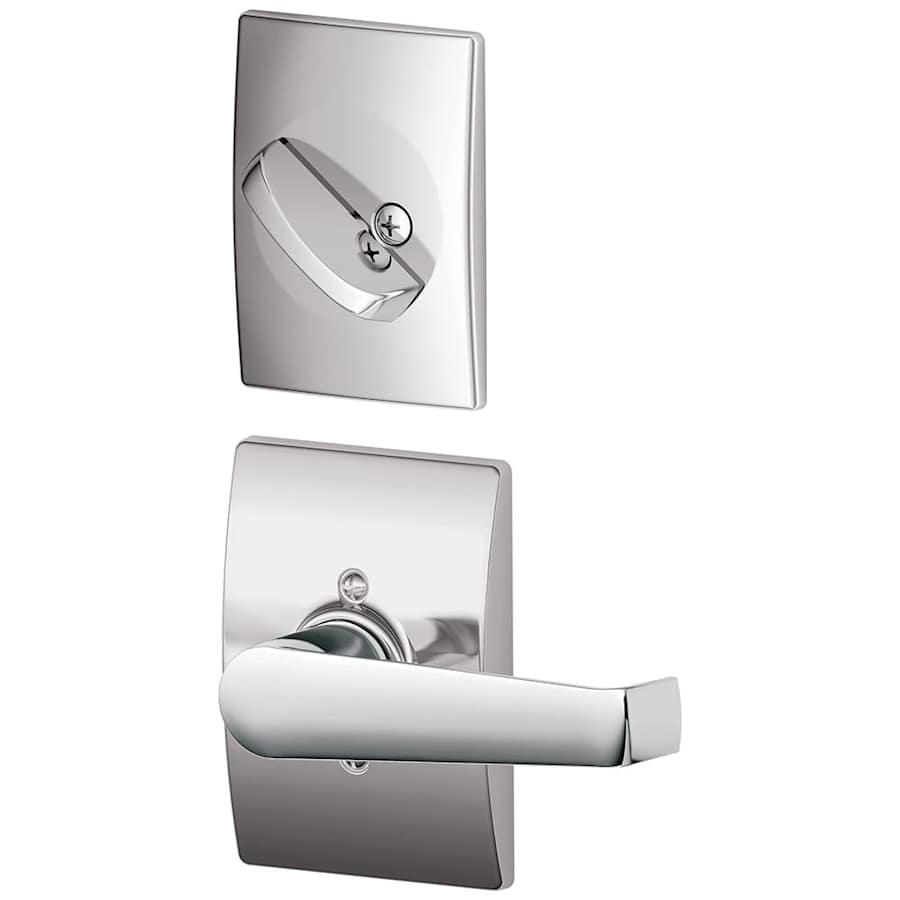

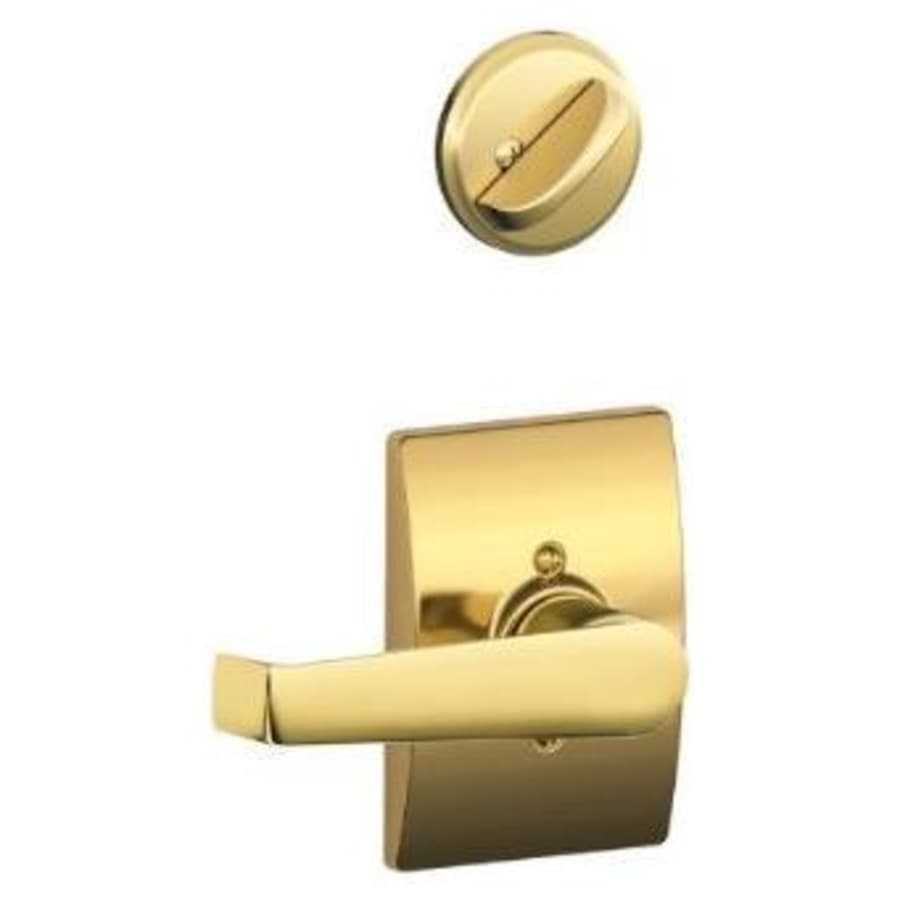

Interior Pack (Single Cylinder) Function: Schlage single cylinder interior packs complete the interior mounting of a working mechanical lock set, and require an associated exterior single cylinder trim for installation.
Product Features:
A Lifetime Mechanical and Finish Warranty gives you the peace of mind that this product will be looking good and functioning smoothly for as long as you own it. (Finish warranty does not include Oil Rubbed Bronze because it is a living finish and it is expected to patina over time)
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take just a matter of minutes.
BHMA/ANSI Grade 2 certified which indicates excellent performance across a range of residential applications. This product is built from high-quality materials to give you exceptional security.
These levers are field reversible allowing this leverset to be used for both right and left handed applications with ease and eliminating any chance of getting a wrong handed product.
Specifications:
Backset: 2-3/4″, 2-3/8″, Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″
Handle Design: Elan
Trim Design: Century
Handing: Reversible
Latch Faceplate: Round Corner, Square Corner, Drive-In
Cylinder: 5 Pin Schlage C
Product Variations:
F59-ELA-CEN (This Model): Keyed Entry Single Cylinder Interior Pack
F94-ELA-CEN: Dummy Interior Pack
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Century Collection
Specifications
| Thermostat | Modern |
| Handshower | Left, Reversible, Right |
| Handle Material | Metal |
| Handle Style | Lever |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Shape | Flat, Straight |
| Style | Contemporary / Modern |
| Function | Keyed Entry |
| Cylinder Type | Single Cylinder |
| Panic Proof | No |
| Trim Design | Century |
| Number of Keys | 2 |
| Handle Design | Elan |
| Approved for Commercial Use | No |
| Collection | Century, Elan |
| Certifications | ANSI |
| ANSI Certification | A156.5 |
| Series | Decorative Collection, F-Series |
| BHMA Certification | Grade 2 |
| Product Weight | 1.5 lbs. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Edge Bore | 1" |
| Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2" |
| Center to Center | 5.5 in. |
| Cross Bore | 2-1/8" |
| Handle Projection | 2.4375 in. |
| Trim Height | 4.25 in. |
| Trim Width | 2.75 in. |
| Handle Length | 3.875 in. |
| Color | Antique Brass, Bright Chrome, Polished Brass, Satin Chrome |
| Color Tone | Brass Tones, Silver Tones |
