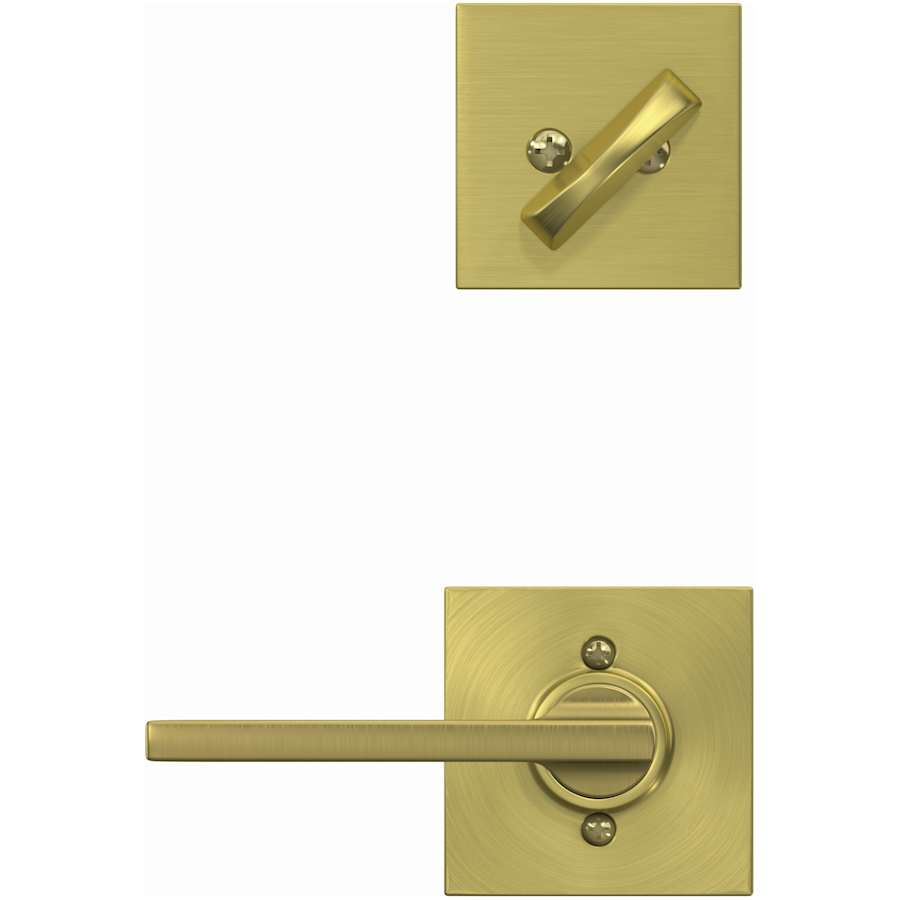

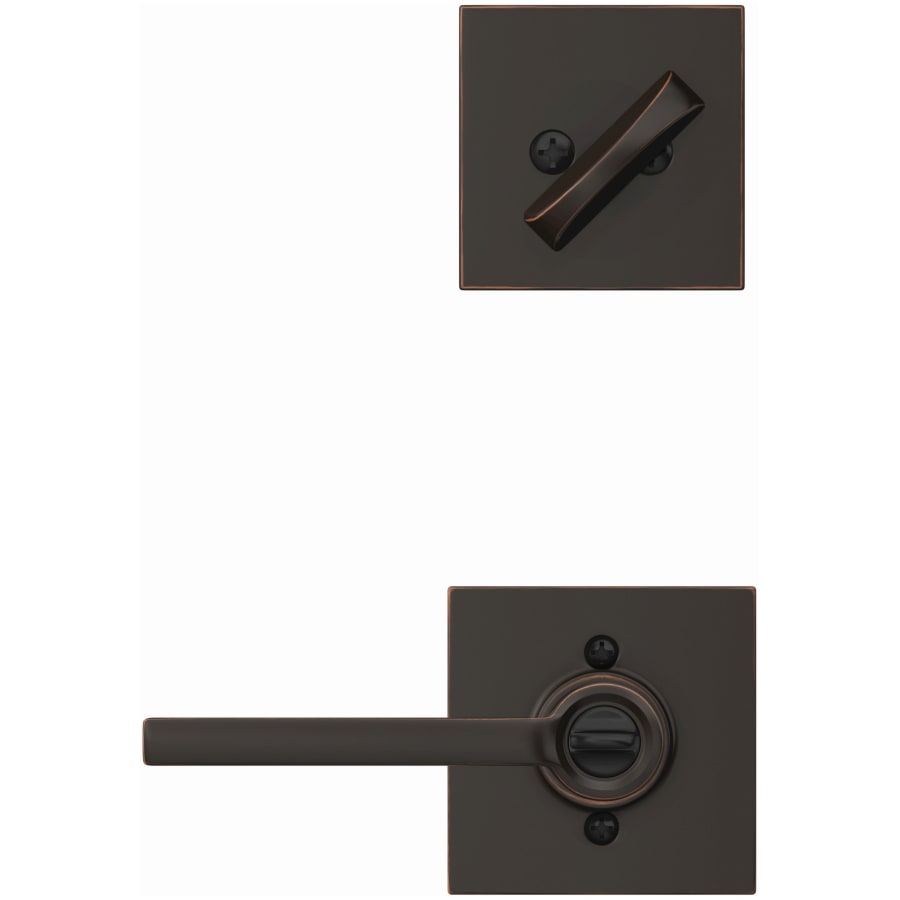

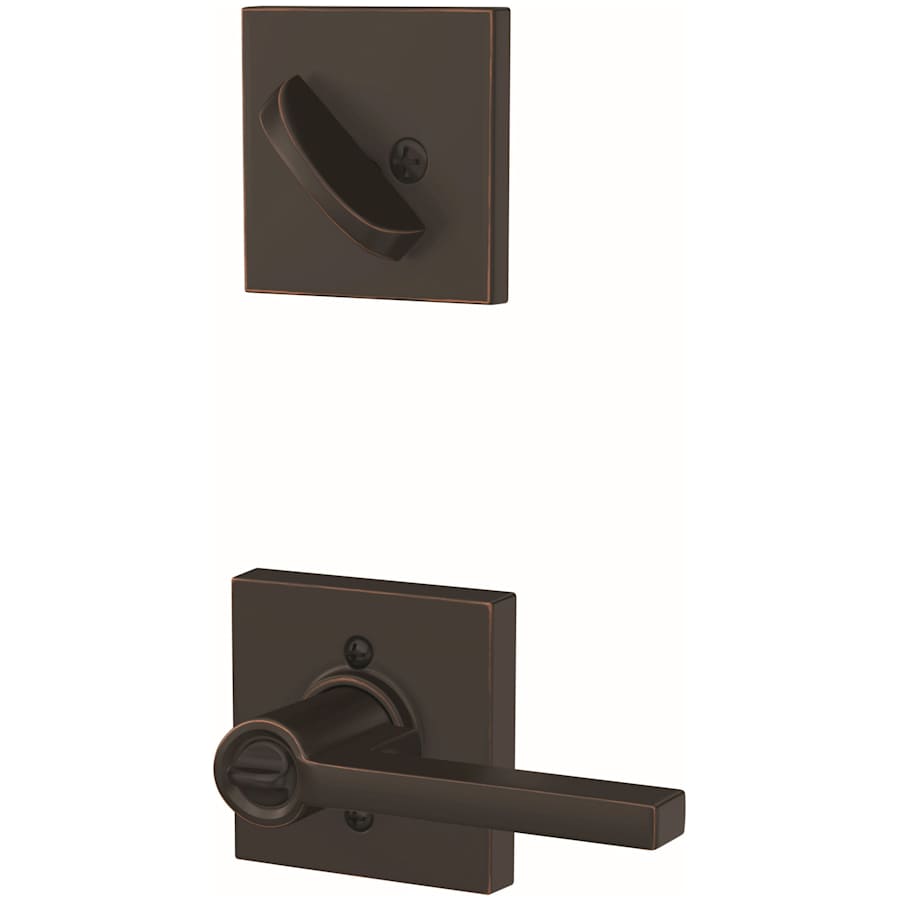

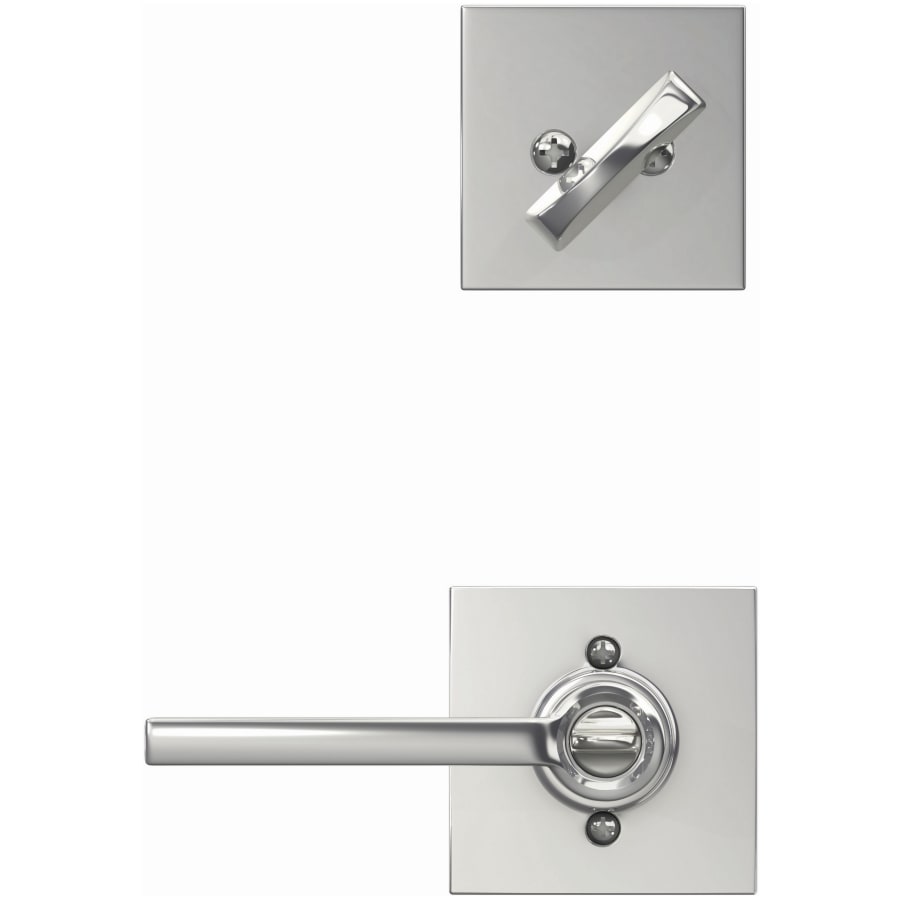

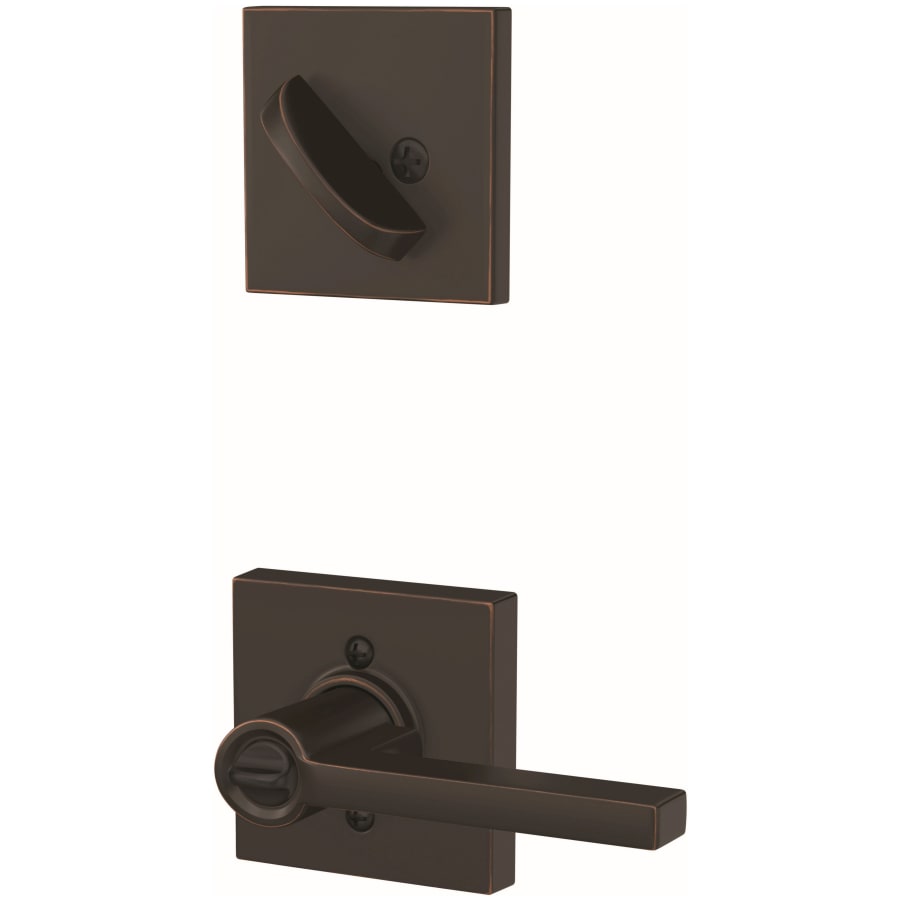

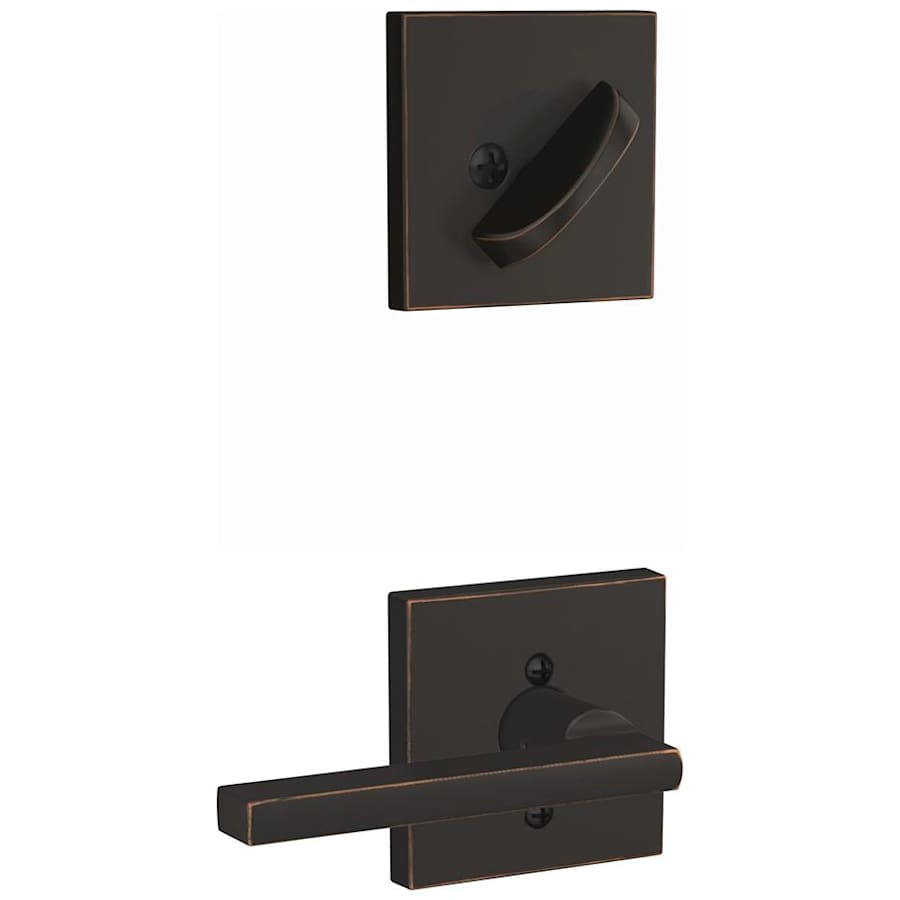

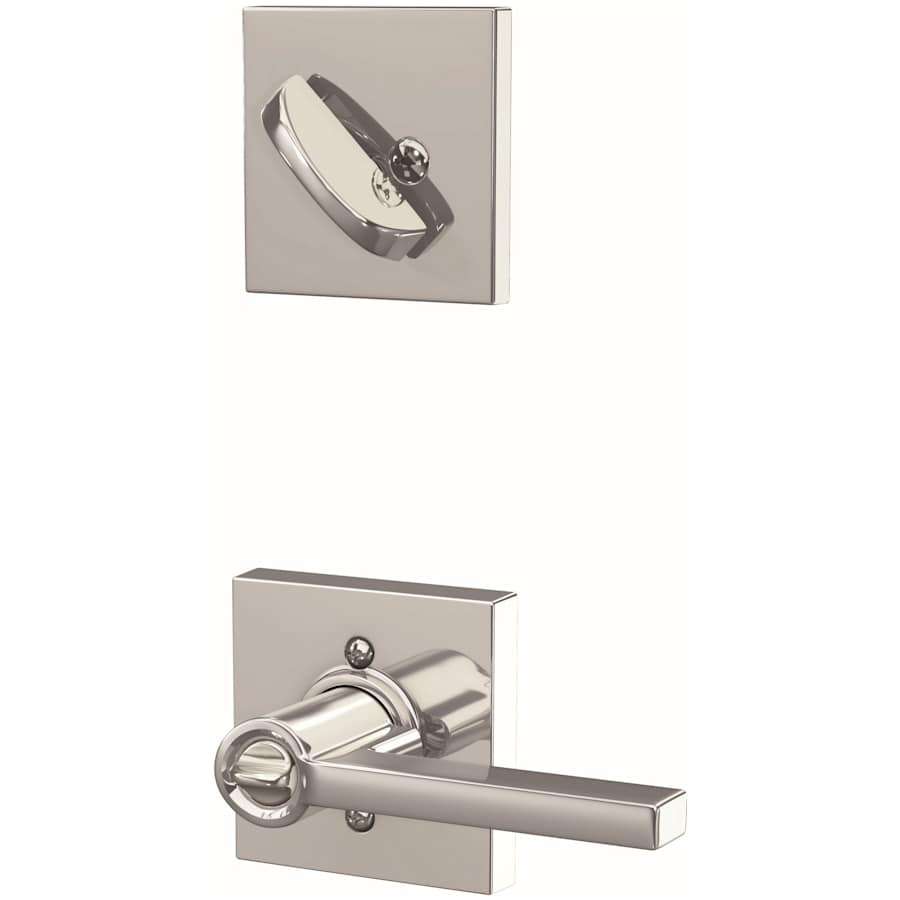

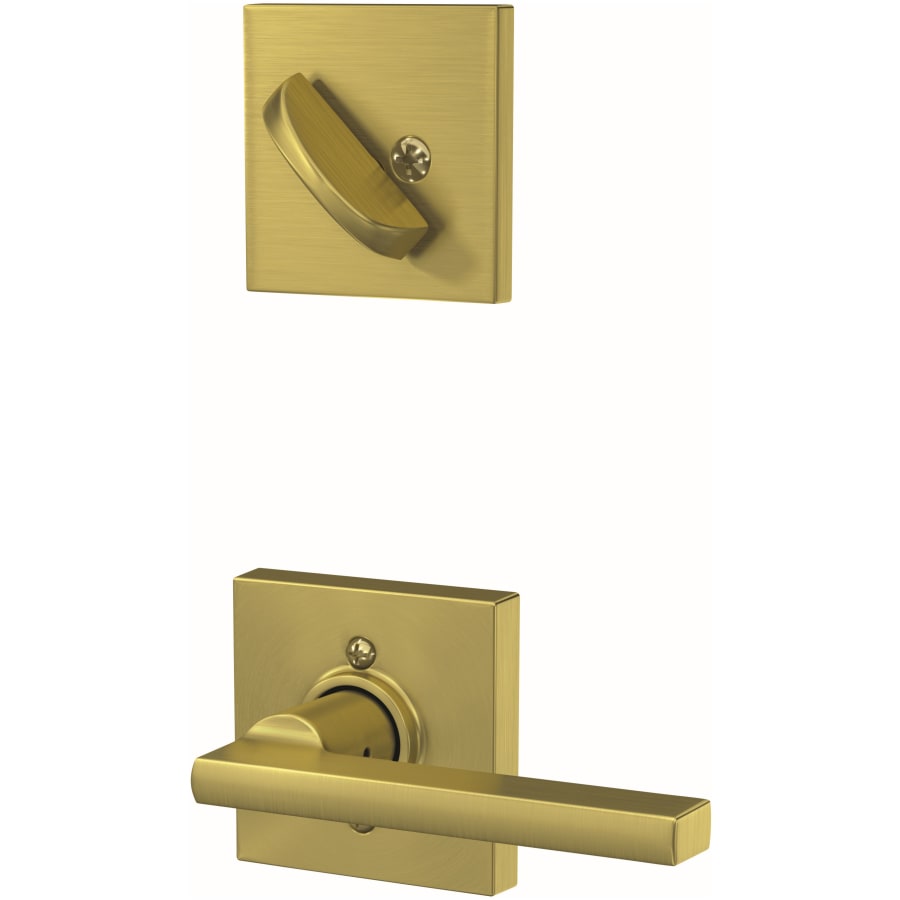

Single Cylinder Keyed Entry (Interior Only):Single cylinder interior packs complete the interior mounting of a working mechanical lock set, and require an associated exterior single cylinder trim for installation. Includes a thumbturn for the interior side of the deadbolt and a knob or lever for the inside of the door.
Â
Features:
BHMA grade 2 security
Crafted from high quality materials for strength and durability
Installs easily with all necessary mounting hardware included
Covered by a limited lifetime warranty
ADA compliant lever
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-5/8″ or 1-3/4″
Handing: Reversible Left or Right
Handle Length: 4-1/2″
Handle Projection: 2-1/4″
Trim Width: 2-3/4″
Trim Height: 2-3/4″
Product Weight: 1.75lb
Latch Faceplate: Round Corner, Square Corner
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Latitude Collection
Specifications
| Product Weight | 1.75 lbs. |
| Door Thickness | 1-3/4", 1-5/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.25 in. |
| Trim Height | 2.72 in. |
| Trim Width | 2.72 in. |
| Handle Length | 4.51 in. |
| Material | Zinc |
| Thermostat | Modern |
| Handle Material | Metal |
| Handle Style | Lever |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Handshower | Left, Reversible, Right |
| Concealed Screws | No |
| Handle Design | Latitude |
| Latch Faceplate | Round Corner, Square Corner |
| Trim Design | Collins |
| ADA | No |
| Certifications | ANSI |
| Collection | Collins, Latitude |
| Approved for Commercial Use | No |
| Country Of Origin | Mexico |
| Manufacturer Warranty | Limited Lifetime |
| Series | F Series |
| BHMA Certification | Grade 2 |
| ANSI Certification | A156.4 |
| Color | Aged Bronze, Bright Chrome, Matte Black, Satin Brass, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
