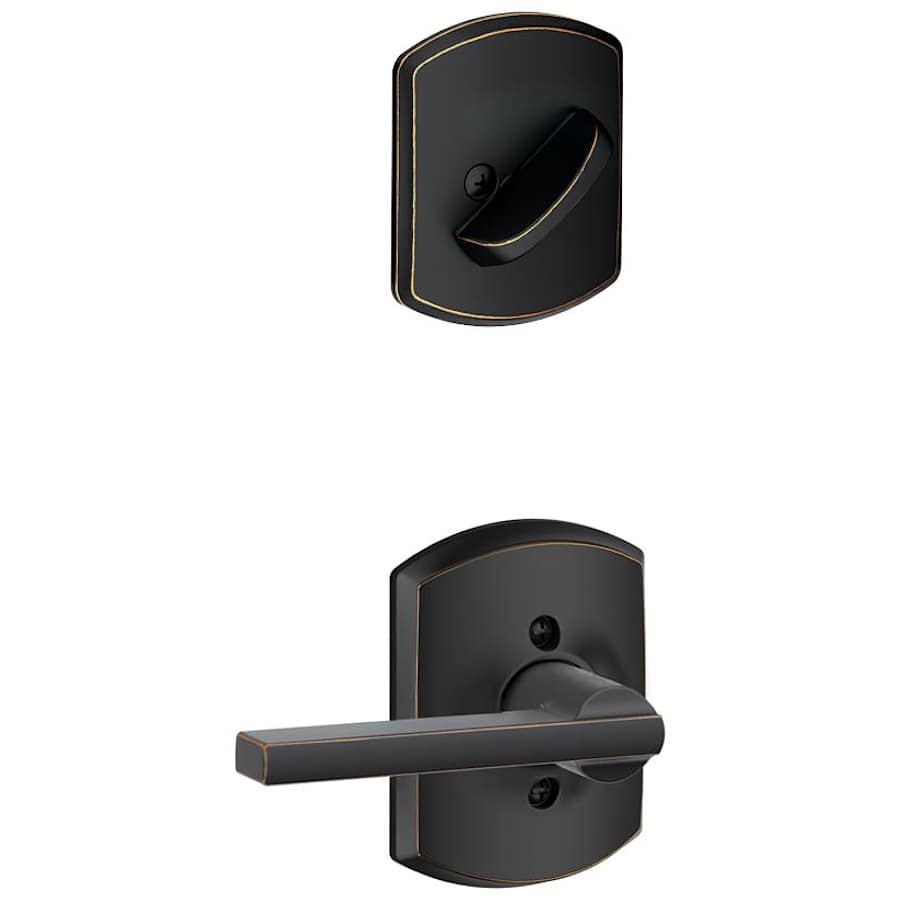

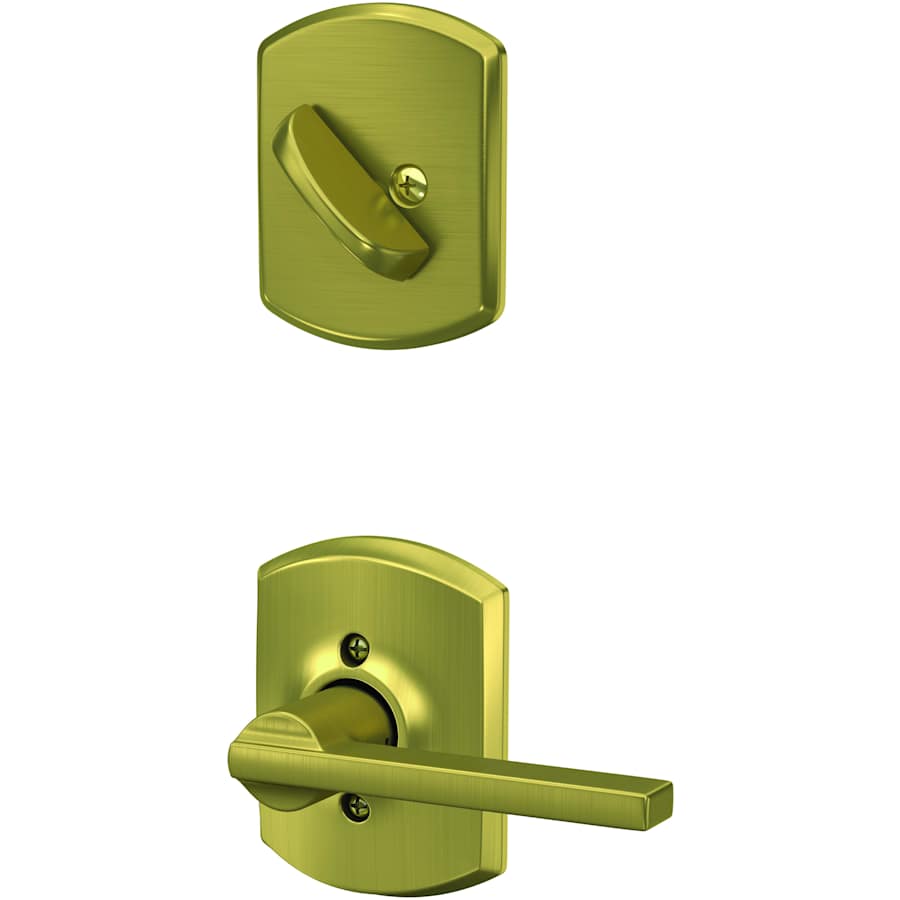

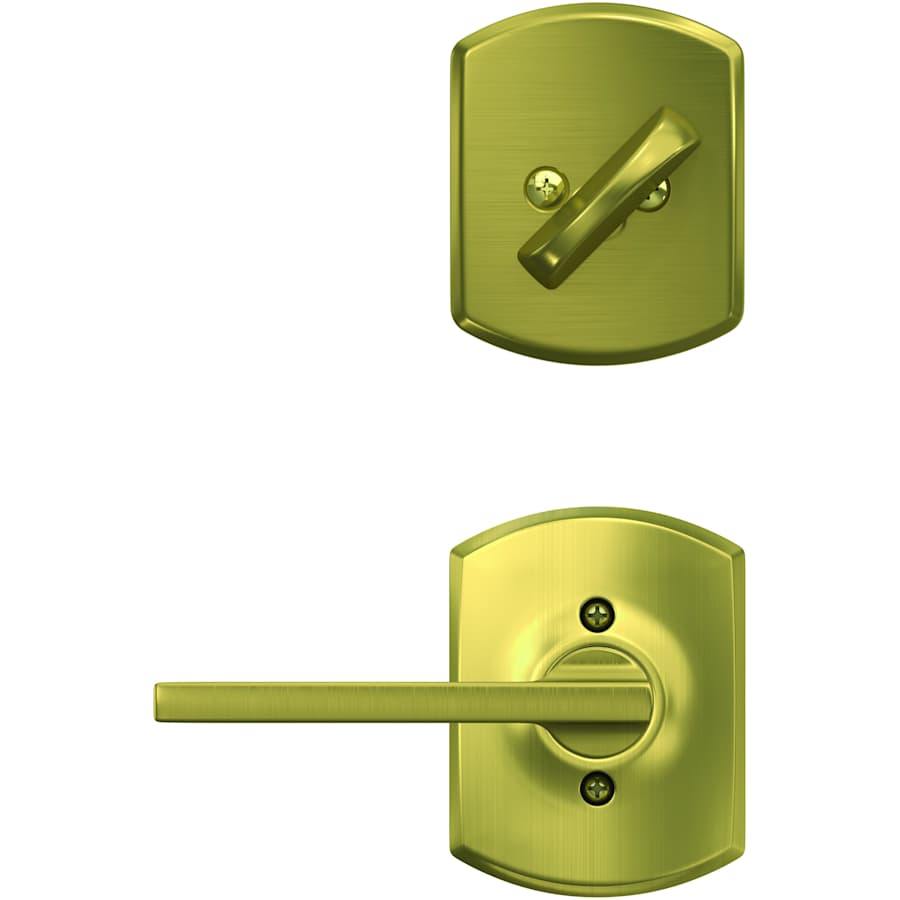

Single Cylinder Keyed Entry (Interior Only):Single cylinder interior packs complete the interior mounting of a working mechanical lock set, and require an associated exterior single cylinder trim for installation. Includes a thumbturn for the interior side of the deadbolt and a knob or lever for the inside of the door.
Features:
Tested to exceed ANSI/BHMA Grade 1 security requirements
Constructed of high quality materials for durability and dependability
Installs easily with all necessary mounting hardware included
Pair with a Schlage exterior pack (F58) for a complete set
Covered by Schlage’s limited lifetime manufacturer warranty
Featured Technologies:
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take less than an hour.
These levers are field reversible allowing this leverset to be used for both right- and left-handed applications with ease and eliminating any chance of getting a wrong handed product.
A Lifetime Mechanical and Finish Warranty gives you the peace of mind that this product will be looking good and functioning smoothly for as long as you own it. (Finish warranty does not include Oil Rubbed Bronze because it is a living finish, and it is expected to patina over time).
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Latch Faceplate: Drive-In or Round Corner
Mounting Center to Center: 5-1/2″
Handle Projection: 2-1/2″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Latitude Collection
Specifications
| Thermostat | Modern |
| Material | Zinc |
| Handshower | Left, Reversible, Right |
| Handle Material | Metal |
| Handle Style | Lever |
| Latch Faceplate | Drive-In, Round Corner |
| Shape | Flat, Straight |
| Style | Contemporary / Modern |
| Function | Keyed Entry |
| Rosette Shape | Rectangle |
| Cylinder | 5 Pin Schlage C |
| Cylinder Type | Single Cylinder |
| Panic Proof | No |
| Trim Design | Greenwich |
| Handle Design | Latitude |
| Approved for Commercial Use | No |
| ADA | No |
| Collection | F-Series |
| Country Of Origin | Mexico |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | ANSI, BHMA |
| ANSI Certification | A156.5 |
| Series | Greenwich, Latitude |
| BHMA Certification | Grade 1 |
| Product Weight | 1.70 lbs. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Edge Bore | 1" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Center to Center | 5.5 in. |
| Cross Bore | 2-1/8" |
| Handle Projection | 2.5 in. |
| Handle Length | 3.86 in. |
| Color | Aged Bronze, Bright Chrome, Matte Black, Polished Nickel, Satin Brass, Satin Chrome, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
