Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

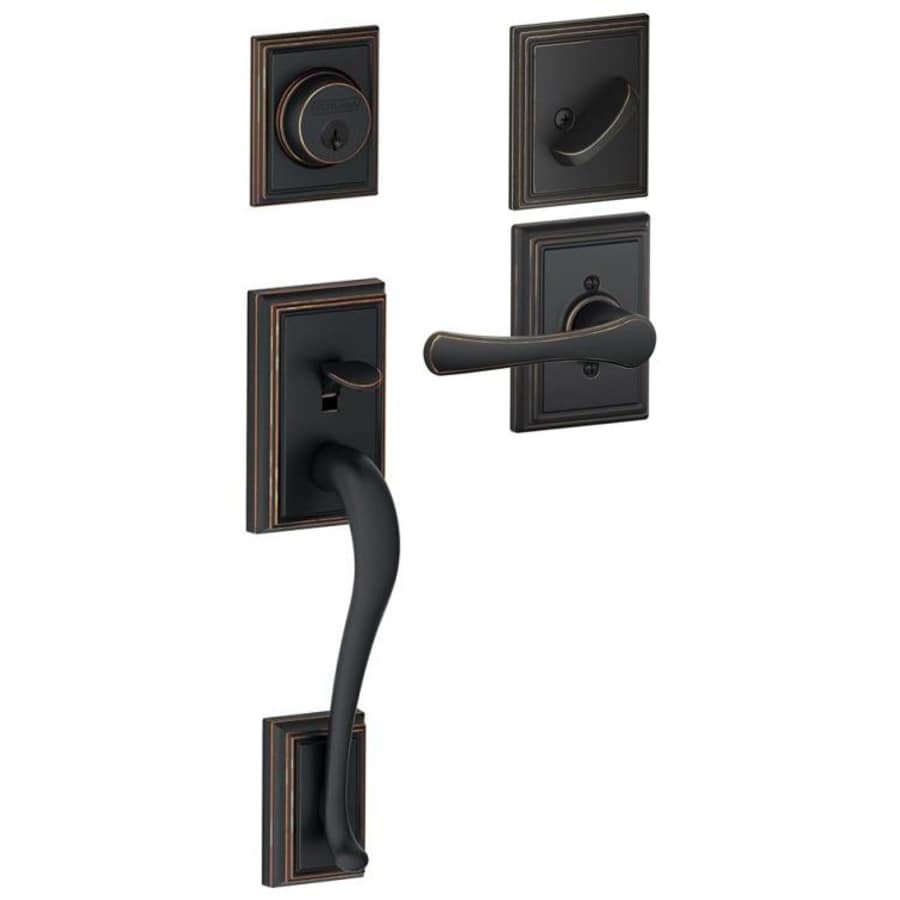

Keyed Entry (Single Cylinder) Function: This single cylinder handleset is keyed on the exterior with an associated locking mechanism on the inside that can quickly and easily lock or unlock the deadbolt latch. The exterior handle has a thumb plate that depresses to disengage the door latch and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Features:
Exceeds criteria for BHMA Grade 1 certification
Durable construction ensuring lasting use
Installs on standard door preparations
Schlage offers a limited lifetime mechanical and finish warranty
Adjustable throughbolt allows the bottom bolt to slide up and down for simple installation
Complies with standards of the Americans with Disabilities Act (ADA)
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″, 7/8″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Latch Faceplate: Round Corner, Square Corner, and Drive-In
Cylinder: 5 Pin Schlage C
Material: Zinc
Grip Center to Center: 8-3/8″, 9-7/8″
Overall Height: 18-1/8″
Handle Height: 3-3/8″
Handle Projection: 3-3/16″
Trim Height: 12-7/16″
Trim Width: 3″
Interior Trim Height: 4″
Interior Trim Width: 2-3/4″
Interior Handle Length: 4-1/4″
Interior Handle Projection: 2-1/4″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Addison Collection
Specifications
| Material | Zinc |
| Thermostat | Traditional, Transitional |
| Cylinder | 5 Pin Schlage C |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Handshower | Left, Reversible, Right |
| Handle Style | Grip, Lever |
| Keyway | C |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Lock Style | Single Point |
| Mounting | Sectional |
| Concealed Screws | No |
| Shape | Straight |
| Handle Material | Metal |
| Adjustable Throughbolt | Yes |
| Interconnected | No |
| Interior Handle Style | Lever |
| Panic Proof | No |
| Handle Design | Addison |
| Trim Design | Addison |
| Approved for Commercial Use | No |
| Collection | Addison, Avila |
| Manufacturer Warranty | Limited Lifetime Finish, Limited Lifetime Mechanical |
| BHMA Certification | Grade 1, Grade 2 |
| Series | F-Series |
| ANSI Certification | A156.2, A156.5 |
| Certifications | ANSI, UL |
| ADA | Yes |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4", 1-3/8", 1-5/8" |
| Edge Bore | 1", 7/8" |
| Grip Center to Center | 8.375, 9.875 in. |
| Handle Projection | 3.1875 in. |
| Interior Handle Length | 4.25 in. |
| Trim Height | 12.4375 in. |
| Product Weight | 4.5 lbs. |
| Center to Center | 5.5 in. |
| Trim Width | 3 in. |
| Overflow Height | 18.125 in. |
| Interior Trim Height | 4 in. |
| Interior Trim Width | 2.75 in. |
| Interior Handle Projection | 2.25 in. |
| Cylinder Included | Yes |
| Interior Included | Yes |
| 28 Degree Latch | No |
| Color | Aged Bronze, Antique Brass, Bright Chrome, Satin Nickel |
