Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

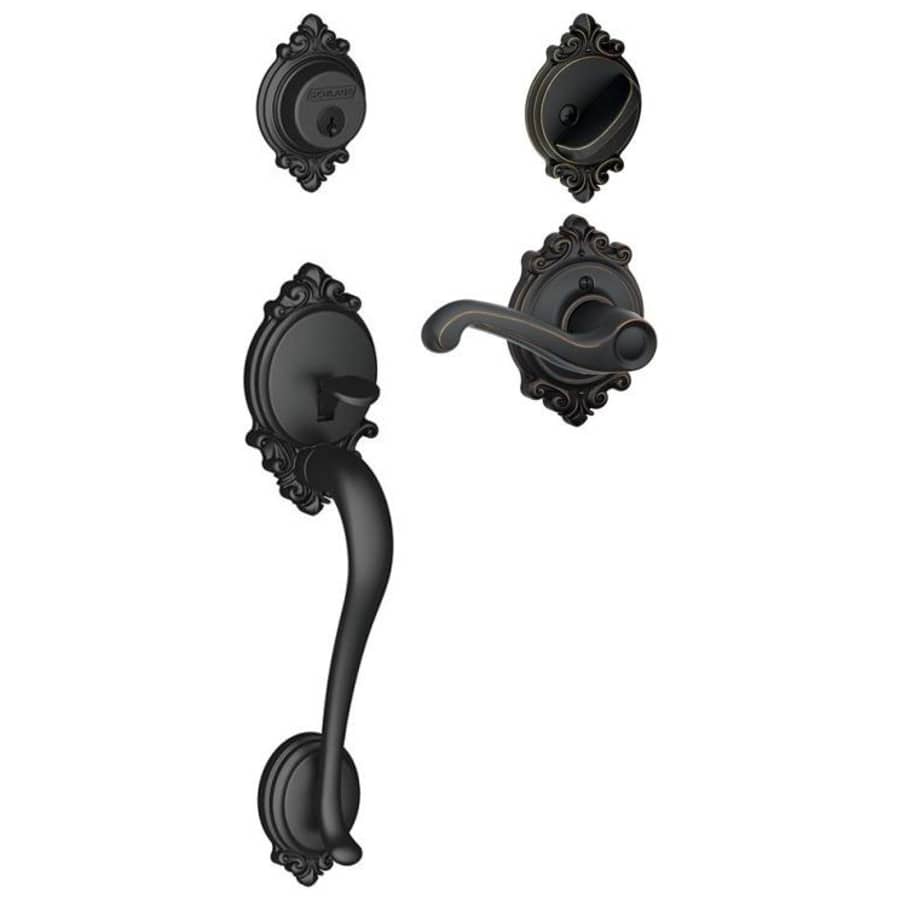

Keyed Entry (Single Cylinder) Function: This single cylinder handleset is keyed on the exterior with an associated locking mechanism on the inside that can quickly and easily lock or unlock the deadbolt latch. The exterior handle has a thumb plate that depresses to disengage the door latch and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Features:
Exceeds criteria for BHMA Grade 1 certification
Durable construction ensuring lasting use
Installs on standard door preparations
Schlage offers a limited lifetime mechanical and finish warranty
Adjustable throughbolt allows the bottom bolt to slide up and down for simple installation
Complies with standards of the Americans with Disabilities Act (ADA)
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″, 7/8″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Left
Latch Faceplate: Round Corner, Square Corner, and Drive-In
Cylinder: 5 Pin Schlage C
Material: Zinc
Grip Center to Center: 8-3/8″, 9-7/8″
Overall Height: 18-7/16″
Handle Height: 8-3/8″
Trim Height: 13-3/16″
Trim Width: 2-15/16″
Interior Trim Height: 4-1/4″
Interior Trim Width: 3″
Interior Handle Length: 4″
Interior Handle Projection: 2-1/4″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Brookshire Collection
Specifications
| Material | Zinc |
| Thermostat | Traditional, Vintage |
| Handle Style | Grip, Lever |
| Handle Material | Metal |
| Concealed Screws | No |
| Shape | Scroll |
| Keyway | C |
| Handshower | Left |
| Cylinder | 5 Pin Schlage C |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Interconnected | No |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Panic Proof | No |
| Mounting | Sectional |
| Adjustable Throughbolt | Yes |
| Handle Design | Brookshire |
| Interior Handle Style | Lever |
| Lock Style | Single Point |
| Trim Design | Brookshire |
| Collection | Brookshire, Flair |
| ADA | Yes |
| Certifications | ANSI, UL |
| Manufacturer Warranty | Limited Lifetime Finish, Limited Lifetime Mechanical |
| Approved for Commercial Use | No |
| Series | F-Series |
| ANSI Certification | A156.2, A156.5 |
| BHMA Certification | Grade 1, Grade 2 |
| Product Weight | 4.5 lbs. |
| Center to Center | 5.5 in. |
| Door Thickness | 1-3/4", 1-3/8", 1-5/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1", 7/8" |
| Trim Height | 13.1875 in. |
| Trim Width | 2.9375 in. |
| Overflow Height | 18.4375 in. |
| Handle Height | 8.375 in. |
| Grip Center to Center | 8.375, 9.875 in. |
| Interior Handle Length | 4 in. |
| Interior Trim Height | 4.25 in. |
| Interior Trim Width | 3 in. |
| Interior Handle Projection | 2.25 in. |
| 28 Degree Latch | No |
| Interior Included | Yes |
| Cylinder Included | Yes |
| Color | Aged Bronze, Antique Brass, Satin Nickel |
| Color Tone | Brass Tones, Bronze Tones, Nickel Tones |
