Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

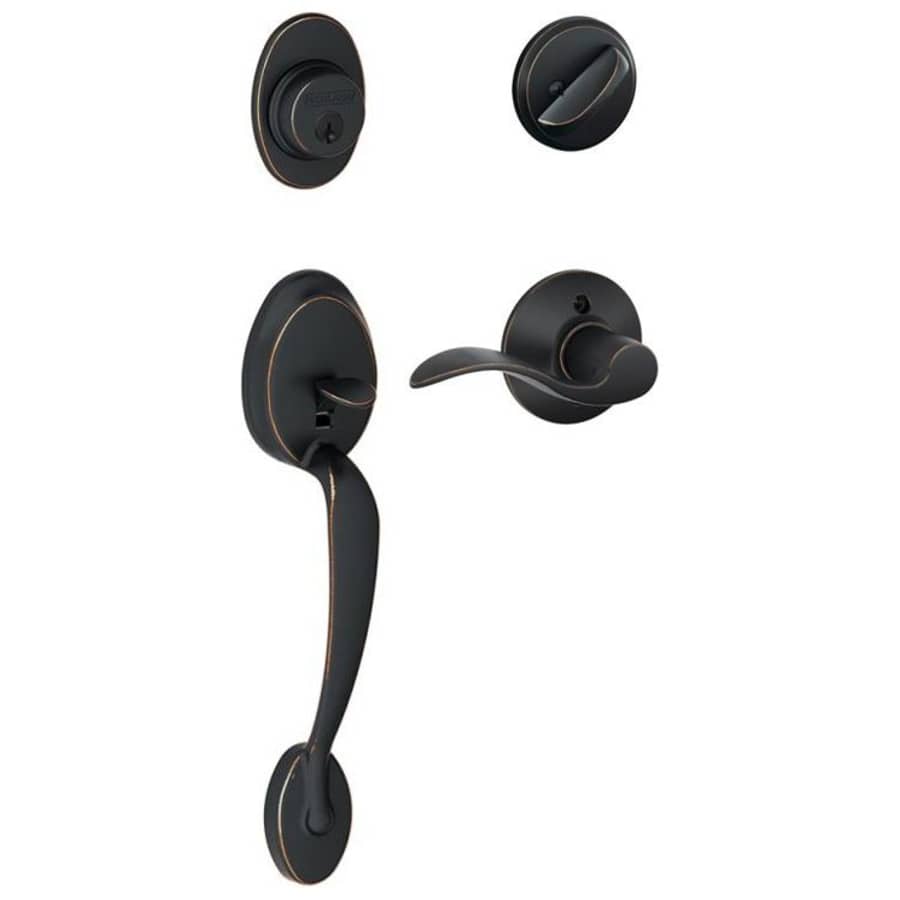

Keyed Entry (Single Cylinder) Function: This single cylinder handleset is keyed on the exterior with an associated locking mechanism on the inside that can quickly and easily lock or unlock the deadbolt latch. The exterior handle has a thumb plate that depresses to disengage the door latch and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Features:
Exceeds criteria for BHMA Grade 1 certification
Durable construction ensuring lasting use
Installs on standard door preparations
Schlage offers a limited lifetime mechanical and finish warranty
Adjustable throughbolt allows the bottom bolt to slide up and down for simple installation
Complies with standards of the Americans with Disabilities Act (ADA)
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″, 7/8″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Right
Latch Faceplate: Round Corner, Square Corner, and Drive-In
Cylinder: 5 Pin Schlage C
Material: Zinc
Grip Center to Center: 8-3/8″, 9-7/8″
Overall Height: 18-1/16″
Handle Height: 8-3/8″
Handle Projection: 2-5/16″
Trim Height: 12-5/8″
Trim Width: 2-15/16″
Interior Trim Height: 2-3/4″
Interior Trim Width: 2-3/4″
Interior Handle Length: 4-1/8″
Interior Handle Projection: 2-1/4″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Plymouth Collection
Specifications
| Door Thickness | 1-3/4", 1-3/8", 1-5/8" |
| Handle Projection | 2.3125 in. |
| Trim Height | 12.625 in. |
| Trim Width | 2.9375 in. |
| Product Weight | 4.5 lbs. |
| Center to Center | 5.5 in. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1", 7/8" |
| Grip Center to Center | 8.375, 9.875 in. |
| Interior Handle Length | 4.125 in. |
| Overflow Height | 18.0625 in. |
| Interior Trim Height | 2.75 in. |
| Interior Trim Width | 2.75 in. |
| Interior Handle Projection | 2.25 in. |
| Concealed Screws | No |
| Function | Keyed Entry |
| Handshower | Right |
| Handle Material | Metal |
| Material | Zinc |
| Thermostat | Traditional, Transitional |
| Handle Style | Grip, Lever |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Trim Design | Plymouth |
| Shape | Wave |
| Adjustable Throughbolt | Yes |
| Interconnected | No |
| Mounting | Sectional |
| Cylinder Type | Single Cylinder |
| Panic Proof | No |
| Cylinder | 5 Pin Schlage C |
| Keyway | C |
| Lock Style | Single Point |
| Interior Handle Style | Lever |
| Handle Design | Plymouth |
| ADA | Yes |
| Approved for Commercial Use | No |
| Collection | Accent, Plymouth |
| Manufacturer Warranty | Limited Lifetime Finish, Limited Lifetime Mechanical |
| Series | F-Series |
| Certifications | ANSI, UL |
| ANSI Certification | A156.2, A156.5 |
| BHMA Certification | Grade 1, Grade 2 |
| 28 Degree Latch | No |
| Interior Included | Yes |
| Cylinder Included | Yes |
| Color | Aged Bronze, Antique Brass, Antique Pewter, Bright Chrome, Polished Brass, Satin Chrome, Matte Black, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
