Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

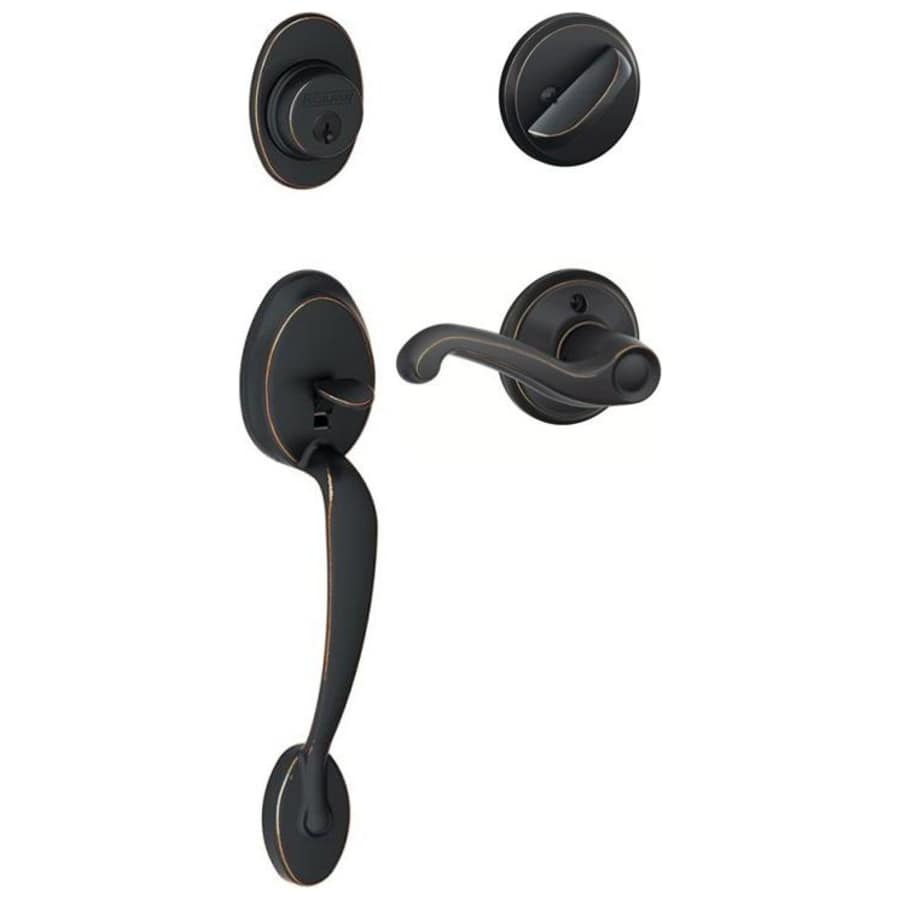

Keyed Entry (Single Cylinder) Function: This single cylinder handleset is keyed on the exterior with an associated locking mechanism on the inside that can quickly and easily lock or unlock the deadbolt latch. The exterior handle has a thumb plate that depresses to disengage the door latch and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Features:
Exceeds criteria for BHMA Grade 1 certification
Durable construction ensuring lasting use
Installs on standard door preparations
Schlage offers a limited lifetime mechanical and finish warranty
Adjustable throughbolt allows the bottom bolt to slide up and down for simple installation
Complies with standards of the Americans with Disabilities Act (ADA)
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″, 7/8″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Right
Latch Faceplate: Round Corner, Square Corner, and Drive-In
Cylinder: 5 Pin Schlage C
Material: Zinc
Grip Center to Center: 8-3/8″, 9-7/8″
Overall Height: 18-1/16″
Handle Height: 8-3/8″
Handle Projection: 2-5/16″
Trim Height: 12-5/8″
Trim Width: 2-15/16″
Interior Trim Height: 2-3/4″
Interior Trim Width: 2-3/4″
Interior Handle Length: 4″
Interior Handle Projection: 2-1/4″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Plymouth Collection
Specifications
| Material | Zinc |
| Thermostat | Traditional, Transitional |
| Handle Material | Metal |
| Handle Style | Grip, Lever |
| Concealed Screws | No |
| Function | Keyed Entry |
| Handshower | Right |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Mounting | Sectional |
| Adjustable Throughbolt | Yes |
| Cylinder Type | Single Cylinder |
| Handle Design | Plymouth |
| Interconnected | No |
| Interior Handle Style | Lever |
| Keyway | C |
| Lock Style | Single Point |
| Shape | Scroll |
| Panic Proof | No |
| Trim Design | Plymouth |
| Cylinder | 5 Pin Schlage C |
| Manufacturer Warranty | Limited Lifetime Finish, Limited Lifetime Mechanical |
| ADA | Yes |
| Approved for Commercial Use | No |
| Collection | Flair, Plymouth |
| Certifications | ANSI, UL |
| Series | F-Series |
| ANSI Certification | A156.2, A156.5 |
| BHMA Certification | Grade 1, Grade 2 |
| Product Weight | 4.5 lbs. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4", 1-3/8", 1-5/8" |
| Edge Bore | 1", 7/8" |
| Handle Projection | 2.3125 in. |
| Trim Height | 12.625 in. |
| Trim Width | 2.9375 in. |
| Center to Center | 5.5 in. |
| Grip Center to Center | 8.375, 9.875 in. |
| Overflow Height | 18.0625 in. |
| Interior Handle Length | 4 in. |
| Interior Trim Height | 2.75 in. |
| Interior Trim Width | 2.75 in. |
| Interior Handle Projection | 2.25 in. |
| Interior Included | Yes |
| 28 Degree Latch | No |
| Cylinder Included | Yes |
| Color | Aged Bronze, Antique Brass, Antique Pewter, Bright Chrome, Polished Brass, Satin Chrome, Satin Nickel |
