Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

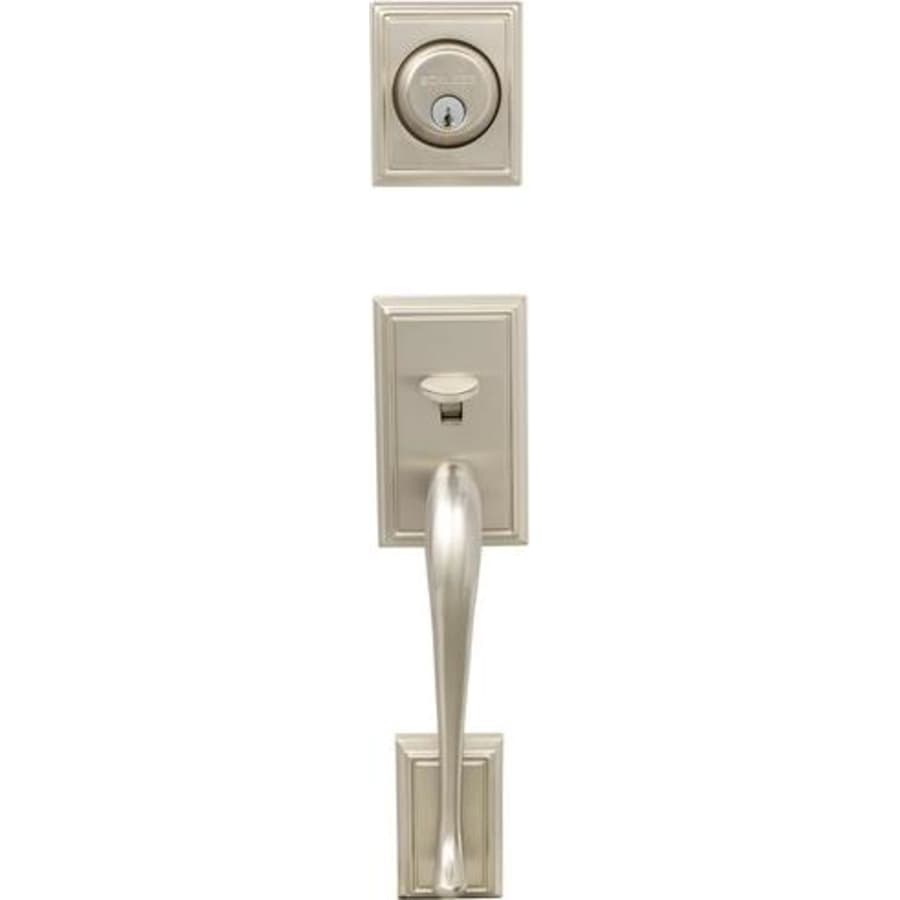

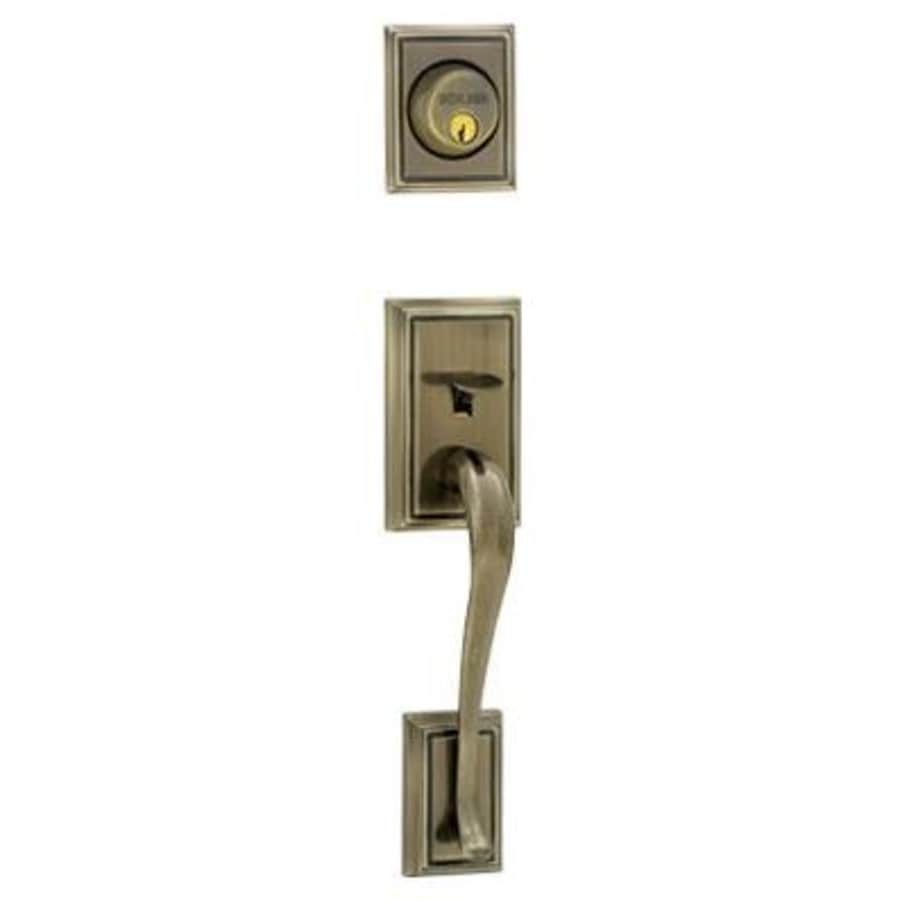

Schlage F62-ADD-ORB Double Cylinder Entrance Handleset with Interior Orbit Knob from the Addison Collection
Addison double cylinder handle set with Orbit Interior Knob
The deadbolt is thrown or retracted by a key from either side.
Door latch is retracted by a thumb piece from the outside or by the inside lever
Bolt automatically deadlocks when it is fully thrown.
Installation should be in accordance with existing codes only, to ensure life safety emergency egress.
For Right or Left handed applications
Solid Brass Exterior Trim
Wrought Brass Interior Trim
Lifetime Limited Mechanical and Finish Warranty

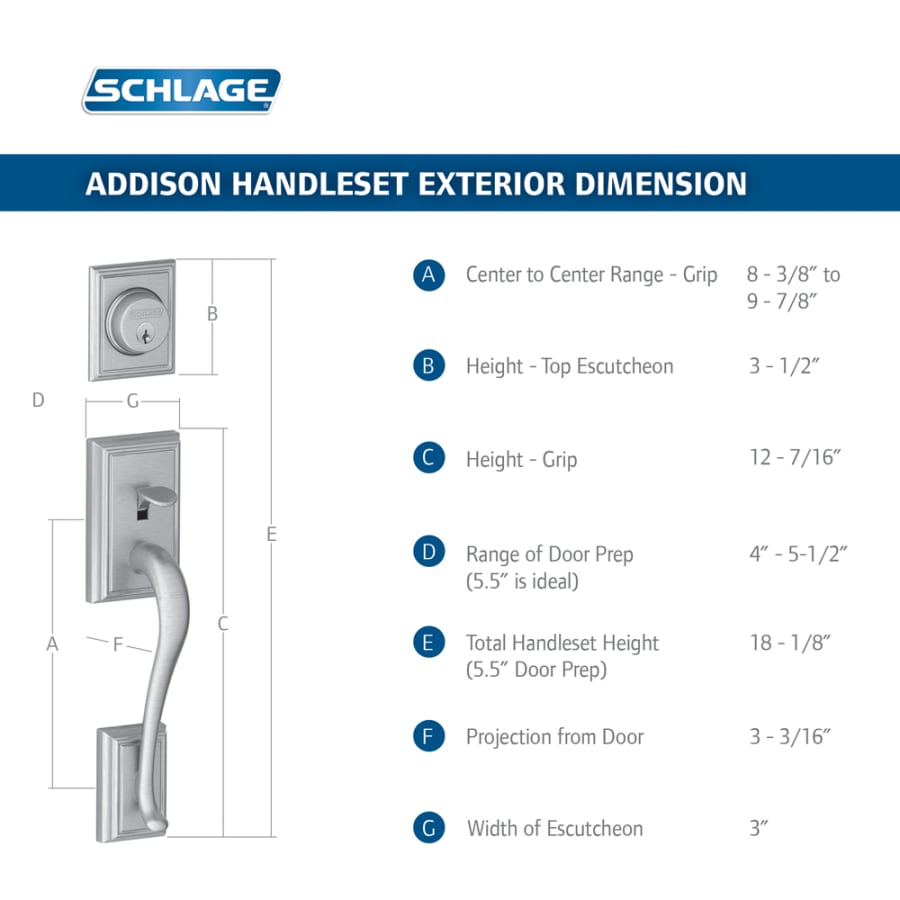

Exterior Handleset Height: 12-7/16″without the deadbolt
Exterior Handle Projection: 3-3/16″
Interior Knob Diameter: 2-3/16″
Interior Rose Diameter: 2-3/4″
Interior Knob Projection: 2-5/16″
Faceplates (Part 12-326): Supplied with 1/4″ Round Corner, Square Corner and Drive-In Faceplates
Strike Plates (Part 10-269): Supplied with a Round Corner Deadbolt Strike (10-116), Square Corner Full Lip Strike Plate (10-026) and Round Corner Full Lip Strike Plate (10-027) with Dimensions of 2-1/4″ x 1-5/8″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Addison Collection
Specifications
| Approved for Commercial Use | No |
| Collection | Addison |
| Series | F-Series |
| ADA | No |
| ANSI Certification | A156.5 |
| Certifications | ANSI |

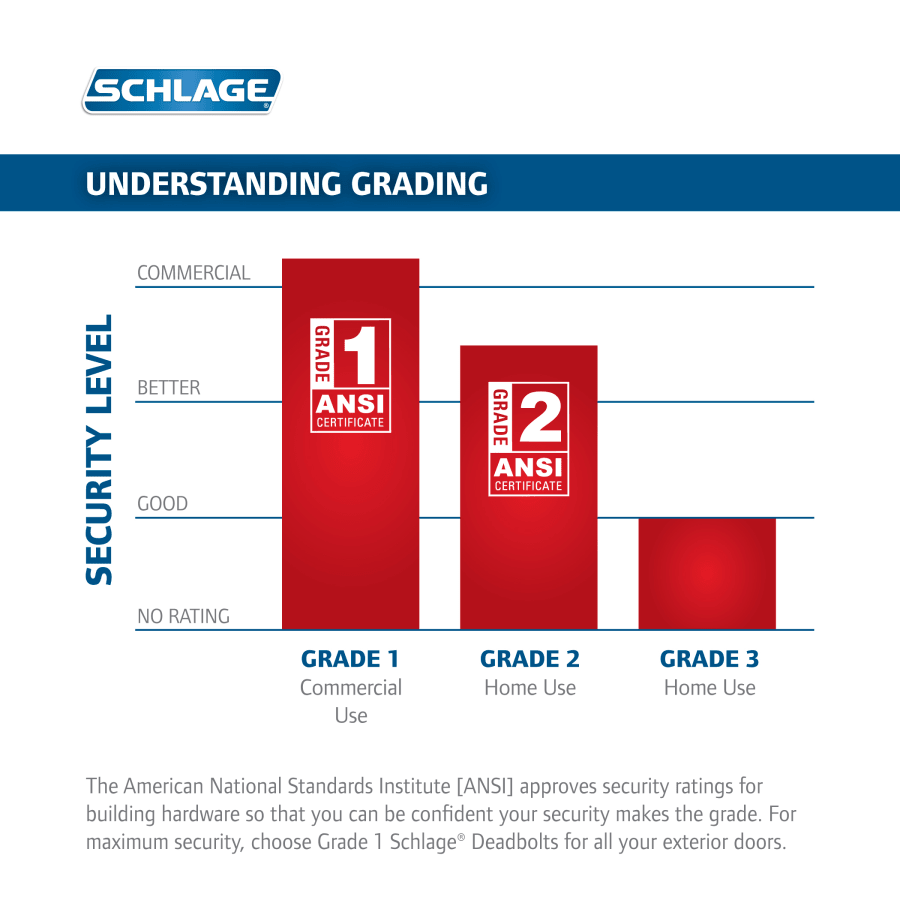

| BHMA Certification | Grade 2 |
| Thermostat | Modern |
| Style | Contemporary/Modern |
| Handle Style | Grip |
| Function | Keyed Entry |
| Keyway | C |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Handshower | Left, Reversible, Right |
| Shape | Round |
| Handle Material | Metal |
| Cylinder Type | Double Cylinder |
| Cylinder | 5 Pin Schlage C |
| Lock Style | Single Point |
| Mounting | Sectional |
| Trim Design | Addison |
| Handle Design | Addison |
| Interior Handle Style | Knob |

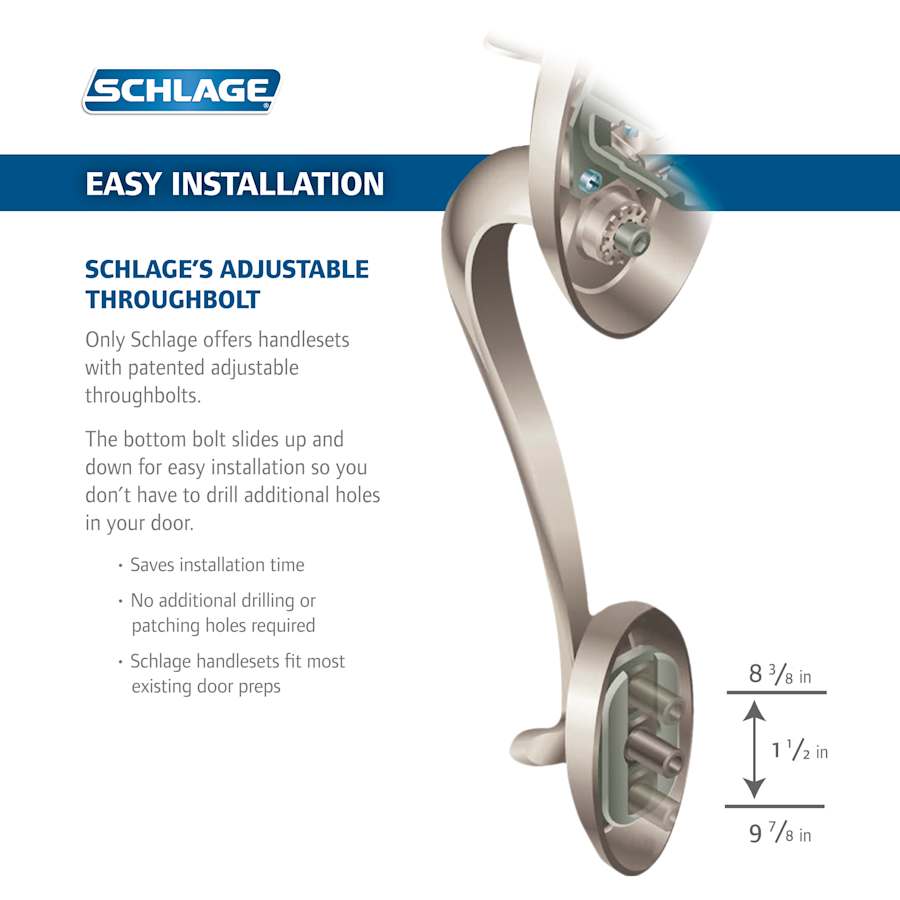

| Adjustable Throughbolt | Yes |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2" |
| Edge Bore | 1" |
| Cross Bore | 2-1/8" |
| Center to Center | 5.5 in. |
| Handle Projection | 3.1875 in. |
| Trim Height | 12.4375 in. |
| Grip Center to Center | 8.5 in. |
| Cylinder Included | Yes |
| Interior Included | Yes |
| Color | Antique Brass, Lifetime Polished Brass, Satin Nickel |
| Color Tone | Brass Tones, Nickel Tones |
