Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

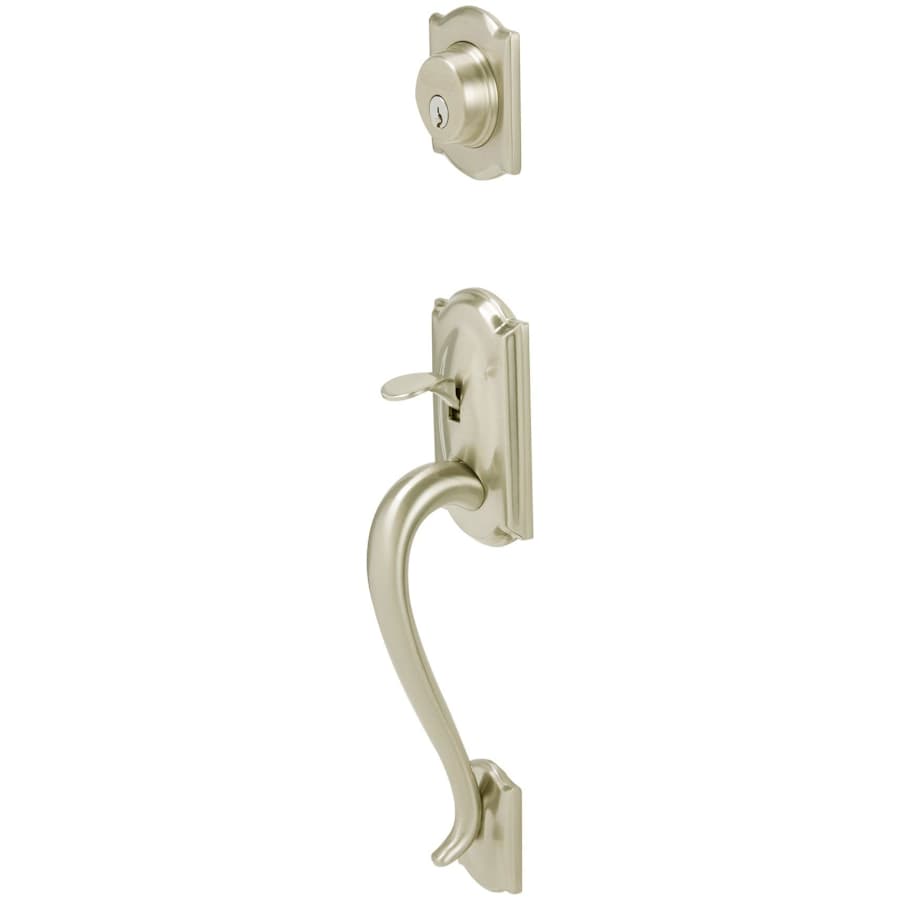

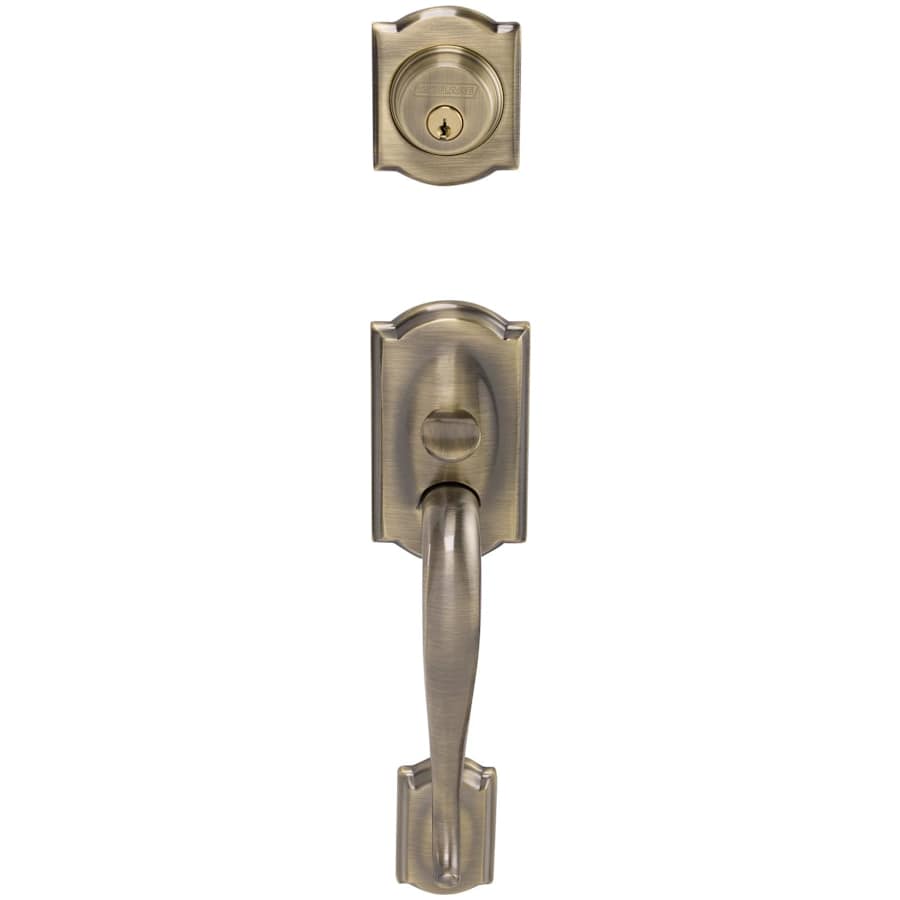

Schlage F62-CAM-JAZ Double Cylinder Entrance Handleset with Interior Jazz Lever from the Camelot Collection
Camelot double cylinder handle set with Jazz Interior Lever
The deadbolt is thrown or retracted by a key from either side.
Door latch is retracted by a thumb piece from the outside or by the inside lever
Bolt automatically deadlocks when it is fully thrown.
Installation should be in accordance with existing codes only, to ensure life safety emergency egress.
For Right or Left handed applications
Solid Brass Exterior Trim
Wrought Brass Interior Trim
Lifetime Limited Mechanical and Finish Warranty

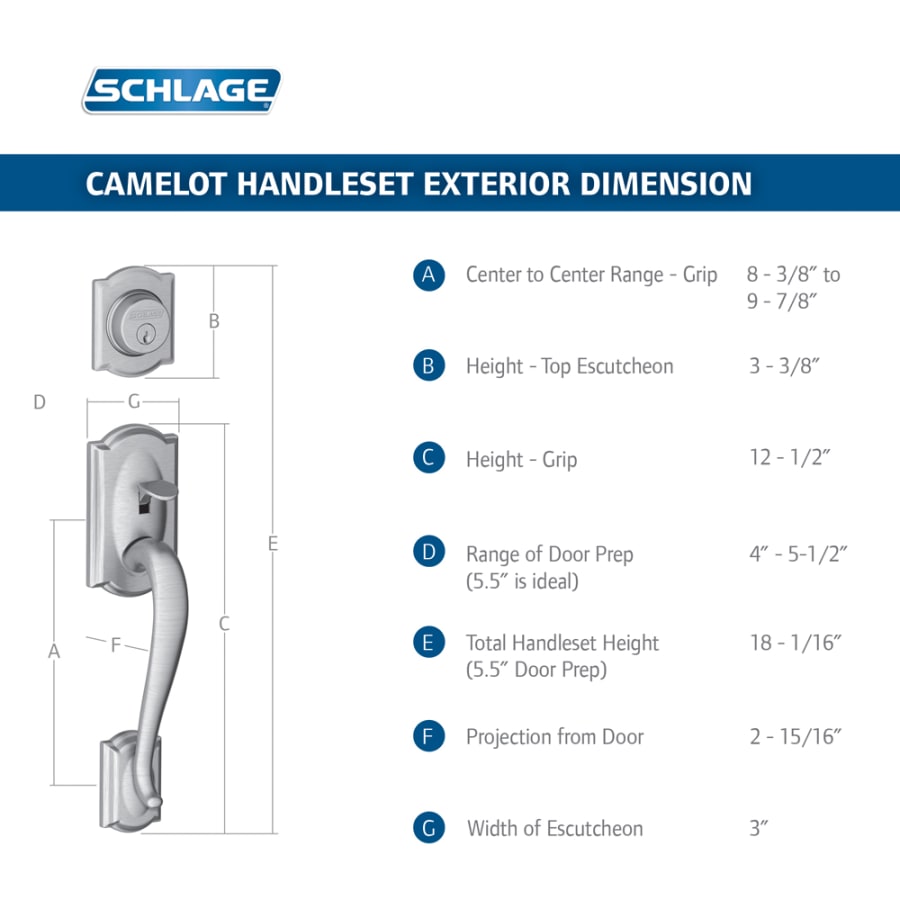

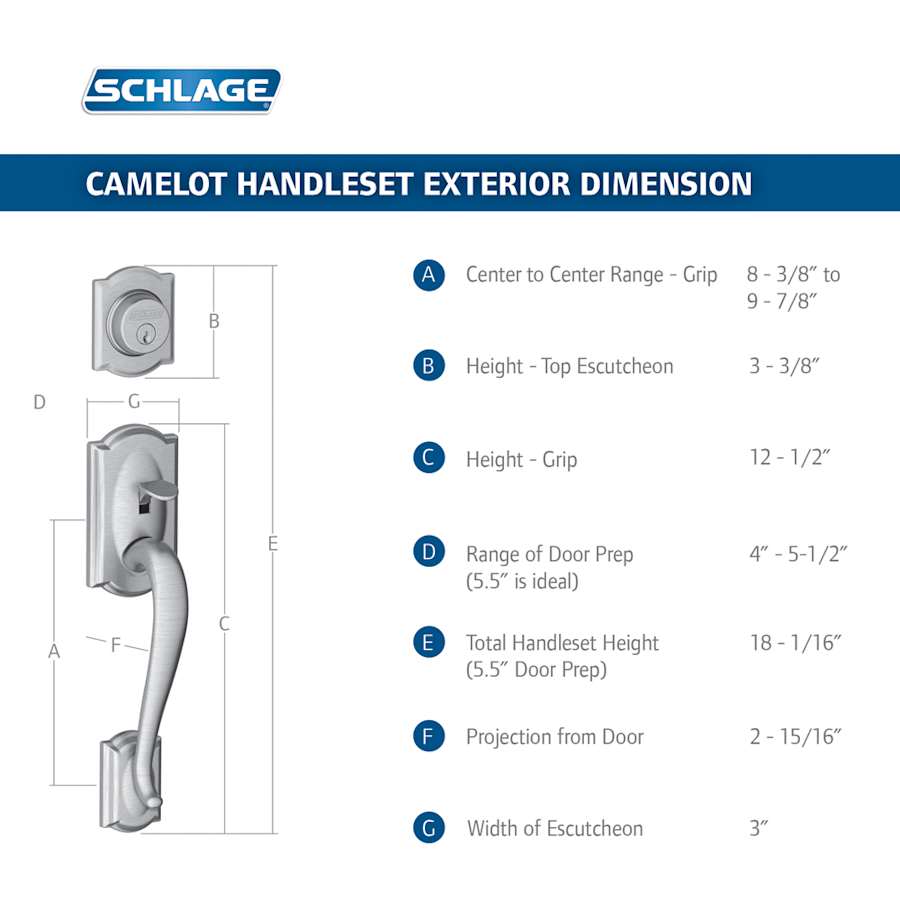

Exterior Handleset Height: 12-7/8″without the deadbolt
Exterior Handle Projection: 2-7/8″
Interior Lever Length: 4-9/32″
Interior Rose Diameter: 2-3/4″
Interior Lever Projection: 2-3/4″
Faceplates (Part 12-326): Supplied with 1/4″ Round Corner, Square Corner and Drive-In Faceplates
Strike Plates (Part 10-269): Supplied with a Round Corner Deadbolt Strike (10-116), Square Corner Full Lip Strike Plate (10-026) and Round Corner Full Lip Strike Plate (10-027) with Dimensions of 2-1/4″ x 1-5/8″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Camelot Collection
Specifications
| Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2" |
| Center to Center | 4, 5.5 in. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.875 in. |
| Trim Height | 12.875 in. |
| Grip Center to Center | 8.5 in. |
| Approved for Commercial Use | No |
| Collection | Camelot |
| Series | F-Series |
| ADA | No |
| ANSI Certification | A156.5 |
| Certifications | ANSI |

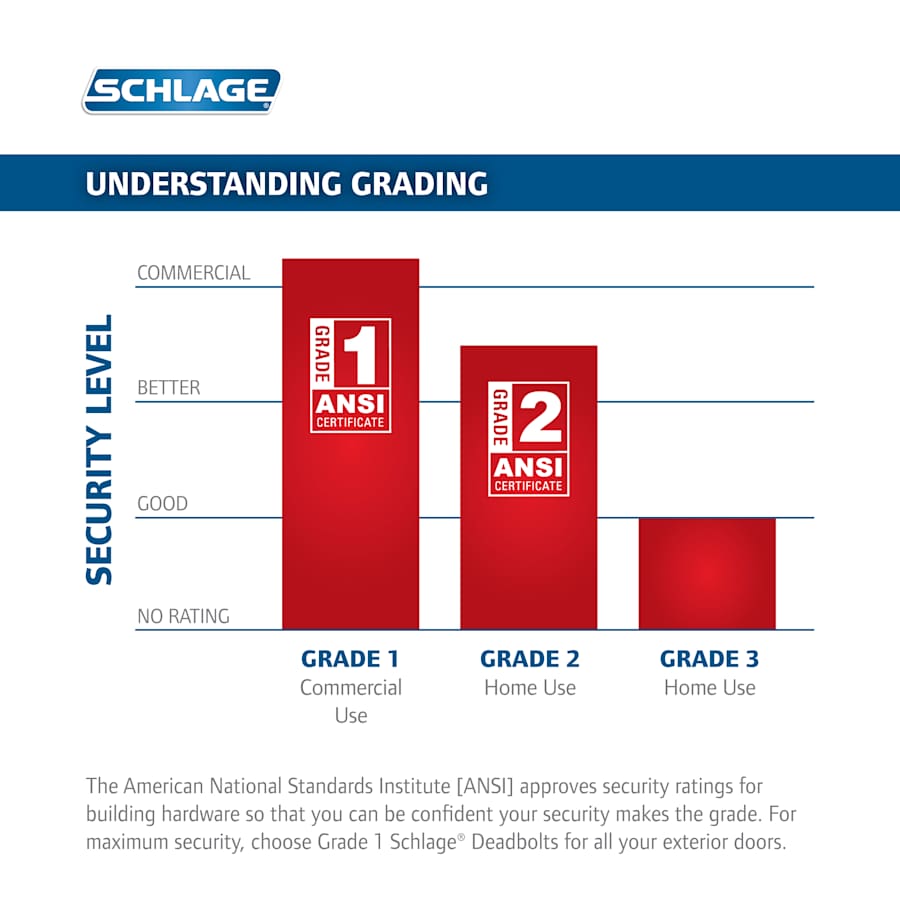

| BHMA Certification | Grade 1 |
| Thermostat | Traditional |
| Handle Style | Grip |
| Handle Material | Metal |
| Function | Keyed Entry |
| Shape | Straight |
| Style | Transitional |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Cylinder | 5 Pin Schlage C |
| Cylinder Type | Double Cylinder |
| Handshower | Left, Reversible, Right |
| Keyway | C |
| Mounting | Sectional |
| Lock Style | Single Point |
| Interior Handle Style | Lever |
| Trim Design | Camelot |
| Handle Design | Camelot |

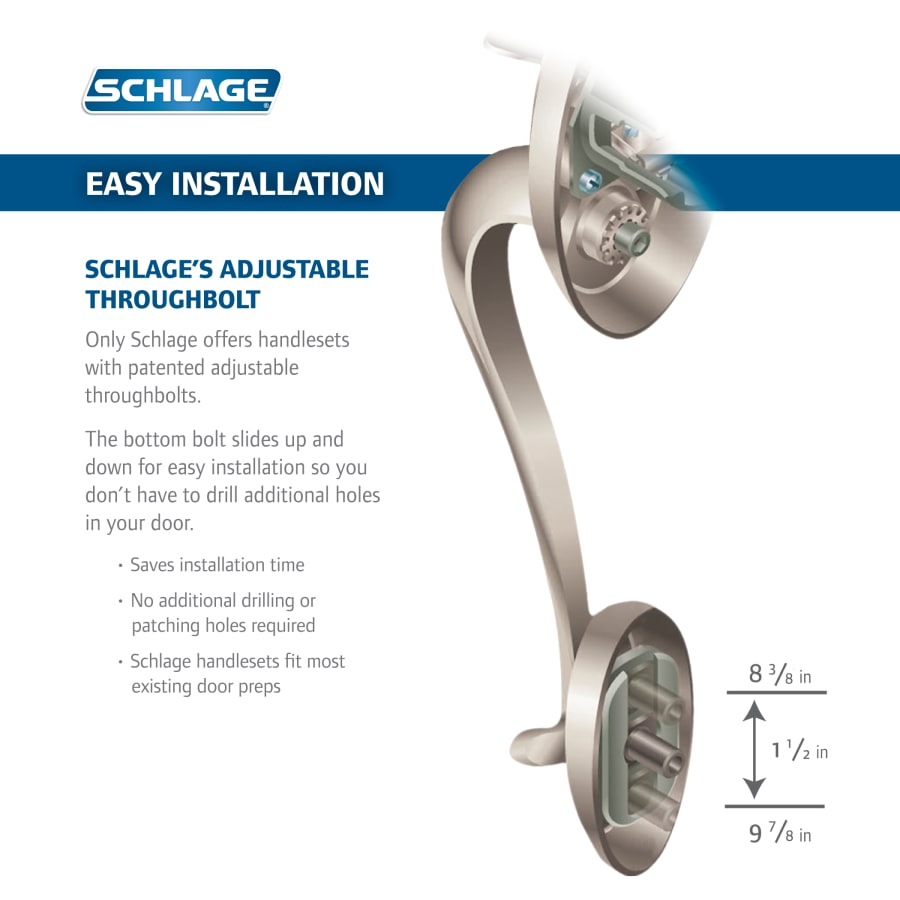

| Adjustable Throughbolt | Yes |
| Cylinder Included | Yes |
| Interior Included | Yes |
| Color | Antique Brass, Lifetime Polished Brass, Polished Brass, Satin Nickel |
| Color Tone | Brass Tones, Nickel Tones |
