Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

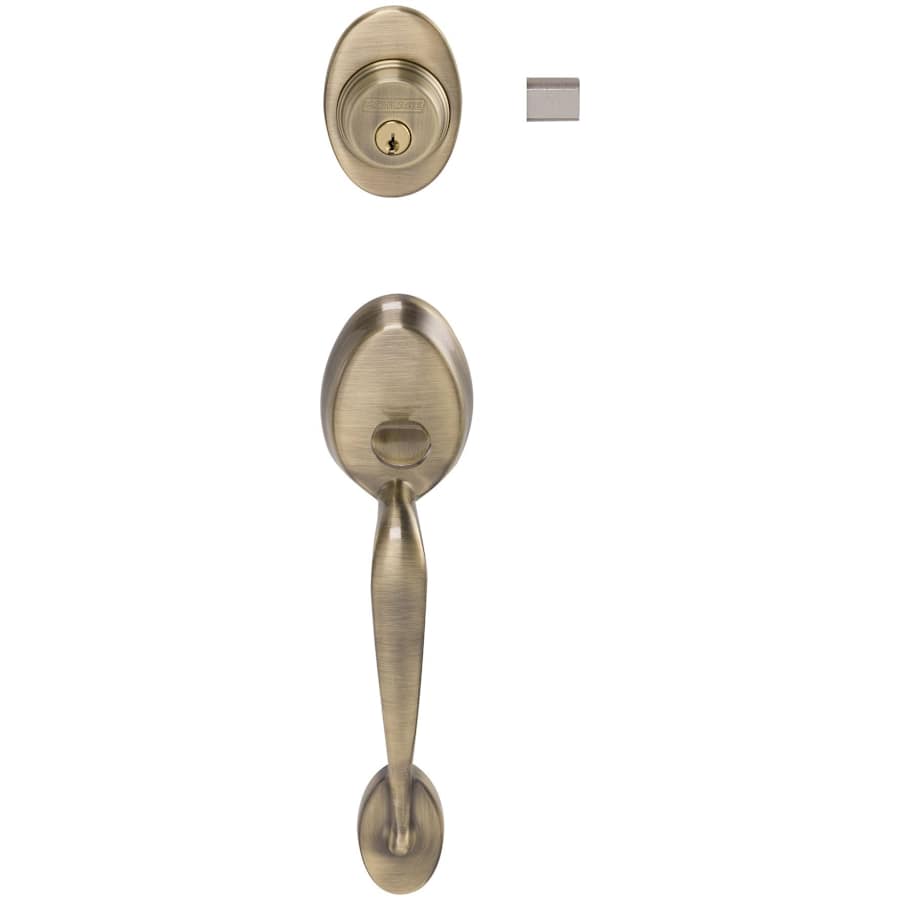

Schlage F62-PLY-ELA Plymouth Double Cylinder Handleset with Elan Interior Lever from the F-Series
The timeless design of the Plymouth works with any style in any room of your home.
Handleset Features
Replaces virtually any existing lock
Easy installation: One-person project; no extra hands needed
ANSI Grade 2 with maximum security features
For Right or Left Handed Applications
Lifetime finish and mechanical guarantee
Designs and finishes to match any home’s architectural style
Deadbolt Features:
Utilizes the new B-Series deadbolt with increased security and easier installation!
1/2″ of bolt left in housing when bolt is thrown for added kick-in resistance.
Integrated anti-pick shield with Snap & Stay™ self adjusting tension provides added security and simplifies installation
1″ Edge bore door preparation required for larger bolt housing
Zinc bolt has hardened steel pin inside that spins in response to sawing attacks which prevents cutting or sawing
Bolt diameter is 10% larger than typical bolts for maximum kick-in resistance
Adjustable backset with the industry’s only helical design that locks into place with no adjusting during installation
Works for both 2-3/8″ and 2-3/4″ backsets.
ADA compliant thumb turn
Faceplates (Part 12-326): Supplied with 1/4″ Round Corner, Square Corner and Drive-In Faceplates
Strike Plates (Part 10-269): Supplied with a Round Corner Deadbolt Strike (10-116), Square Corner Full Lip Strike Plate (10-026) and Round Corner Full Lip Strike Plate (10-027) with Dimensions of 2-1/4″ x 1-5/8″
Note: New interior packs will not work with old exterior packs. New exterior handlesets will not work with old interior packs.
Model Conversions:
Old F358 – New F58
Old F359 – New F59
Old F362 – New F62
Old F392 – New F92
Old F394 – New F94
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Plymouth Collection
Specifications
| Thermostat | Transitional |
| Handshower | Left, Reversible, Right |
| Handle Material | Metal |
| Handle Style | Grip |
| Style | Transitional |
| Shape | Straight |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Cylinder | 5 Pin Schlage C |
| Cylinder Type | Double Cylinder |
| Function | Keyed Entry |
| Keyway | C |
| Lock Style | Single Point |
| Mounting | Sectional |
| Trim Design | Plymouth |
| Interior Handle Style | Lever |
| Handle Design | Plymouth |
| Adjustable Throughbolt | Yes |
| Approved for Commercial Use | No |
| Collection | Plymouth |
| Series | F-Series |
| ANSI Certification | A156.5 |
| Certifications | ANSI |
| ADA | No |
| BHMA Certification | Grade 2 |
| Center to Center | 4, 5.5 in. |
| Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.4375 in. |
| Trim Height | 12.40625 in. |
| Grip Center to Center | 8.5 in. |
| Cylinder Included | Yes |
| Interior Included | Yes |
| Color | Antique Brass, Lifetime Polished Brass, Polished Brass |
| Color Tone | Brass Tones |
