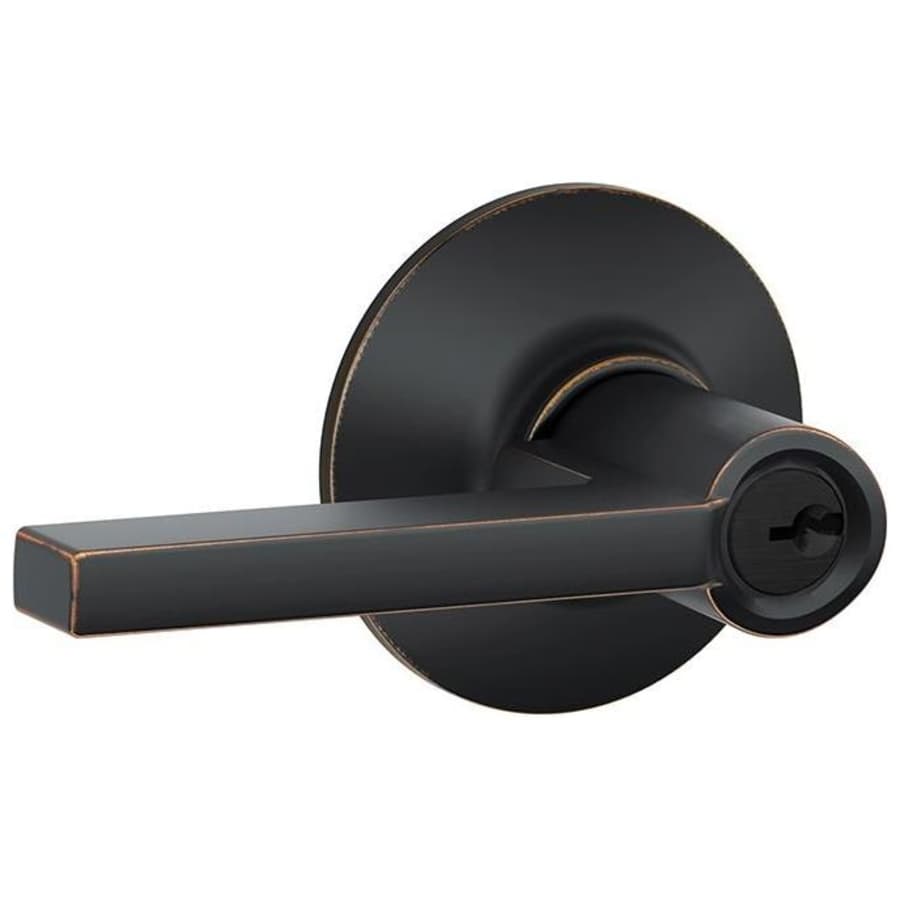

Storeroom Function: Schlage storeroom lever sets feature an outside lever that is always locked while the inside knob is always unlocked and free turning. Entry from exterior is only possible via key.
Features:
Meets BHMA Grade 2 certification security standards
All-metal construction ensures durability along with long-lasting quality
Handing is reversible for either left or right door applications
Easily install into any standard prepared door
Schlage offers a Lifetime Mechanical and Finish Warranty
Americans with Disabilities Act (ADA) compliant
Product Features:
A Lifetime Mechanical and Finish Warranty gives you the peace of mind that this product will be looking good and functioning smoothly for as long as you own it. (Finish warranty does not include Oil Rubbed Bronze because it is a living finish and it is expected to patina over time)
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take just a matter of minutes.
BHMA/ANSI Grade 2 certified which indicates excellent performance across a range of residential applications. This product is built from high-quality materials to give you exceptional security.
These levers are field reversible allowing this leverset to be used for both right and left handed applications with ease and eliminating any chance of getting a wrong handed product.
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 7/8″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Handle Design: Latitude
Trim Design: Plymouth
Product Weight: 1.5 lbs.
Latch Faceplate: Drive-in or Round Corner
Cylinder: 5 Pin Schlage C
Product Variations:
F10-LAT: Passage Lever Set
F170-LAT: Single Dummy Lever
F40-LAT: Privacy Lever Set
F51-LAT: Keyed Entry Lever Set
F80-LAT (This Model): Keyed Entry Lever Set
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Latitude Collection
Specifications
| Door Thickness | 1-3/4", 1-3/8" |
| Backset | 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 7/8" |
| Handle Projection | 2.25 in. |
| Handle Length | 4.5 in. |
| Material | Zinc |
| Thermostat | Modern |
| Handle Material | Metal |
| Function | Storeroom, Keyed Entry |
| Latch Faceplate | Square Corner, Drive-In, Round Corner |
| Concealed Screws | No |
| Cylinder | 5 Pin Schlage C |
| Handshower | Reversible, Left, Right |
| Keyway | C |
| Rosette Shape | Round |
| Panic Proof | Yes |
| Lever Shape | Square, Straight |
| Trim Design | Plymouth |
| Handle Design | Latitude |
| Approved for Commercial Use | No |
| Series | F-Series |
| ADA | Yes |
| ANSI Certification | A156.5 |
| Certifications | ANSI, UL |
| BHMA Certification | Grade 2 |
| Color | Aged Bronze |
| Color Tone | Bronze Tones |
