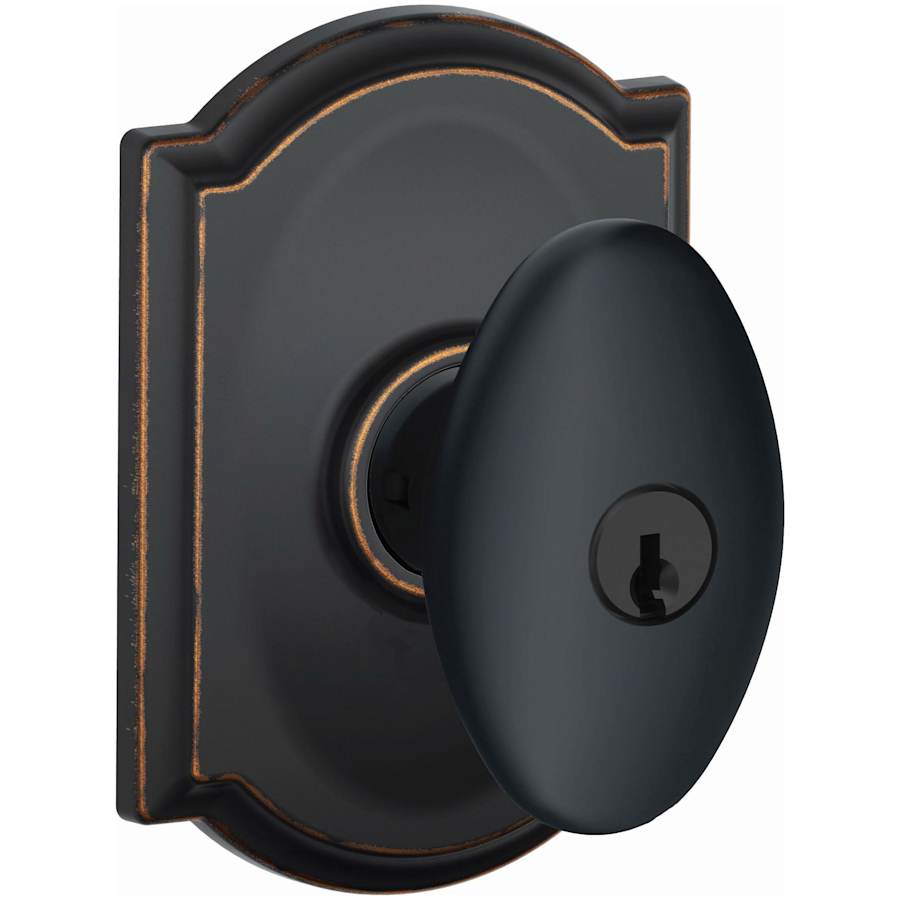

Storeroom Function: Schlage storeroom knob sets feature an outside knob that is always locked while the inside knob is always unlocked and free turning. Entry from exterior is only possible via key.
Product Features:
A Lifetime Mechanical and Finish Warranty gives you the peace of mind that this product will be looking good and functioning smoothly for as long as you own it. (Finish warranty does not include Oil Rubbed Bronze because it is a living finish and it is expected to patina over time)
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take just a matter of minutes.

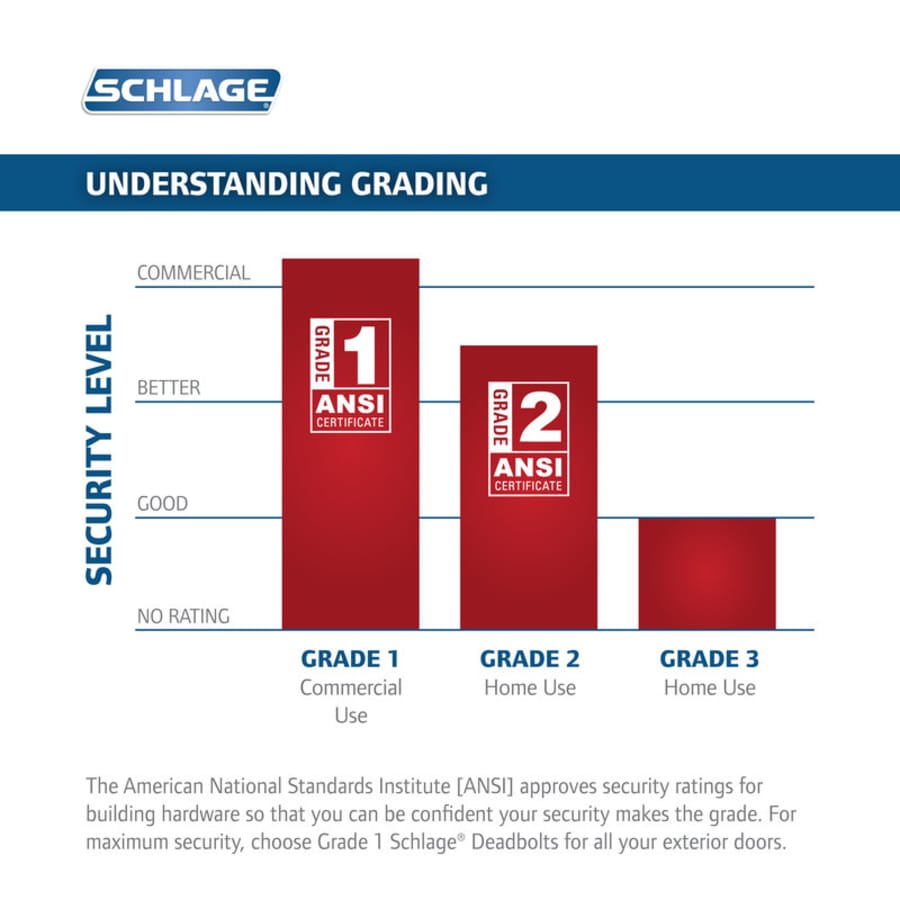

BHMA/ANSI Grade 2 certified which indicates excellent performance across a range of residential applications. This product is built from high-quality materials to give you exceptional security.
Specifications:
Backset: Adjustable to 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 7/8″
Projection: 2-3/8″
Door Thickness: 1-3/8″ – 1-3/4″
Handing: Left, Right, Reversible
Product Weight: 1.55 lbs
Handle Design: Siena
Trim Design: Camelot
Latch Faceplate: Drive-in, Square Corner, Round Corner
Cylinder: 5 Pin Schlage C
Additional Functions:
F10-SIE-CAM: Passage Door Knob Set
F40-SIE-CAM: Privacy Door Knob Set
F51A-SIE-CAM: Panic Proof Keyed Entry Door Knob Set
F80-SIE-CAM (This Model): Storeroom Keyed Entry Door Knob Set
F170-SIE-CAM: Single Dummy Knob
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Camelot Collection
Specifications
| Thermostat | Modern |
| Handle Material | Metal |
| Concealed Screws | No |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Rosette Shape | Arch |
| Function | Keyed Entry, Storeroom |
| Knob Shape | Egg |
| Cylinder | 5 Pin Schlage C |
| Keyway | C |
| Trim Design | Camelot |
| Handle Design | Siena |
| Product Weight | 1.55 lbs. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Edge Bore | 7/8" |
| Trim Height | 4.125 in. |
| Trim Width | 2.75 in. |
| Handle Projection | 2.375 in. |
| Approved for Commercial Use | No |
| Collection | Camelot, Siena |
| Manufacturer Warranty | Lifetime Finish, Limited Lifetime Mechanical |
| ADA | No |
| Certifications | ANSI |
| Series | F-Series |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 2 |
| Color | Aged Bronze |
| Color Tone | Bronze Tones |
