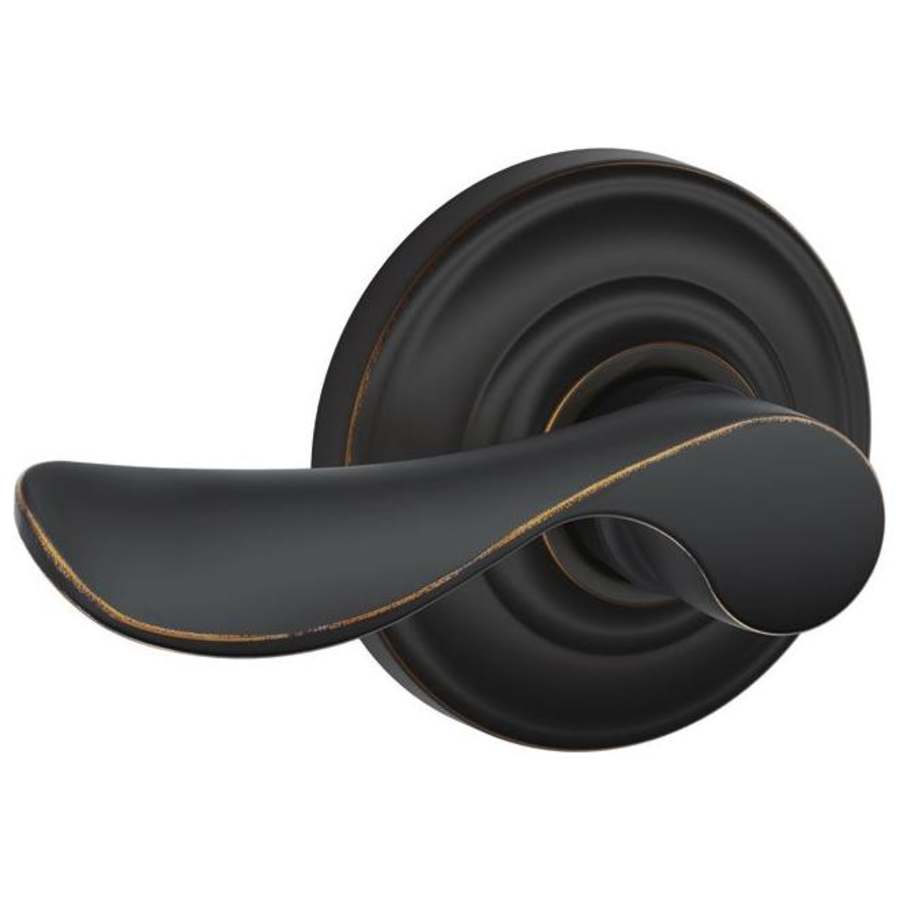

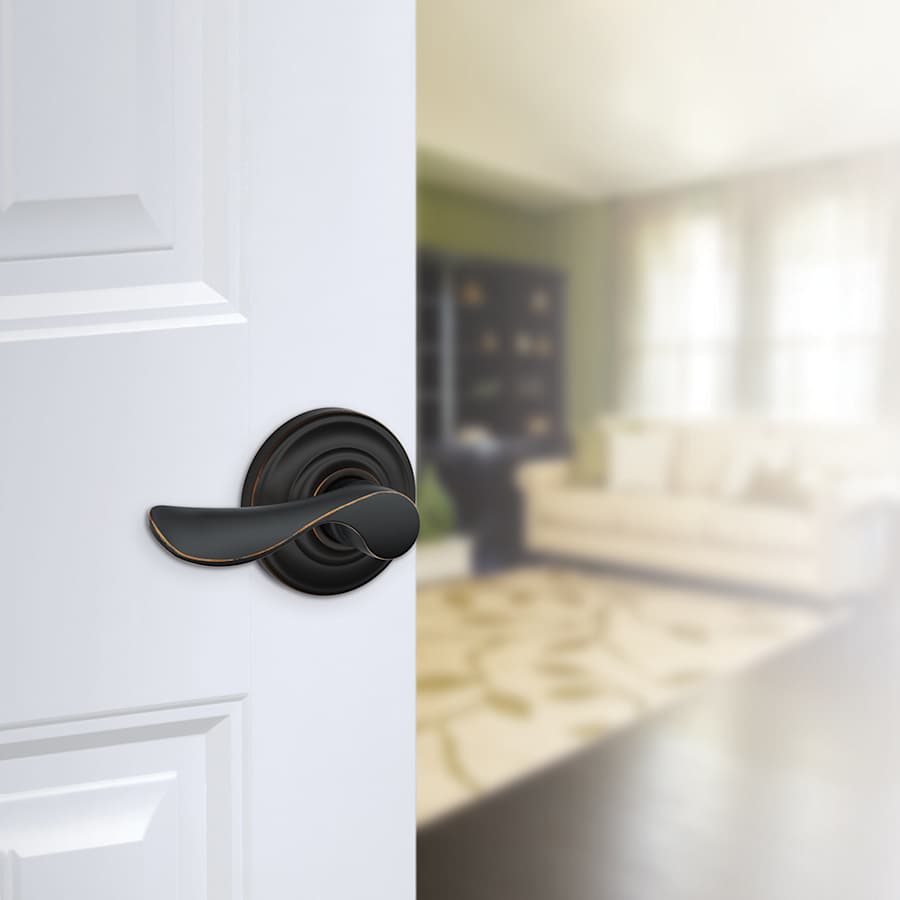

Passage Function: Schlage’s passage door lever sets have no locking function and are free turning on both sides. These levers are perfect for a hallway or closet where a lock isn’t necessary. Passage levers can also be used in conjunction with a deadbolt to secure an entrance or back door.
Product Features:
A Lifetime Mechanical and Finish Warranty gives you the peace of mind that this product will be looking good and functioning smoothly for as long as you own it. (Finish warranty does not include Oil Rubbed Bronze because it is a living finish and it is expected to patina over time)
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take just a matter of minutes.
BHMA/ANSI Grade 2 certified which indicates excellent performance across a range of residential applications. This product is built from high-quality materials to give you exceptional security.
These levers are field reversible allowing this leverset to be used for both right and left handed applications with ease and eliminating any chance of getting a wrong handed product.
Specifications:
Backset: 2-3/4″, 2-3/8″, Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 7/8″
Door Thickness: 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″
Handing: Left, Right, Reversible
Handle Design: Champagne
Trim Design: Andover
Product Weight: 1.5 lbs
Latch Faceplate: Drive-in, Round Corner
Product Variations:
FA10-CHP (This Model): Passage Lever Set
FA170-CHP-LH: Left Handed Single Dummy Lever
FA170-CHP-RH: Right Handed Single Dummy Lever
FA51-CHP: Keyed Entry Lever Set
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Andover Collection
Specifications
| Thermostat | Transitional |
| Handle Material | Metal |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Drive-In, Round Corner |
| Style | Transitional |
| Concealed Screws | Yes |
| Function | Passage |
| Rosette Shape | Round |
| Lever Shape | Designer, Wave |
| Handle Design | Champagne |
| Trim Design | Andover |
| ADA | Yes |
| Approved for Commercial Use | No |
| Collection | Andover, Champagne, Decorative Collection |
| Series | Decorative Collection, F-Series |
| Certifications | ANSI |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 2 |
| Edge Bore | 7/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Color | Aged Bronze, Antique Brass, Antique Pewter, Lifetime Polished Brass, Oil Rubbed Bronze, Polished Brass, Satin Bronze, Satin Chrome, Ultima Polished Brass, Polished Chrome, Satin Nickel |
| Color Tone | Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
