Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

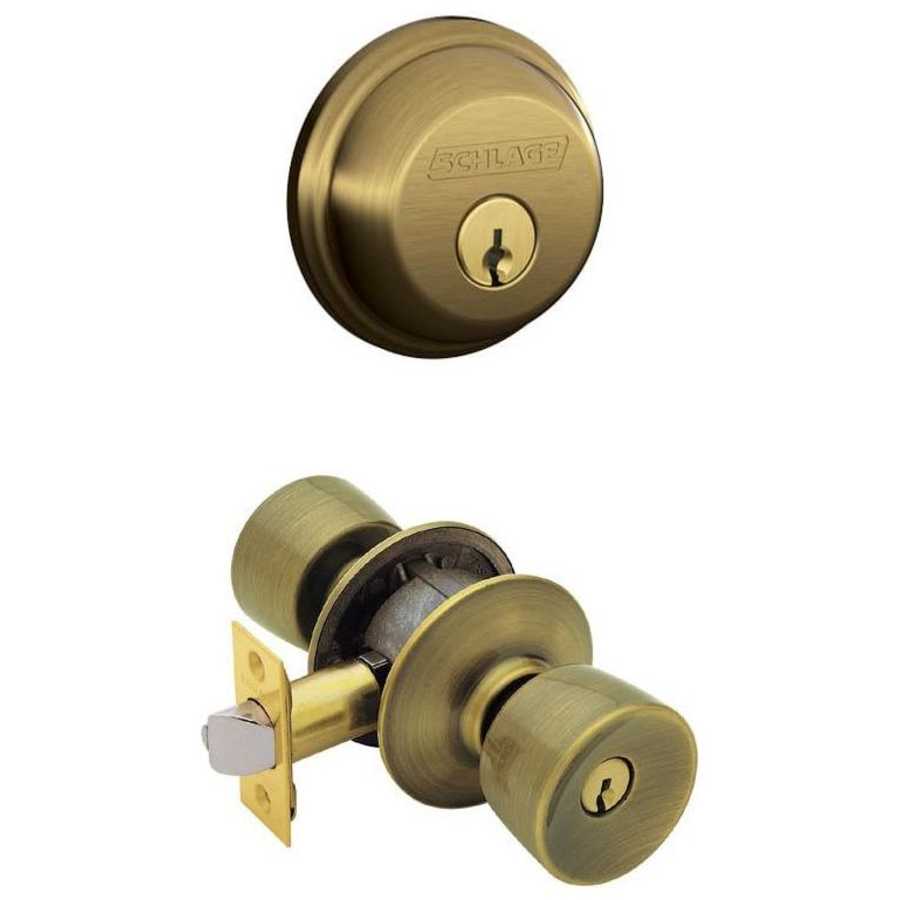

Combo Pack: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key in the deadbolt and can be locked and unlocked from the interior using the thumbturn. This entry set would be ideal for the front entry of a home.
Features:
Exceeds criteria for BHMA Grade 1 for the deadbolt and Grade 2 for the handle
Durable construction ensuring lasting use
Simply installs on doors with 1-3/8″ to 1-3/4″ thickness
Mounting hardware is included
Covered under a limited lifetime mechanical and finish warranty
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 1-1/2″, 2-1/8″
Edge Bore: 1″, 7/8″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Handle Width: 2″
Handle Height: 2″
Handle Projection: 2-9/16″
Product Weight: 3 lbs.
Latch Faceplate: Round Corner, Square Corner or Drive-In
Cylinder: 5 Pin Schlage C
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Bell Collection
Specifications
| Product Weight | 3 lbs. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 1-1/2", 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Edge Bore | 1", 7/8" |
| Handle Projection | 2.5625 in. |
| Handle Height | 2 in. |
| Handle Width | 2 in. |
| Thermostat | Transitional |
| Material | Zinc |
| Concealed Screws | No |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Panic Proof | No |
| Rosette Shape | Round |
| Handle Style | Knob |
| Cylinder | 5 Pin Schlage C |
| Keyway | C |
| Handle Design | Bell |
| Knob Shape | Tulip |
| Handle Material | Metal |
| ADA | No |
| Approved for Commercial Use | No |
| Collection | Bell |
| Manufacturer Warranty | Limited Lifetime Finish, Limited Lifetime Mechanical |
| Certifications | ANSI, UL |
| Fire Rated | Yes |
| ANSI Certification | A156.36 |
| BHMA Certification | Grade 1, Grade 2 |
| Series | B-Series, Decorative Collection, F-Series |
| Cylinder Included | Yes |
| Color | Antique Brass, Lifetime Polished Brass, Polished Brass, Satin Chrome |
| Color Tone | Brass Tones, Silver Tones |
