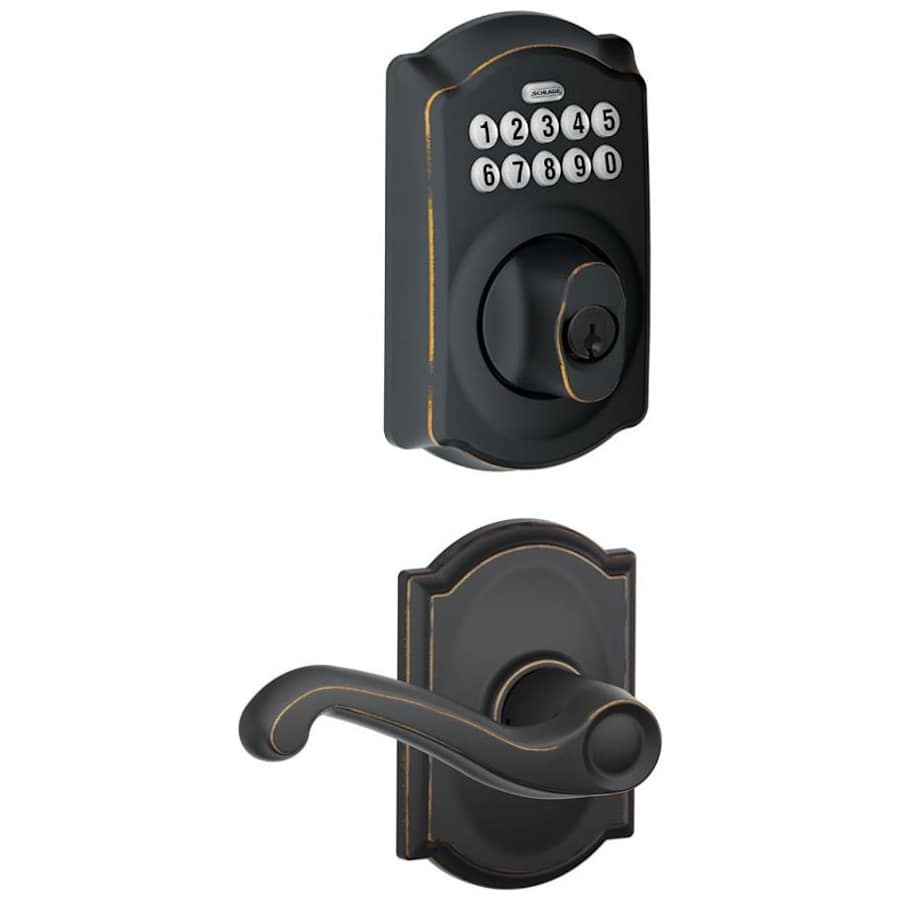

Electronic Keypad Entry: Go keyless with the Keypad Entry paired with a passage handle. Enter a valid user code for entry. Perfect for garage/house doors, store rooms, home office and more.
Features:
Exceeds criteria for ANSI/BHMA Grade 2 certification
Patented turn lock allows you to lock the deadbolt from the outside without a key
Convenience of keyless access and customizable with up to 19 personalized codes to fit your security needs
Buttons illuminate when you press any button from the exterior
Installs with a screwdriver into standard door prep
Batteries last up to three years
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″, 7/8″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Handle Length: 4″
Handle Projection: 2-1/4″
Exterior Deadbolt Trim Height: 5″
Exterior Deadbolt Trim Width: 3″
Interior Deadbolt Trim Height: 8″
Interior Deadbolt Trim Width: 3″
Latch Faceplate: Drive-In, Round Corner, Square Corner
Cylinder: 5 Pin Schlage C
Number of Codes: 19
Battery Type: 4 AA – Included
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Camelot Collection
Specifications
| Material | Zinc |
| Handle Style | Lever |
| Thermostat | Traditional, Transitional |
| Cylinder Type | Single Cylinder |
| Handshower | Left, Reversible, Right |
| Keyway | C |
| Handle Material | Metal |
| Smart Home | No |
| Concealed Screws | No |
| Function | Passage, Keyless Entry, Electronic Keyless Entry |
| Cylinder | 5 Pin Schlage C |
| Battery Quantity | 4 |
| Handle Design | Flair |
| Insulation Type | Keypad |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Lit Keypad | Yes |
| Lock Style | Single Point |
| Number of Codes | 19 |
| Trim Design | Camelot |
| Panic Proof | No |
| Rosette Shape | Arch |
| Lever Shape | Scroll |
| Auto-Lock Capable | No |
| Remote Access | No |
| Temporary Access | No |
| Usage Monitoring | No |
| ADA | Yes |
| Approved for Commercial Use | No |
| Collection | Camelot, Flair |
| Manufacturer Warranty | 3 Year Electronics, Limited Lifetime Finish, Limited Lifetime Mechanical |
| Certifications | ANSI |
| Country Of Origin | Mexico |
| ANSI Certification | A156.36, A156.39, A156.40 |
| Series | F-Series |
| BHMA Certification | Grade 2 |
| Fire Rated | No |
| Product Weight | 4.5 lbs. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1", 7/8" |
| Handle Projection | 2.25 in. |
| Trim Height | 5, 8 in. |
| Trim Width | 3 in. |
| Handle Length | 4 in. |
| Cylinder Included | Yes |
| 28 Degree Latch | No |
| Battery Size | AA |
| Color | Aged Bronze, Antique Brass, Antique Pewter, Lifetime Polished Brass, Satin Nickel |
| Color Tone | Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
