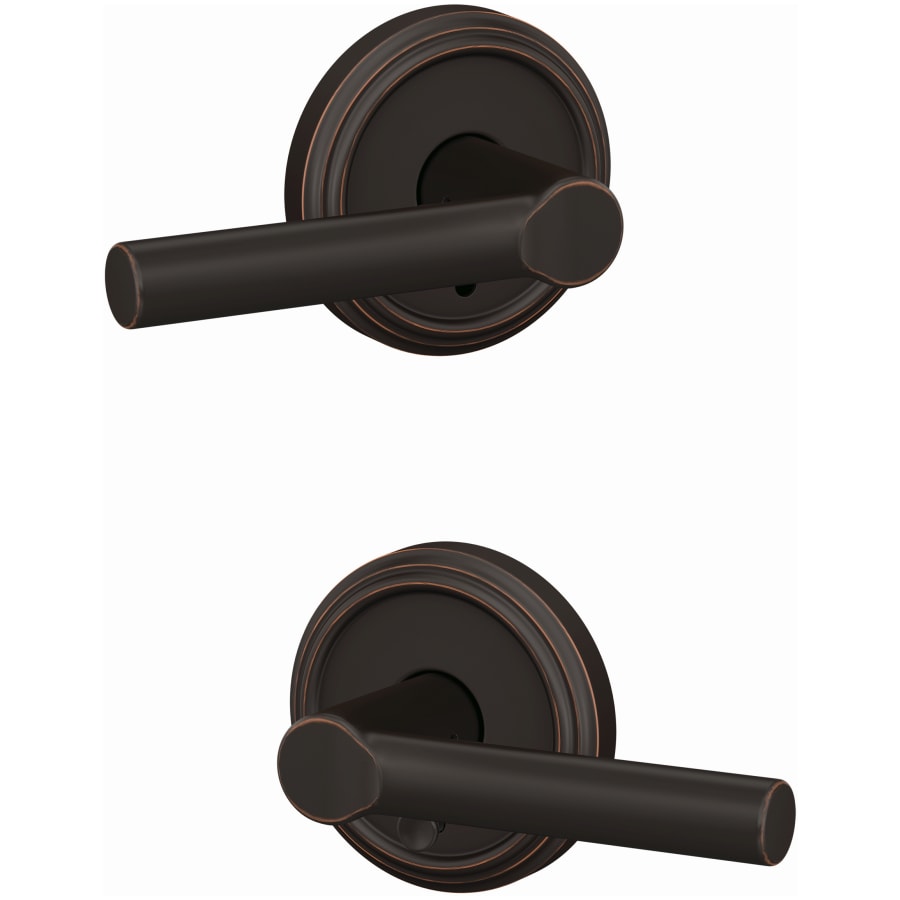

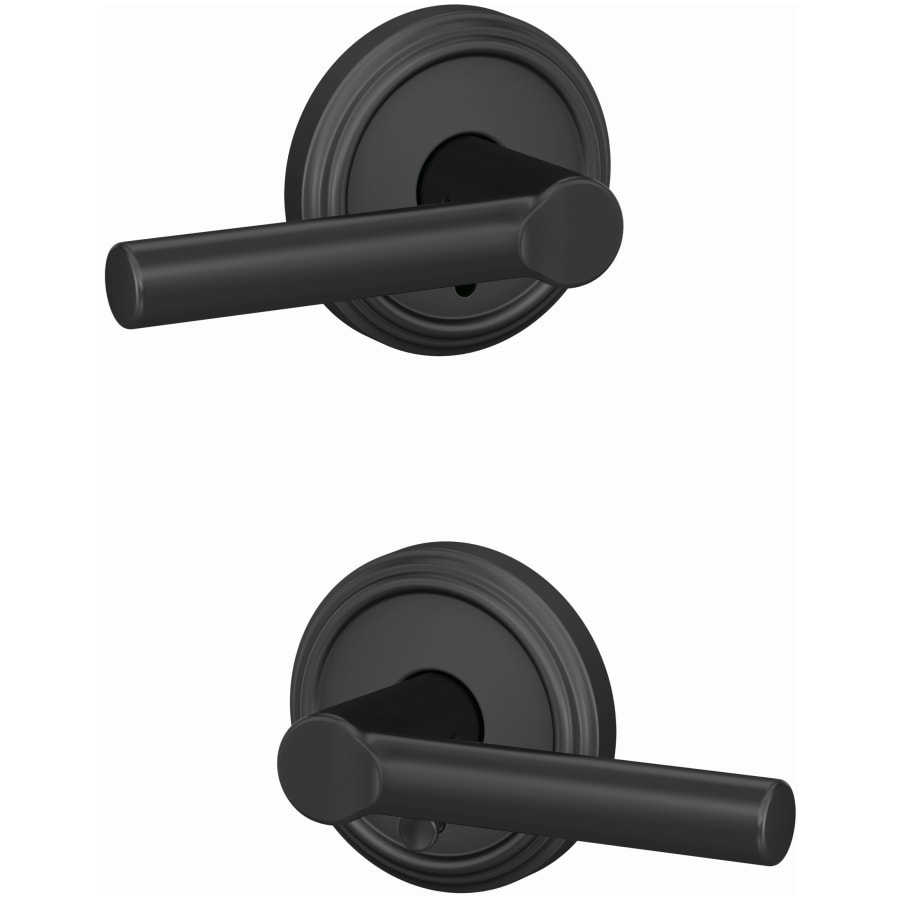

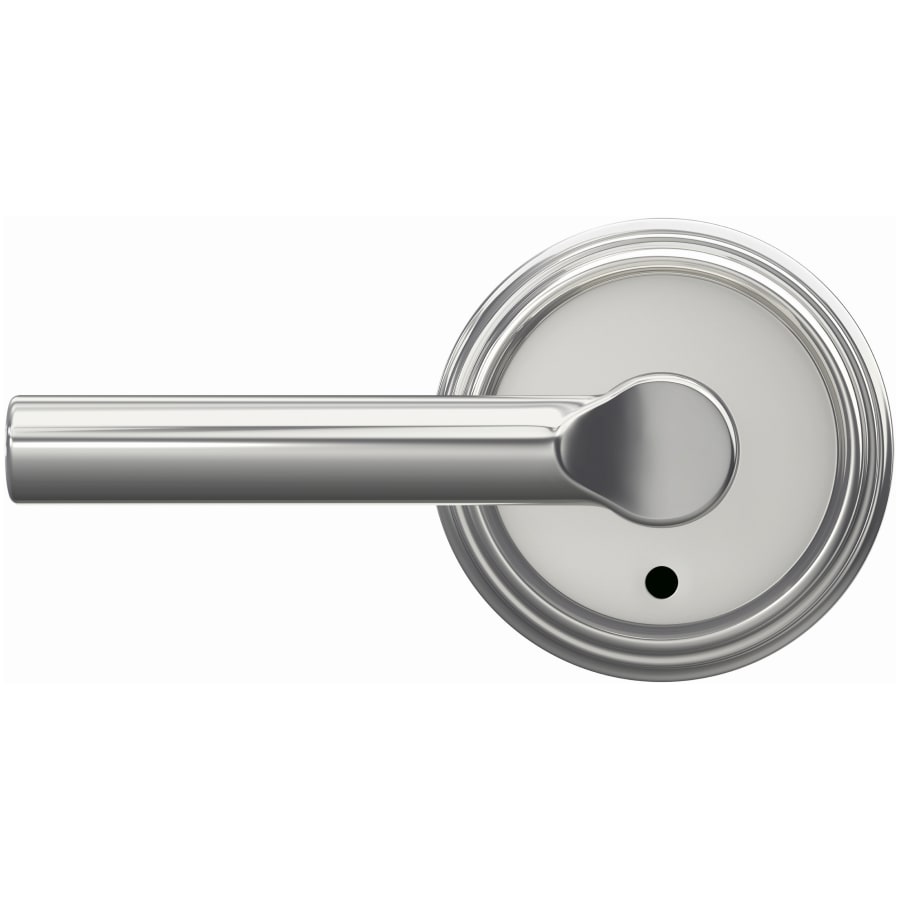

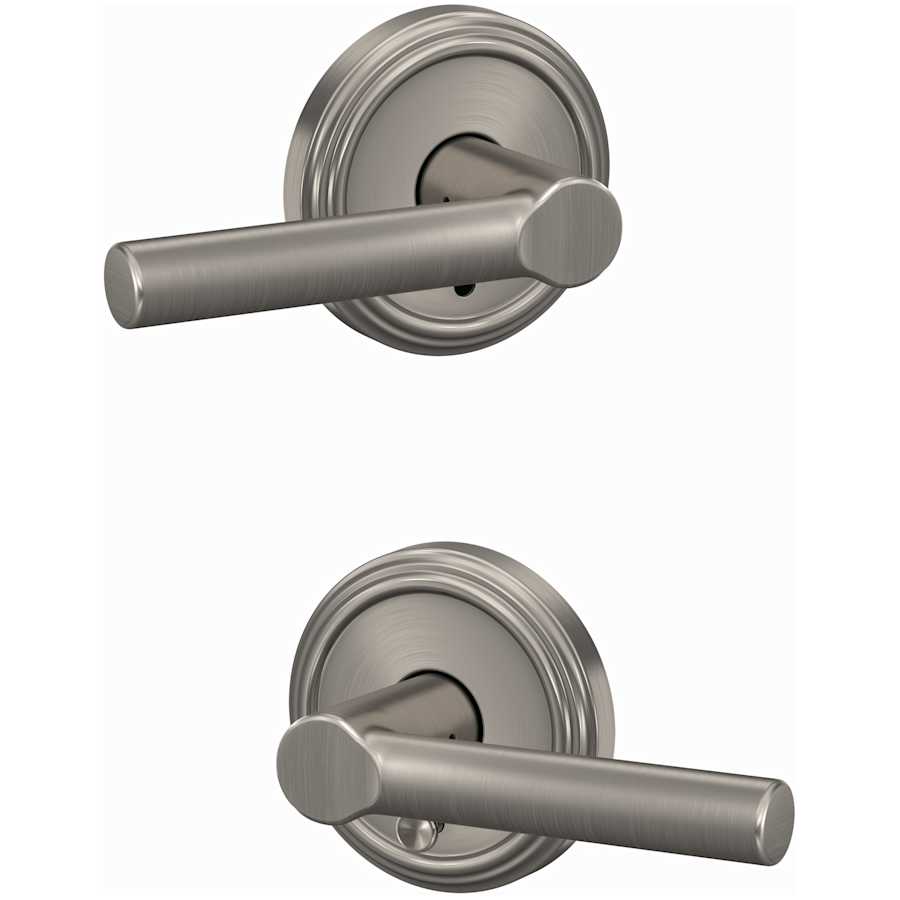

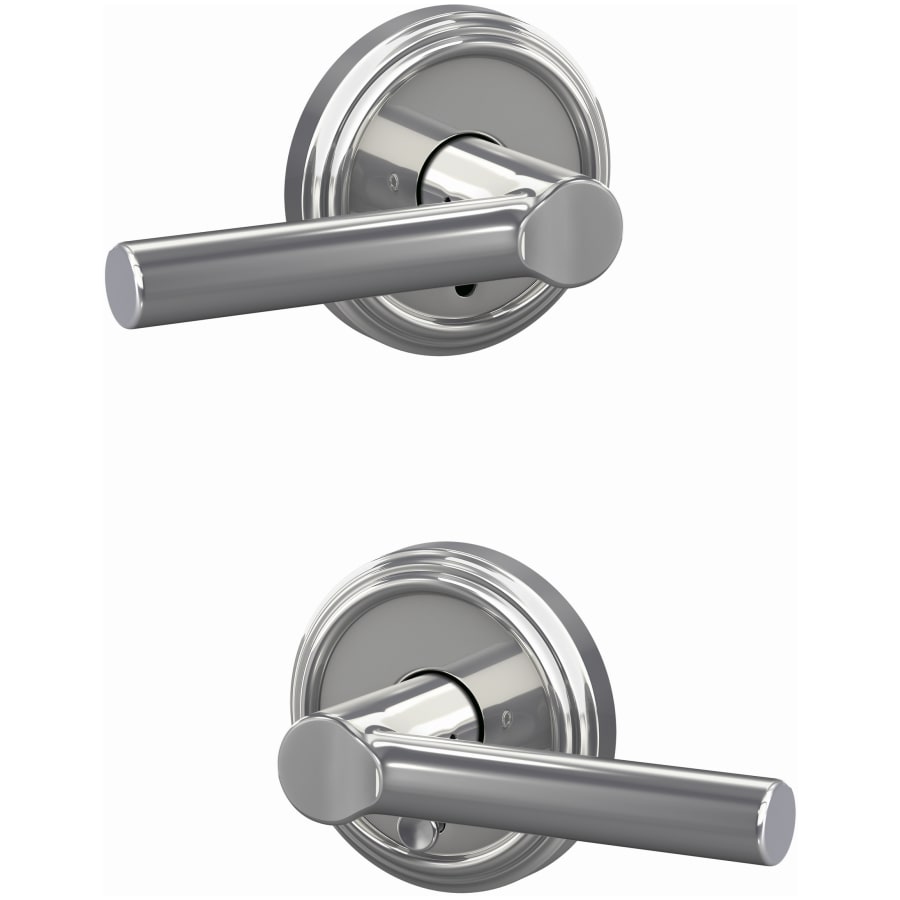

Passage / Privacy: Passage / Privacy door hardware is convertible from one function to the other simply by installing or uninstalling the privacy Pin. When the privacy pin is not installed the door has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn’t needed. When the privacy pin is installed the door will lock by pushing the pin in, and unlock by turning the interior handle.
Features:
BHMA security rated
Constructed of high quality materials for lasting durability
Installs easily with all necessary mounting hardware included
Covered by Schlage’s limited lifetime manufacturer warranty
Easily converts from Passage to Privacy function by installing the included privacy pin
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ – 1-3/4″
Handing: Reversible Left or Right
Handle Length: 4″
Handle Projection: 2-3/8″
Trim Height: 3″
Trim Width: 3″
Latch Faceplate: Round Corner
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Custom Collection
Specifications
| Thermostat | Transitional |
| Concealed Screws | No |
| Material | Zinc |
| Handshower | Left, Reversible, Right |
| Function | Passage, Privacy, Passage / Privacy |
| Latch Faceplate | Round Corner |
| Handle Material | Metal |
| Handle Style | Lever |
| Handle Design | Broadway |
| Rosette Shape | Round |
| Trim Design | Indy |
| Lever Shape | Round, Straight |
| ADA | Yes |
| Country Of Origin | Mexico |
| Manufacturer Warranty | Limited Lifetime |
| Collection | Broadway |
| Approved for Commercial Use | No |
| Certifications | ANSI |
| Fire Rated | No |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 2 |
| Series | FC Series |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Product Weight | 2.08 lbs. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Length | 4 in. |
| Handle Projection | 2.35 in. |
| Trim Height | 3 in. |
| Trim Width | 3 in. |
| Color | Aged Bronze, Bright Chrome, Matte Black, Satin Nickel |
| Color Tone | Blacks, Bronze Tones, Nickel Tones, Silver Tones |
