One system. Endless possibilities.
Schlage Custom door hardware offers the premium look and feel typically found in specialty showrooms with innovative flexibility and quality. Add instant polish to the look of any room with Schlage’s architecturally-inspired and customizable knobs, levers and trim in lustrous, long-lasting finishes at a price you can afford.
Premium Style:
Architecturally-inspired styles
Customizable designer styles at affordable prices
Standard concealed screws for a cleaner look
2-in-1 Innovation:
Combined interior function works as both privacy and passage
Change from locking to non-locking by removing the locking pin from pinhole on the interior side of the lock

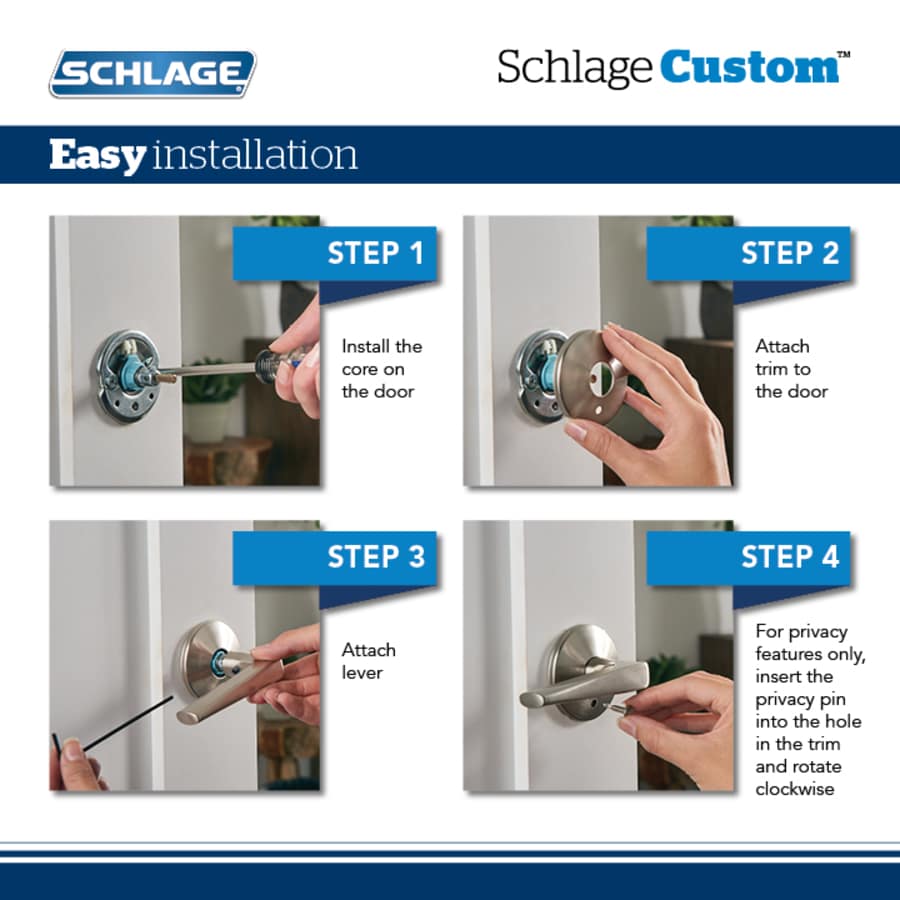

Easy Installation:
Installs in minutes
Two tool installation with a screwdriver and the included allen wrench
Easy to install and update style later
Guaranteed to fit on standard doors
Don’t live with outdated door hardware:
Schlage Custom door hardware is an easy upgrade to your home. Whether replacing outdated or broken locks, remodeling a room or creating a cohesive look from the front door to the back, Schlage Custom door hardware gives your whole home the flawless look it deserves.
Features:

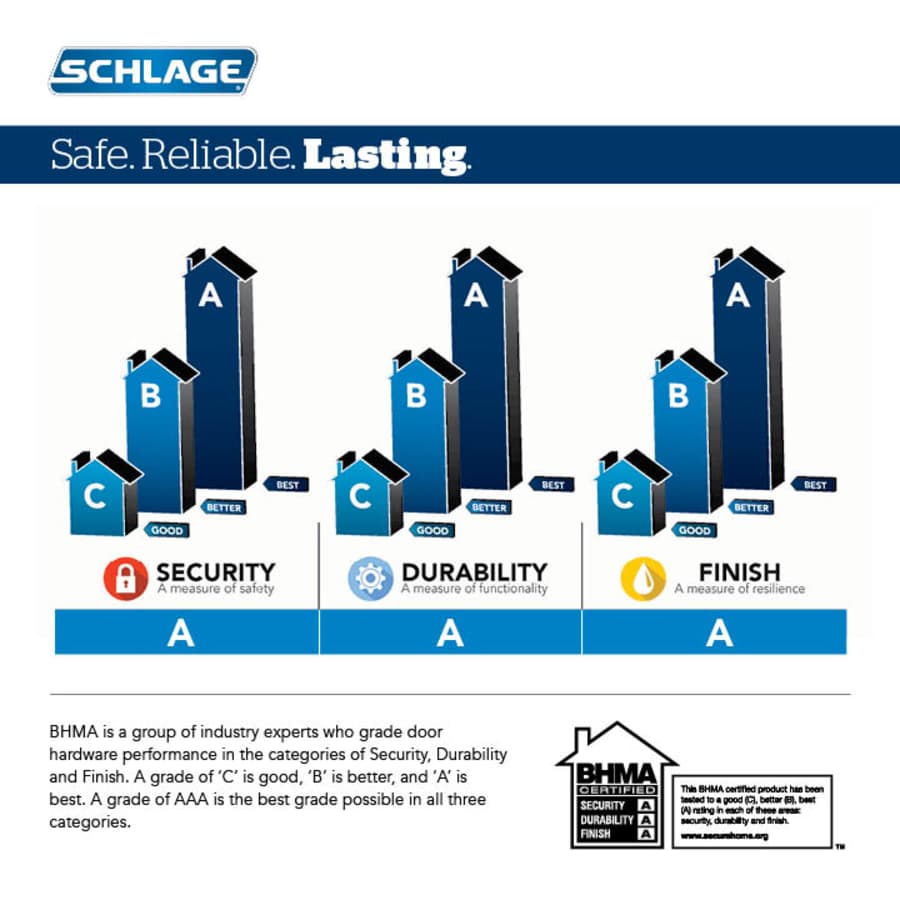

Adheres to ANSI/BHMA A156.39 Grade 2 security standards
Constructed from metal for lasting durability
Includes all mounting hardware for easy installation in prepared doors
This knobset can be set up as passage or privacy function be installation or removal of a single pin
Schlage offers a limited lifetime manufacturer warranty
Specifications:
Backset: Adjustable 2-3/8″ to 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible, Left or Right
Projection: 2-1/4″
Rose Height: 2-15/16″
Rose Width: 2-15/16″
Material: Zinc
Product Variations:
FC172-ELR-COL: Dummy Door Lever Set

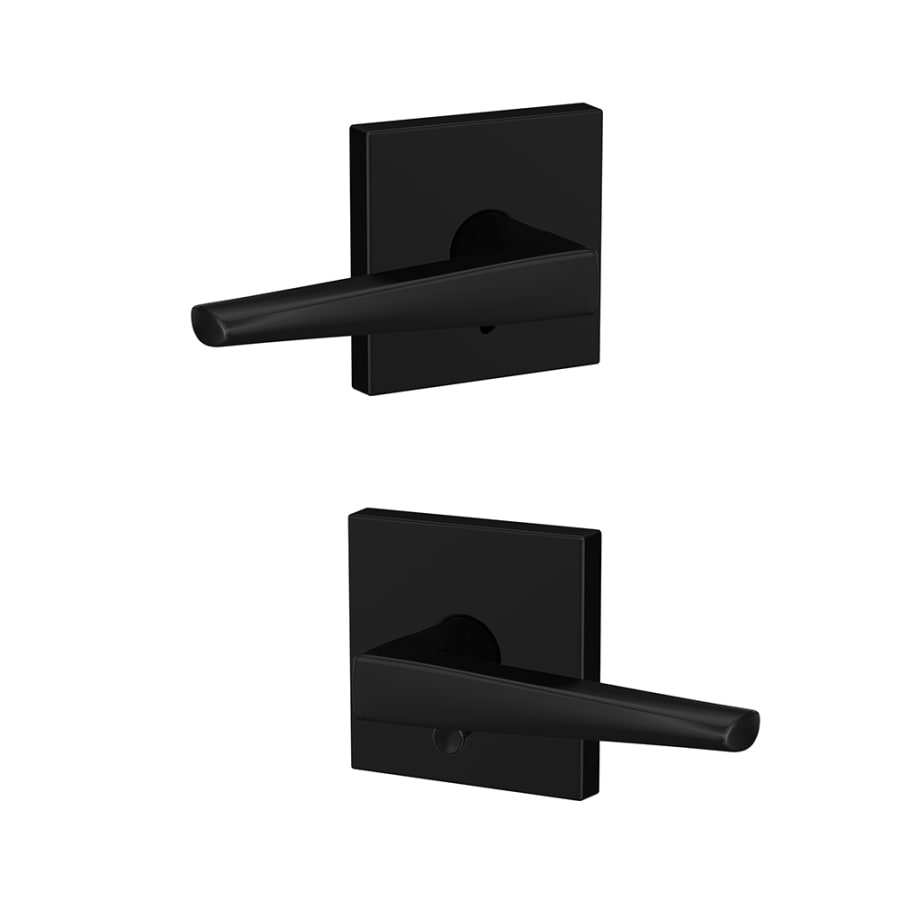

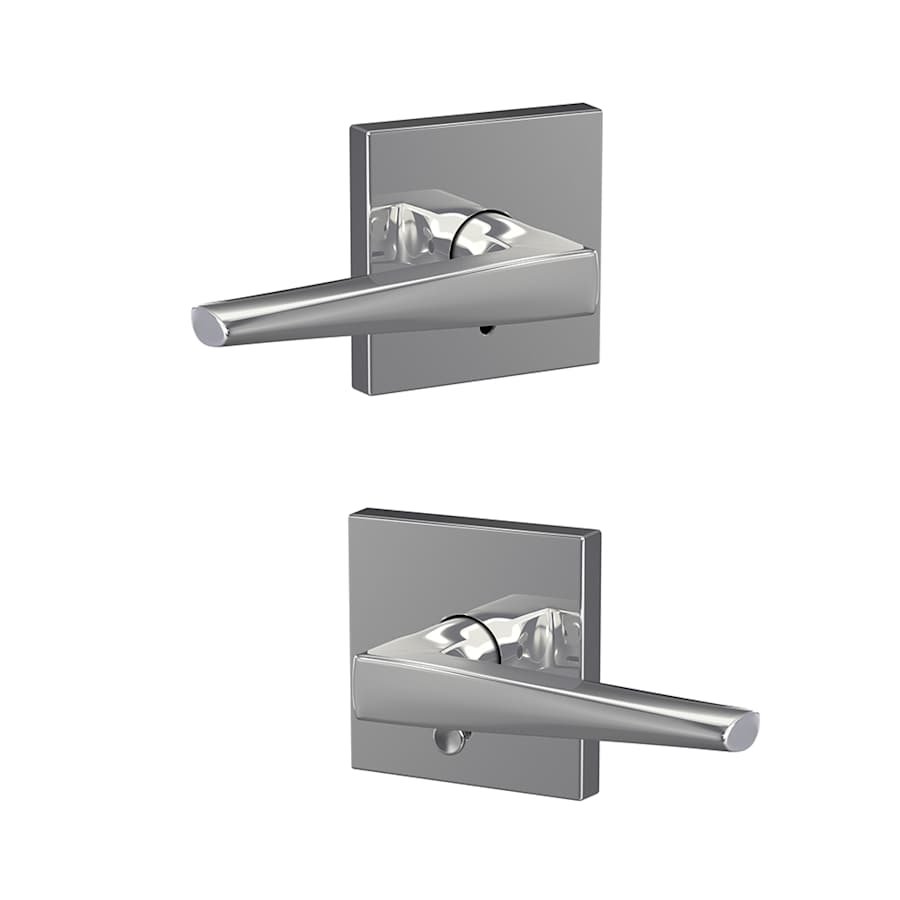

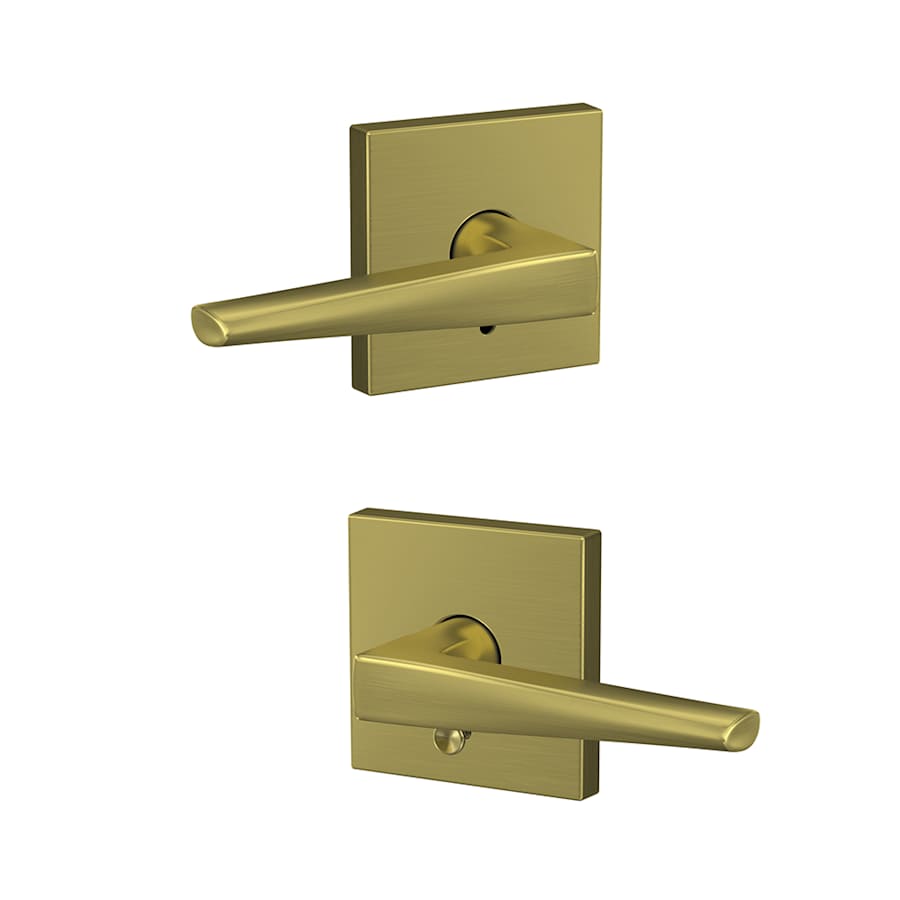

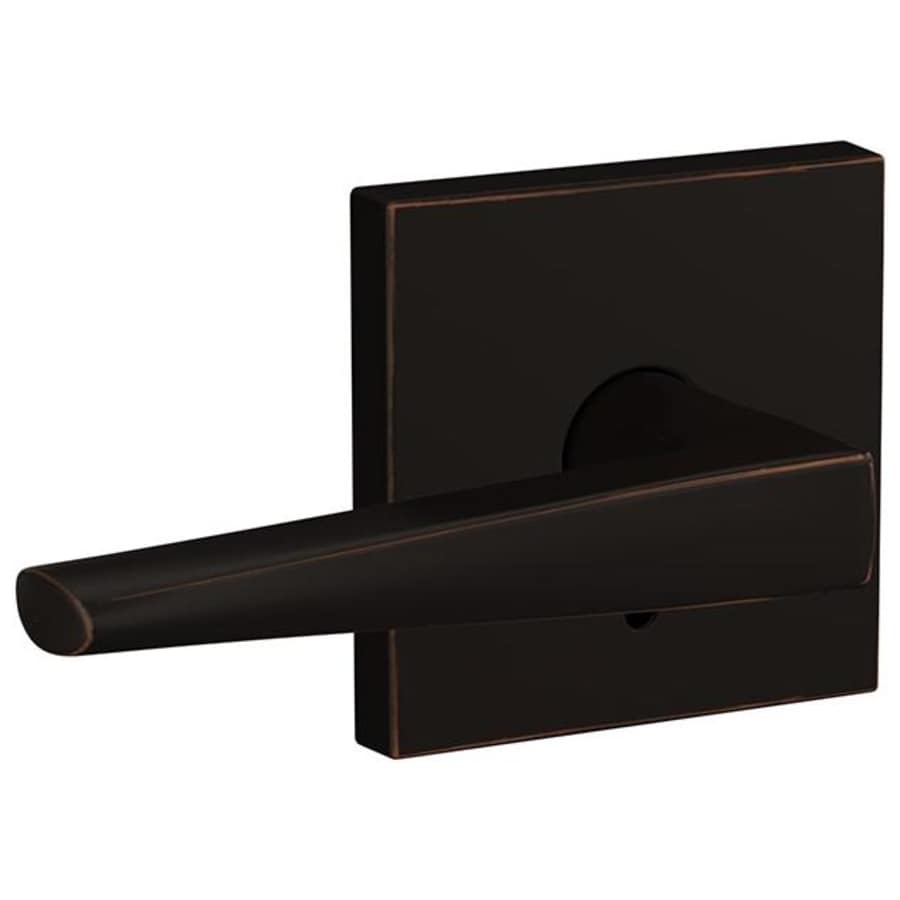

FC21-ELR-COL (This Model): Passage & Privacy Door Lever Set
F51A-ELR-COL: Keyed Entry Door Lever Set
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Custom Collection
Specifications
| Manufacturer Warranty | Limited Lifetime Mechanical, Limited Lifetime Finish |
| Approved for Commercial Use | No |
| Certifications | ANSI, UL |
| ADA | Yes |
| BHMA Certification | Grade 2 |
| ANSI Certification | A156.39 |
| Series | Custom, FC-Series |
| Handle Material | Metal |
| Material | Zinc |
| Thermostat | Modern |
| Function | Privacy, Passage / Privacy, Passage |
| Handshower | Left, Reversible, Right |
| Lever Shape | Straight |
| Rosette Shape | Square |
| Concealed Screws | Yes |
| Handle Design | Eller |
| Trim Design | Collins |
| Backset | Adjustable 2-3/8" or 2-3/4", 2-3/8", 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-5/8", 1-3/8" |
| Edge Bore | 1" |
| Handle Projection | 2.25 in. |
| Trim Height | 2.93 in. |
| Trim Width | 2.93 in. |
| Color | Aged Bronze, Bright Chrome, Matte Black, Satin Brass, Satin Nickel, Satin Nickel / Bright Chrome |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
