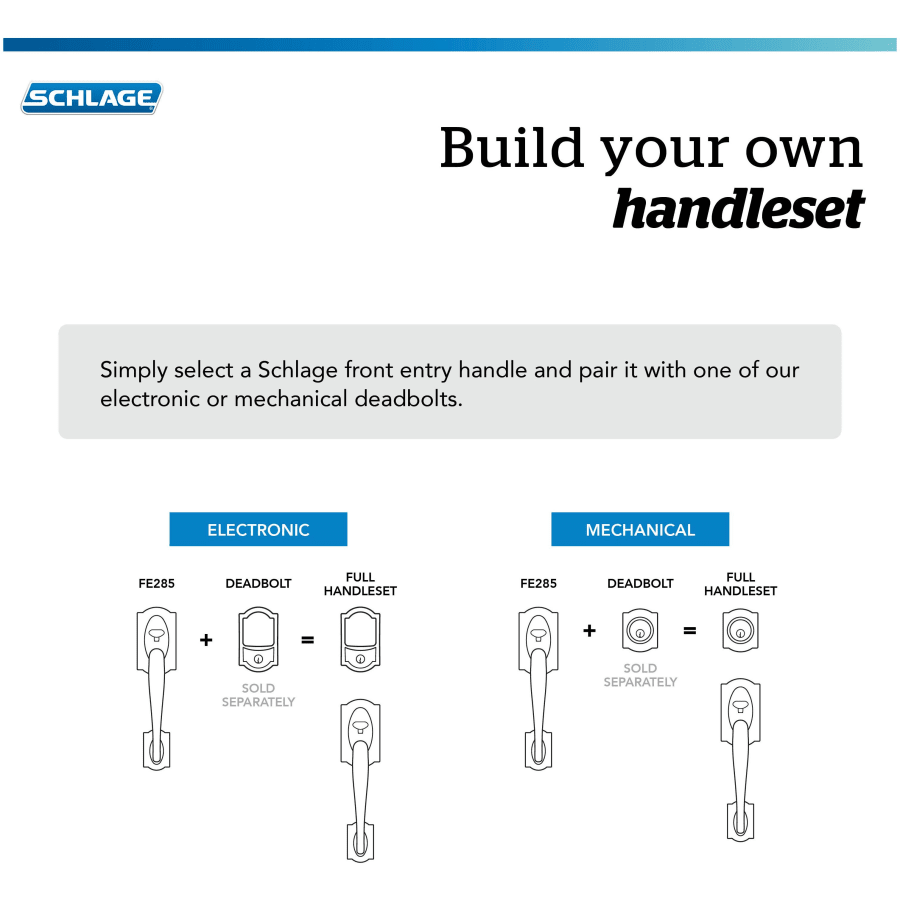

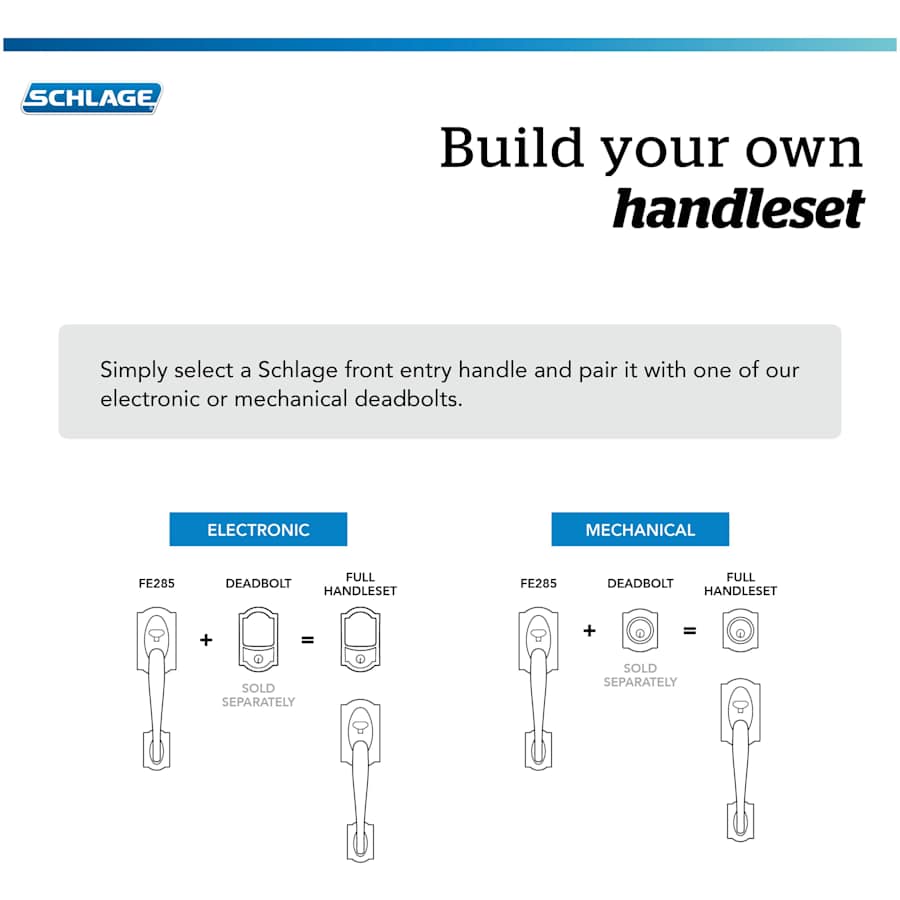

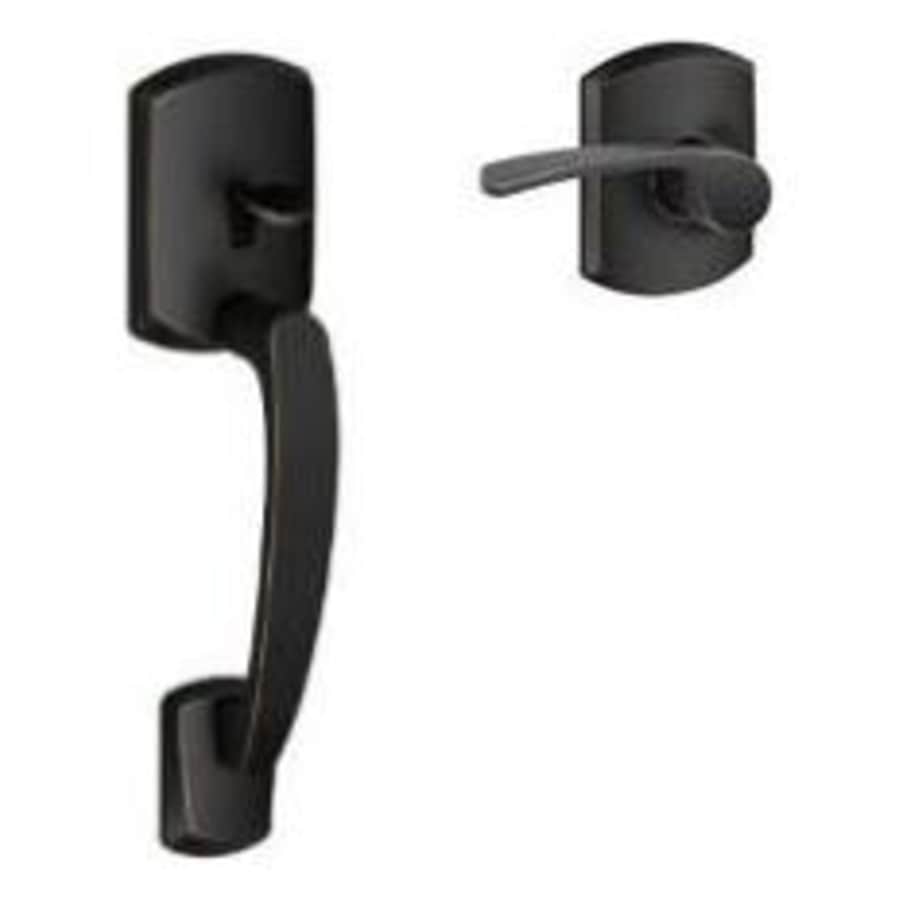

Handleset (Lower Half): This is the lower half of a keyed entry set and is meant to be paired with a deadbolt. Choose from the standard single cylinder turn-key deadbolt or go with an electronic deadbolt that adds a variety of safety and convenience features.
Â
Features:
Recommended for use with Schlage BE469 touch screen keypad electronic deadbolt
Compatible with both Schlage mechanical or electronic deadbolts
Constructed of solid forged brass with zinc based lever
Installs easily with all necessary mounting hardware included

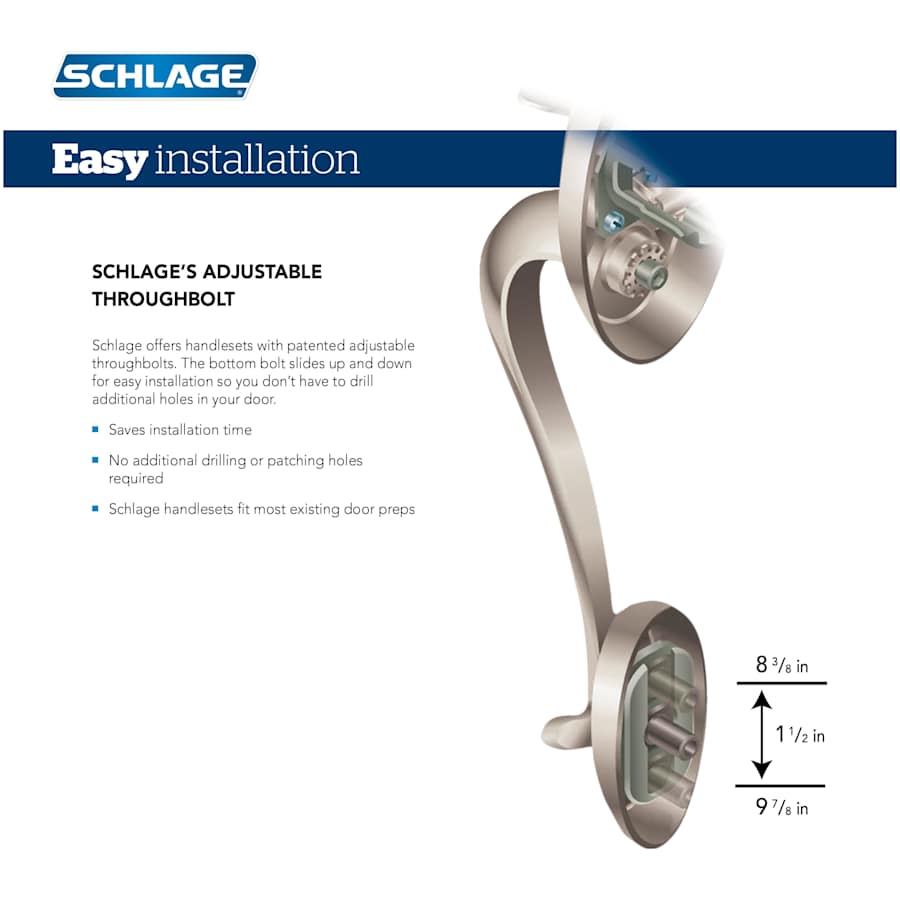

No re-drill or door patching necessary with patented through-bolt
Covered by Schlage’s limited lifetime manufacturer warranty
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Door Thickness: 1-1/2″ to 1-7/8″
Cross Bore Diameter: 2-1/8″
Edge Bore Diameter: 1″

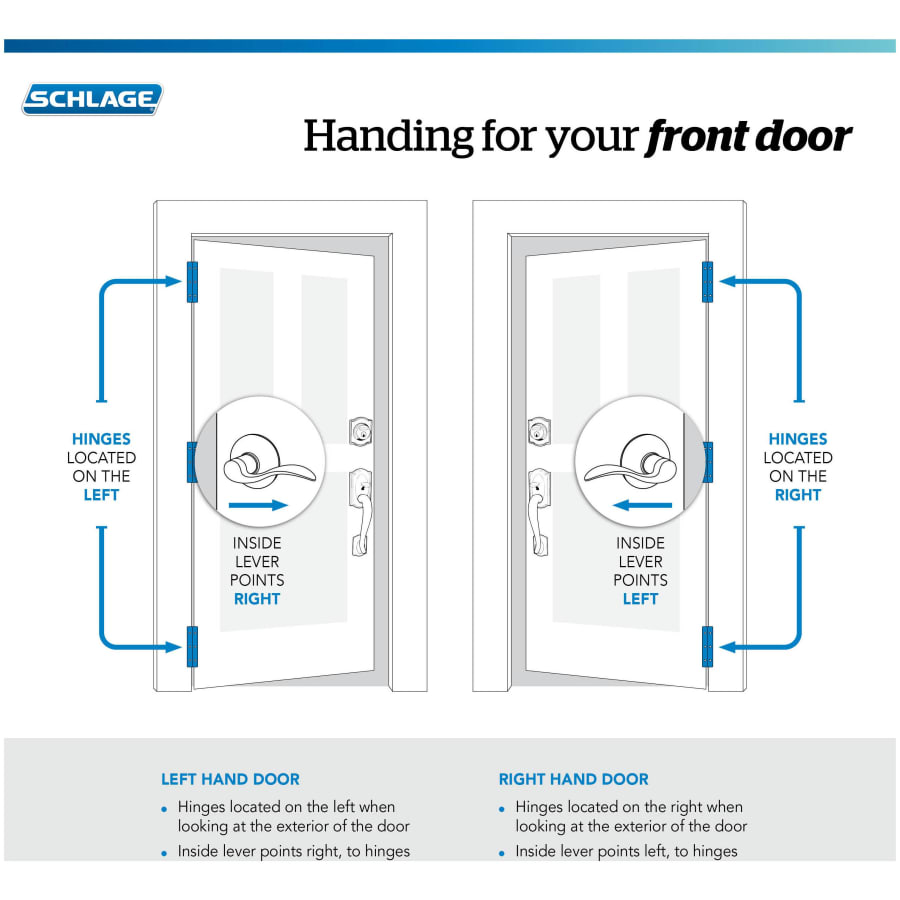

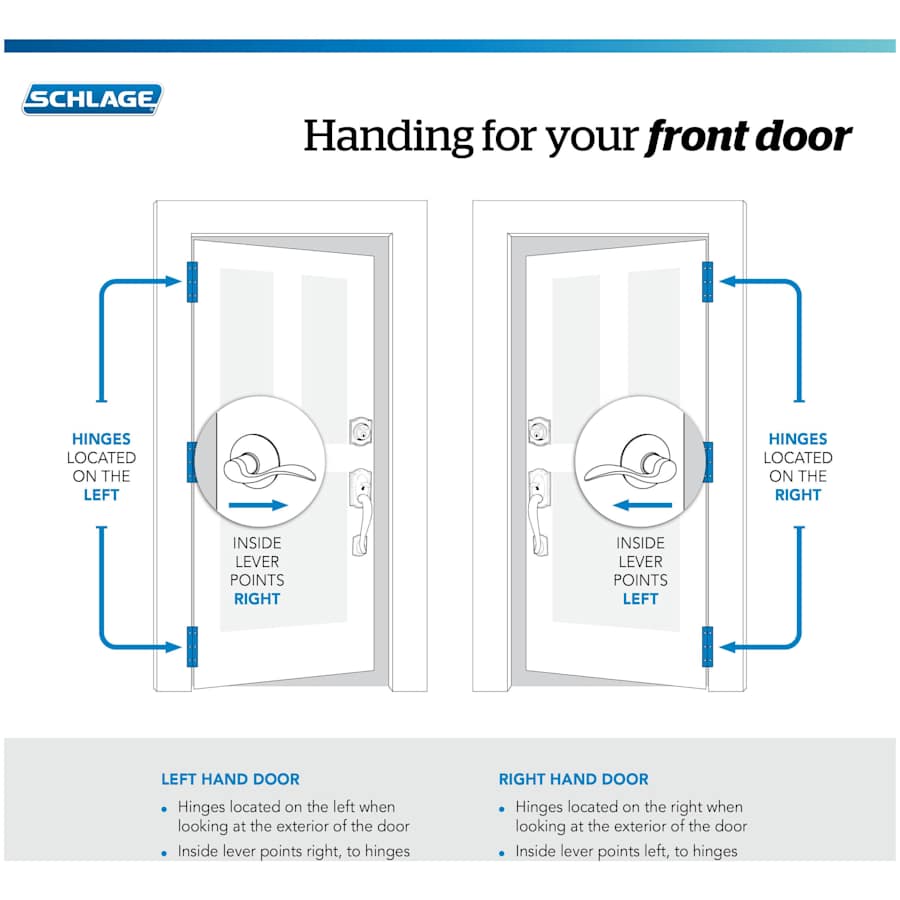

Handing: Right

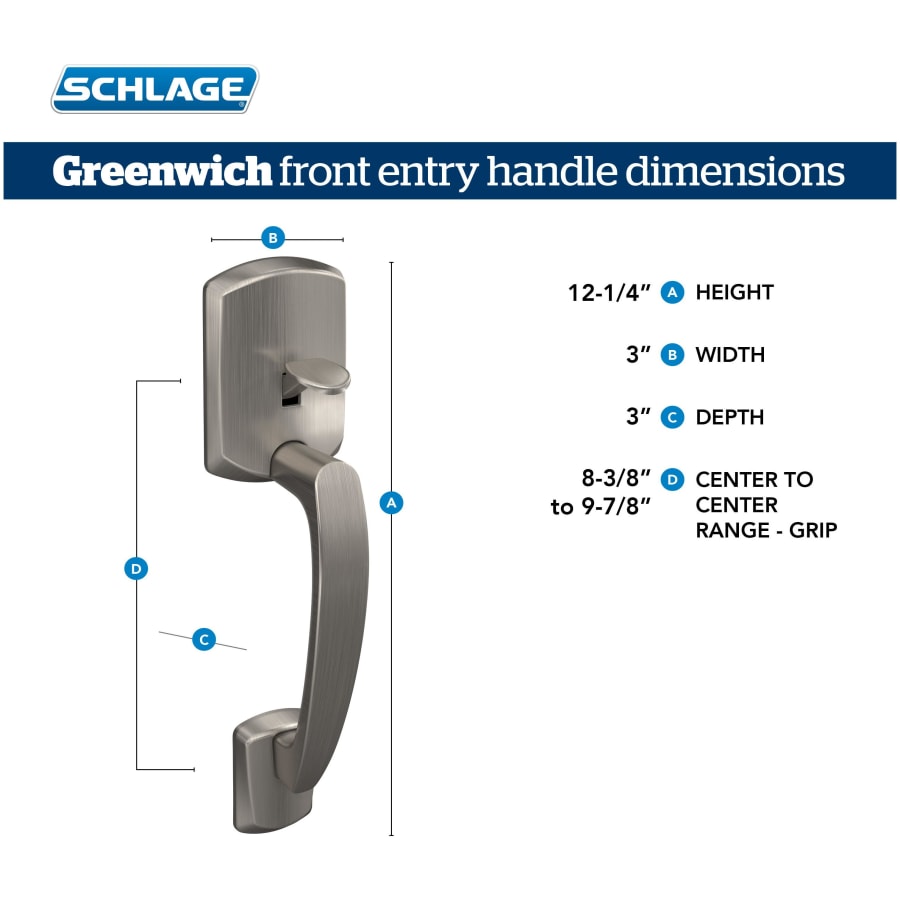

Center to Center: 5-1/2″

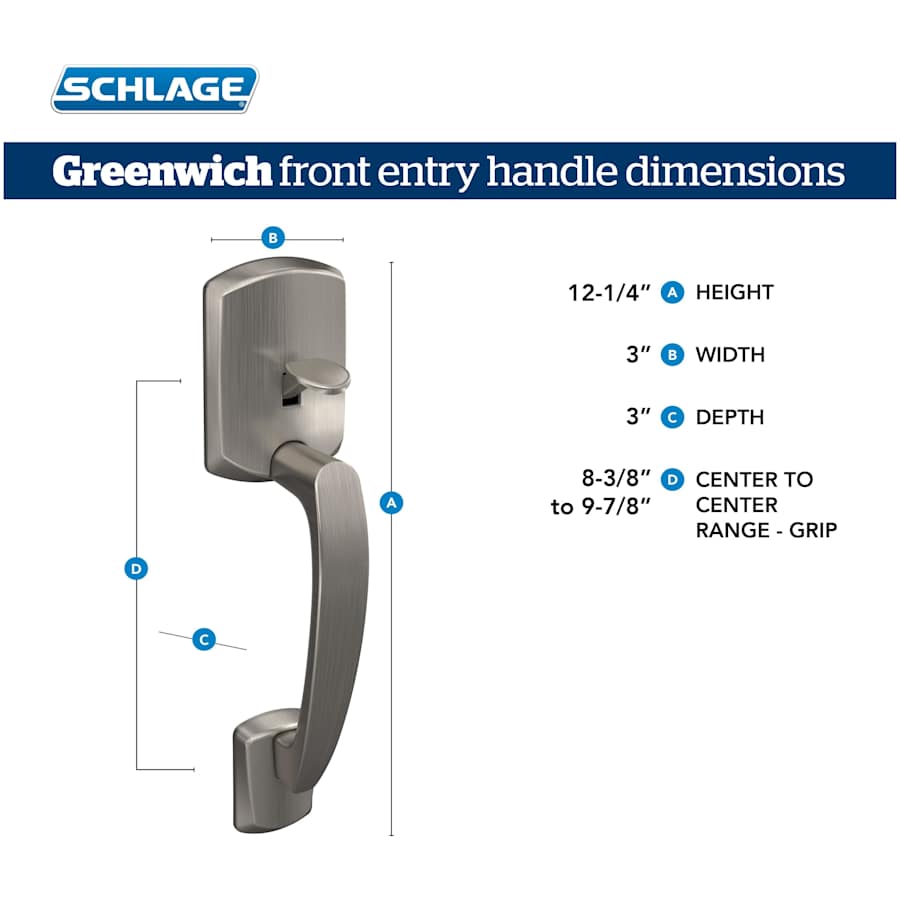

Handle Center to Center: 8-3/8″ to 9-7/8″
Overall Height: 12-1/4″
Handle Projection: 2-7/8″
Trim Width: 3″
Interior Handle Length: 4-1/8″
Interior Handle Projection: 2-13/16″
Interior Trim Height: 3-3/4″
Interior Trim Width: 3″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Greenwich Collection
Specifications
| Thermostat | Modern |
| Material | Brass, Zinc |
| Solid Construction | Solid Brass |
| Handshower | Right |
| Handle Material | Metal |
| Handle Style | Grip |
| Latch Faceplate | Drive-In, Round Corner |
| Lock Style | Single Point |
| Mounting | Sectional |
| Interconnected | No |
| Trim Design | Greenwich |
| Interior Handle Style | Lever |
| Handle Design | Greenwich |
| Adjustable Throughbolt | Yes |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Country Of Origin | Mexico |
| Collection | Greenwich |
| Series | Merano |
| ANSI Certification | A156.2 |
| Certifications | ANSI |
| ADA | No |
| BHMA Certification | Grade 2 |
| Product Weight | 3.45 lbs. |
| Center to Center | 5.5 in. |
| Door Thickness | 1-1/2", 1-3/4", 1-5/8", 1-7/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.875 in. |
| Trim Height | 3.75 in. |
| Trim Width | 3 in. |
| Overflow Height | 12.25 in. |
| Interior Handle Projection | 2.8125 in. |
| Interior Trim Height | 3.75 in. |
| Interior Trim Width | 3 in. |
| Interior Handle Length | 4.125 in. |
| Interior Included | Yes |
| Color | Aged Bronze, Matte Black, Satin Nickel |
| Color Tone | Blacks, Bronze Tones, Nickel Tones |
