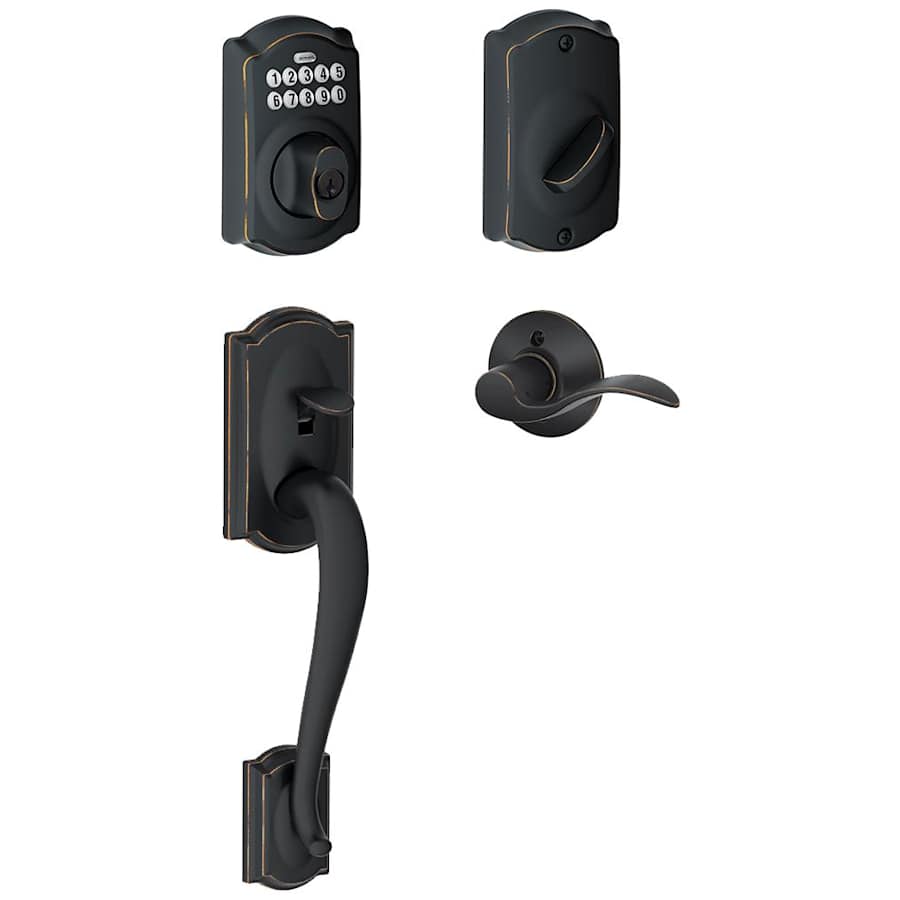

Electronic Keypad (with Handleset) Function: This electronic deadbolt allows you to lock and unlock the deadbolt without the use of a key. It has the versatility of keyless operation while still retaining the functionality of keyed entry, having both a keypad and lock cylinder on the outside and a thumb turn on the interior. It’s perfect for front doors, side or back doors, and garage entry doors.
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take less than an hour.
A Lifetime Mechanical and Finish Warranty gives you the piece of mind that this product will be looking good and functioning smoothly for as long as you own it.(Finish warranty does not include Oil Rubbed Bronze because it is a living finish and it is expected to patina over time).
BHMA/ANSI Grade 2 certified which indicates excellent performance across a range of residential applications. This product is built from high-quality materials to give you exceptional security.
Product Highlights:
No programming required; includes personalized user code to make it functional right out of the box
Assign up to 19 personalized codes
It does not automatically lock when you leave. To lock from the exterior, simply press the Schlage button and manually throw the bolt
Convenience of keyless access and customizable to fit your security needs
Buttons Illuminate when you press any button from the exterior
Additional Features:
Easily replace most existing deadbolts with a screwdriver in about 30 minutes
ANSI/BHMA Grade 2 Certified
Fits standard door prep
This product is setup for left handed applications
Easy installation, no need to run wires
Battery operated with over 3 year battery life
Can fit a 2-1/2″ thick door with the Schlage 02-007 Adapter kit
Faceplates (Part 12-087): Supplied with 1/4″ Round Corner, Square Corner and Drive-In Faceplates
Strike Plates (Part 10-116): Supplied with a Round Strike only with Dimensions of 2-1/4″ x 1-5/8″

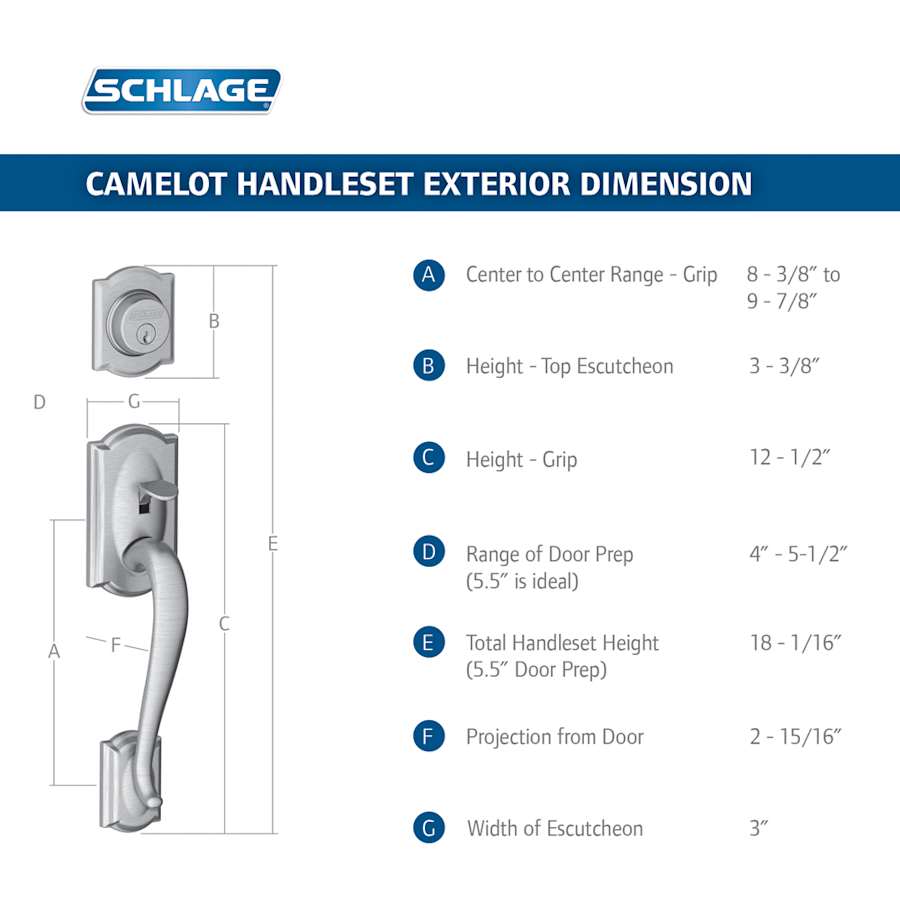

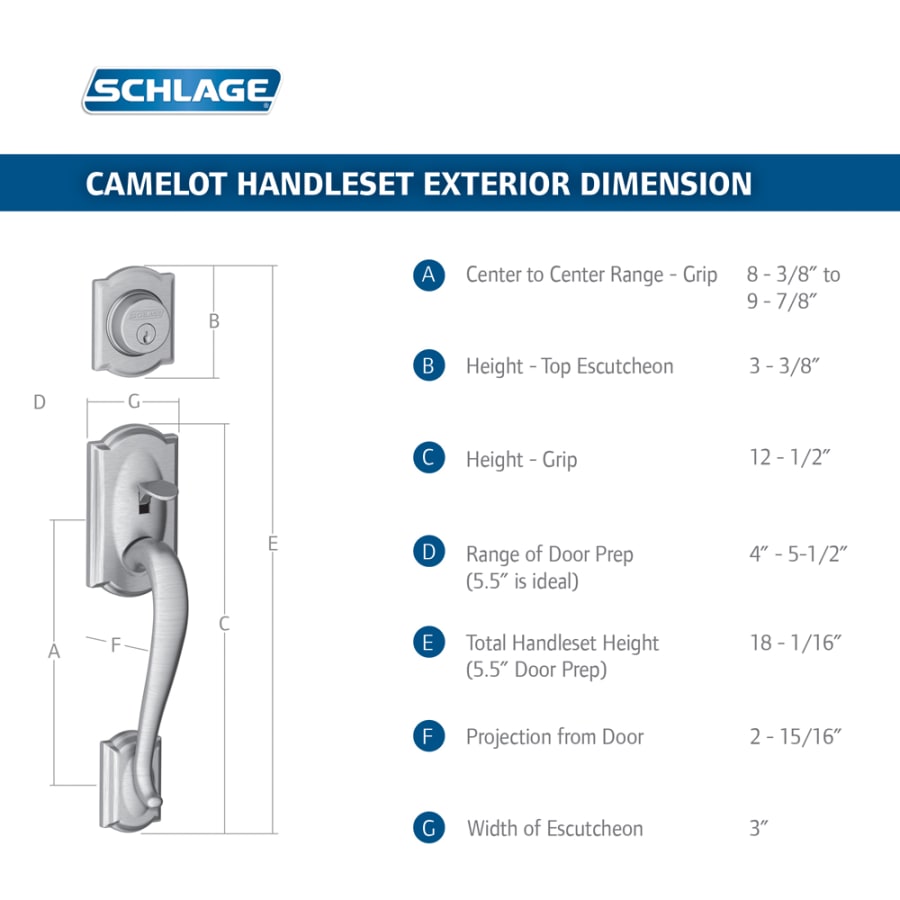

Specifications:
Backset: Adjustable to 2-3/8″ or 2-3/4″
Center to Center: 5-1/2″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ , 1-1/2″ , 1-5/8″ or 1-3/4″
Handing: Left
Product Weight: 3.00 lbs
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Camelot Collection
Specifications
| Thermostat | Traditional |
| Handle Style | Grip |
| Handshower | Left |
| Latch Faceplate | Round Corner |
| Function | Keyless Entry, Electronic Keyless Entry |
| Handle Material | Metal |
| Style | Functional |
| Lock Style | Single Point |
| Mounting | Sectional |
| Cylinder | 5 Pin Schlage C |
| Cylinder Type | Single Cylinder |
| Keyway | C |
| Trim Design | Camelot |
| Handle Design | Camelot |
| Auto-Lock Capable | No |
| Insulation Type | Keypad |
| Lit Keypad | Yes |
| Number of Codes | 2 |
| Remote Access | No |
| Temporary Access | No |
| Usage Monitoring | No |
| Motorized Deadbolt | No |

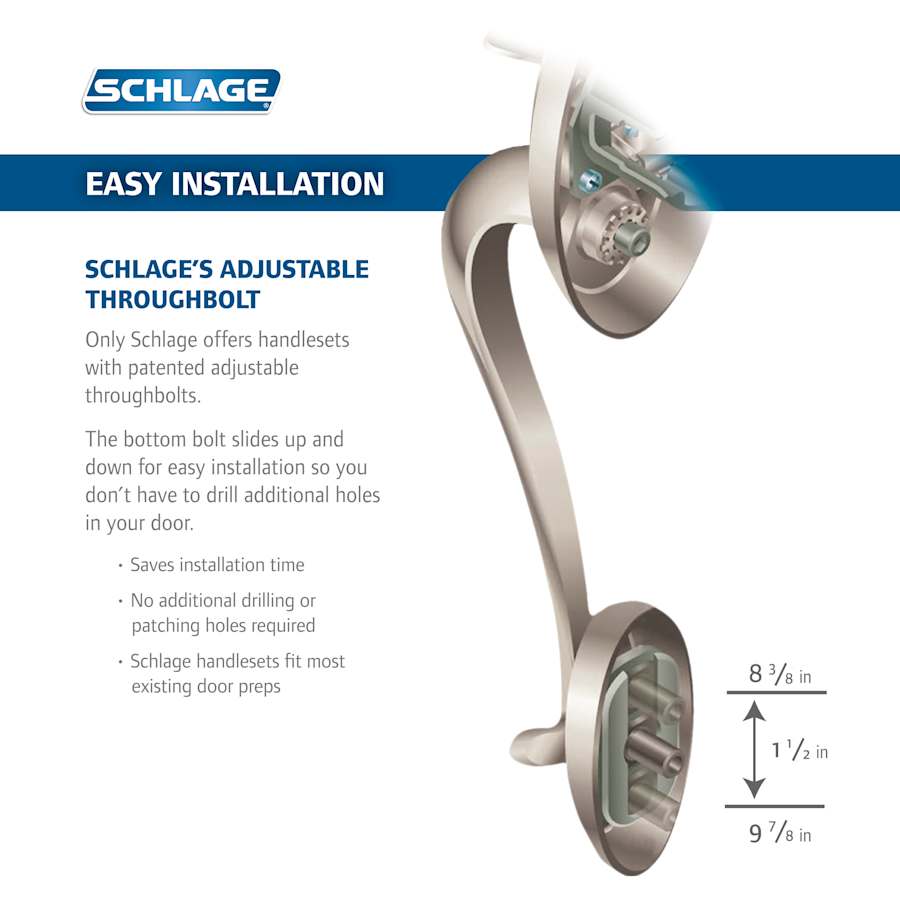

| Adjustable Throughbolt | Yes |
| ADA | No |
| Collection | Camelot, Electronic Security |
| Approved for Commercial Use | No |
| Certifications | ANSI |
| Series | FE-Series |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 2 |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Center to Center | 4, 5.5 in. |
| Interior Included | Yes |
| Color | Aged Bronze, Antique Brass, Antique Pewter, Lifetime Polished Brass, Satin Nickel |
| Color Tone | Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
