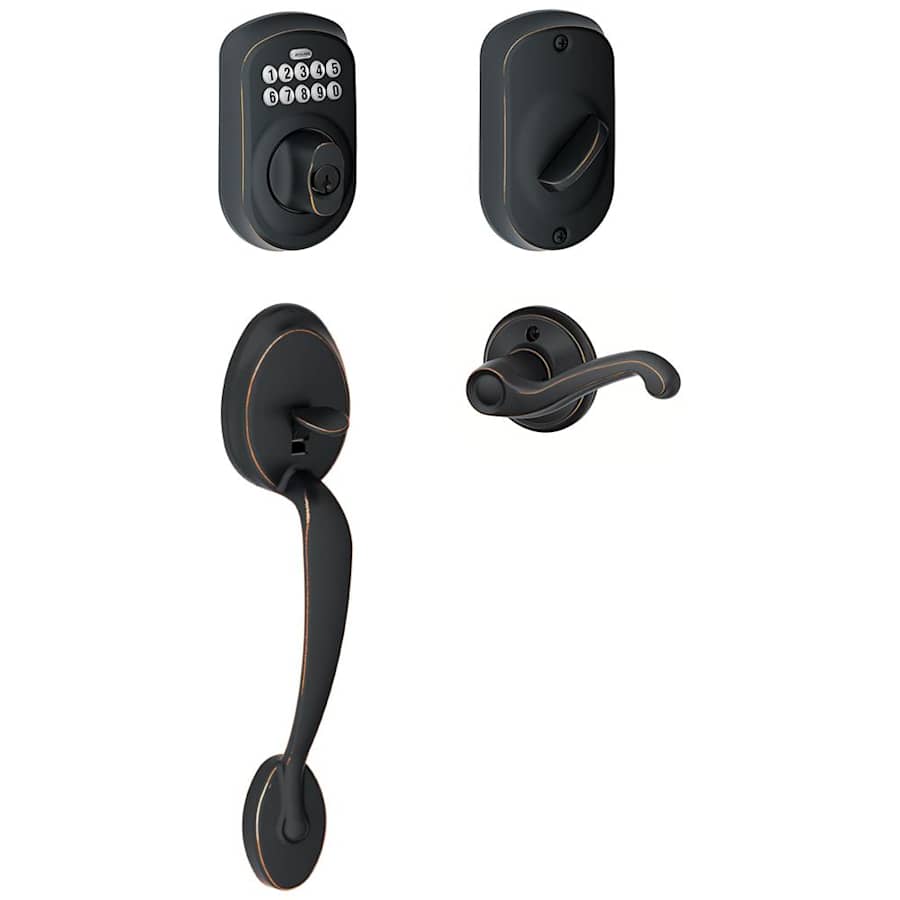

Keyless Entry Function: This electronic deadbolt allows you to lock and unlock the deadbolt without the use of a key. It has the versatility of keyless operation while still retaining the functionality of keyed entry, having both a keypad and lock cylinder on the outside and a thumbturn on the interior.  It’s perfect for front doors, side or back doors, and garage entry doors.
Product Highlights:
No programming required; includes personalized user code to make it functional right out of the box
Assign up to 19 personalized codes
It does not automatically lock when you leave. To lock from the exterior, simply press the Schlage button and manually throw the bolt
Convenience of keyless access and customizable to fit your security needs
Buttons Illuminate when you press any button from the exterior
Additional Features:
Easily replace most existing deadbolts with a screwdriver in about 30 minutes
ANSI/BHMA Grade 2 Certified
Fits standard door prep
This product is setup for left handed applications
Easy installation, no need to run wires
Battery operated with over 3 year battery life
Can fit a 2-1/2″ thick door with the Schlage 02-007 Adapter kit
Faceplates (Part 12-087): Supplied with 1/4″ Round Corner, Square Corner and Drive-In Faceplates
Strike Plates (Part 10-116): Supplied with a Round Strike only with Dimensions of 2-1/4″ x 1-5/8″
Specifications:
Backset: Adjustable to 2-3/8″ or 2-3/4″
Center to Center: 5-1/2″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ , 1-1/2″ , 1-5/8″ or 1-3/4″
Handing: Left
Product Weight: 3.00 lbs
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Plymouth Collection
Specifications
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Center to Center | 4, 5.5 in. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Approved for Commercial Use | No |
| Collection | Electronic Security, Flair, Plymouth |
| Series | FE-Series |
| ADA | No |
| ANSI Certification | A156.5 |
| Certifications | ANSI |
| BHMA Certification | Grade 2 |
| Thermostat | Transitional |
| Handle Style | Grip |
| Handle Material | Metal |
| Function | Keyless Entry, Electronic Keyless Entry |
| Style | Functional |
| Latch Faceplate | Round Corner |
| Cylinder | 5 Pin Schlage C |
| Cylinder Type | Single Cylinder |
| Handshower | Left |
| Keyway | C |
| Mounting | Sectional |
| Lock Style | Single Point |
| Trim Design | Plymouth |
| Handle Design | Plymouth |

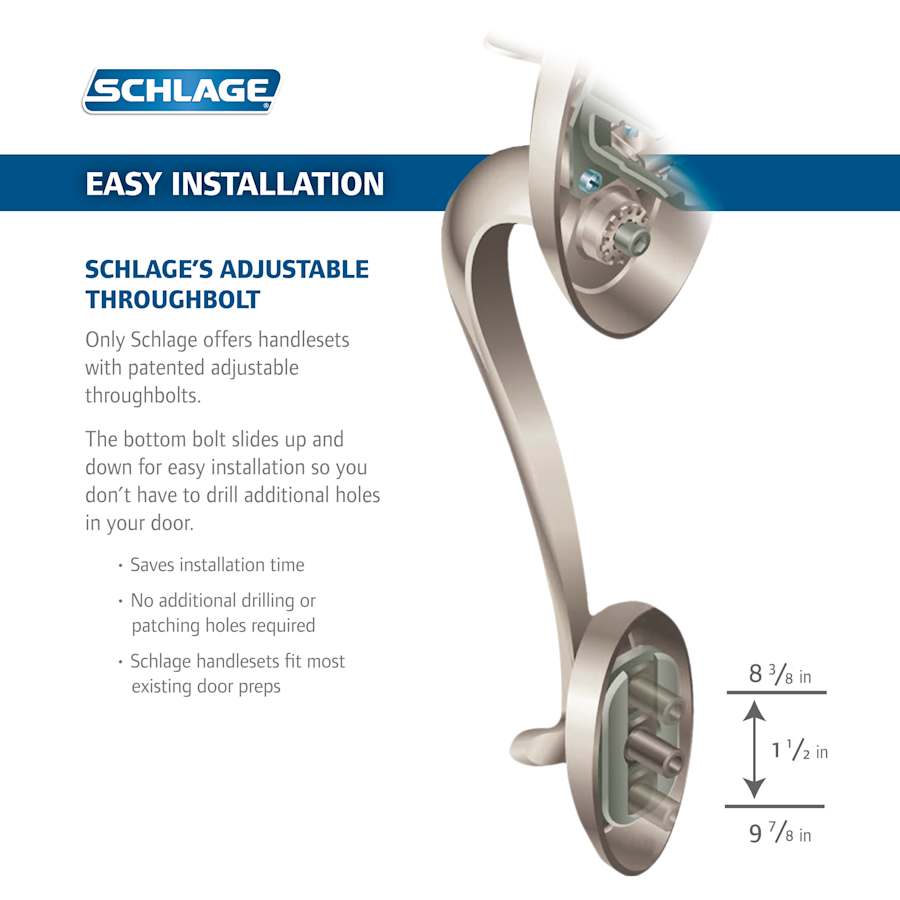

| Adjustable Throughbolt | Yes |
| Auto-Lock Capable | No |
| Insulation Type | Keypad |
| Lit Keypad | Yes |
| Temporary Access | No |
| Usage Monitoring | No |
| Number of Codes | 2 |
| Remote Access | No |
| Motorized Deadbolt | No |
| Interior Included | Yes |
| Color | Aged Bronze, Antique Brass, Lifetime Polished Brass, Oil Rubbed Bronze, Polished Chrome, Satin Chrome, Satin Nickel |
| Color Tone | Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
