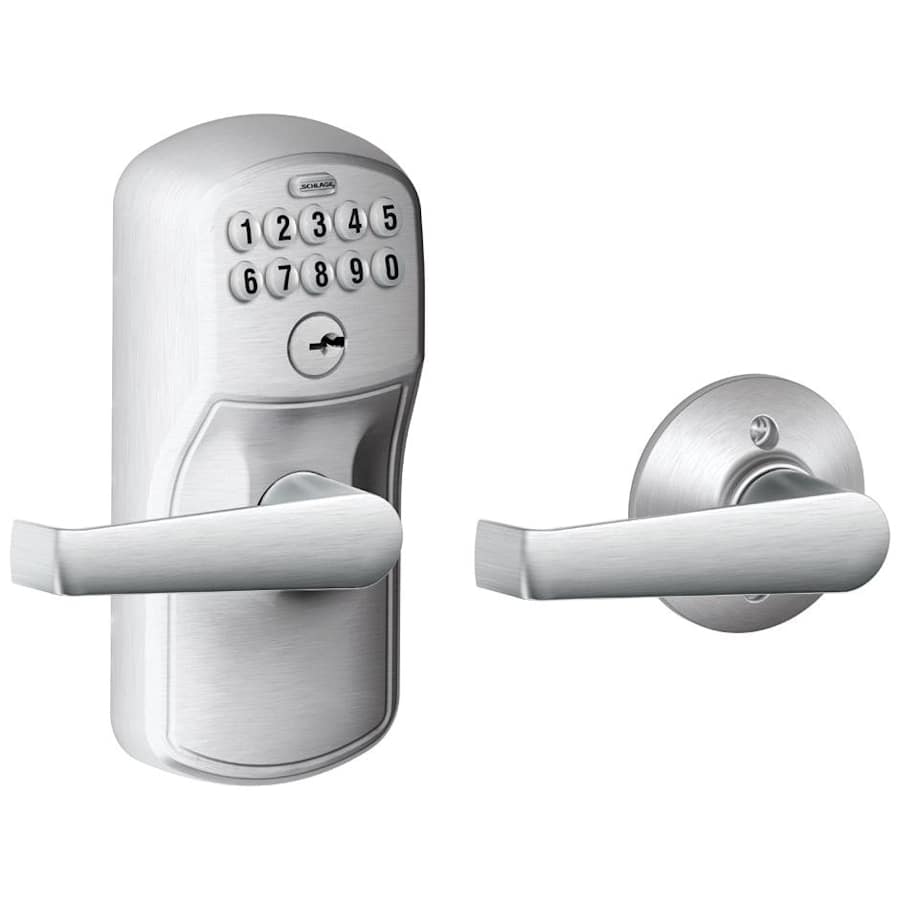

Keypad Entry Function with Auto Lock: This leverset is temporarily unlocked from the exterior with either the keypad or a key and then automatically relocks after five seconds.  From the interior the lever is always free to open the door but does not unlock the leverset. This leverset is ideal for utility closets, storage rooms, basement stairways, cleaning supply closets, etc.
Schlage Works for You
Features:
Interior screws are exposed
Automatically relocks after 5 seconds; no need to remember to relock the door
Provides additional layers of keyless security & safety inside your home or office
Easily replace most existing locks with a screwdriver in about 30 minutes
No programming required; preset with two user codes so it’s ready to use right out of the box
Faceplates (Part 16-211): Supplied with 1/4″ Round Corner, Square Corner and Drive-In Faceplates
Strike Plates (Part 10-063): Supplied with Square Corner and Round Corner Full Lip Strike Plates (Dimensions: 2-1/4″ x 1-5/8″)
Handing is adjustable for either left or right handed installation
Specifications:
Backset: Adjustable for either 2-3/4″ or 2-3/8″
Crossbore: 2-1/8″
Edgebore: 1″
Door Thickness: 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″
Cylinder: 5 Pin Schlage C
Battery Size: 9V
Battery Life: 3 Years
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Plymouth Collection
Specifications
| Thermostat | Modern |
| Handshower | Left, Reversible, Right |
| Style | Functional |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Cylinder | 5 Pin Schlage C |
| Cylinder Type | Single Cylinder |
| Function | Keyless Entry, Electronic Keyless Entry |
| Keyway | C123, C |
| Rosette Shape | Oval |
| Lever Shape | Straight |
| Trim Design | Plymouth |
| Auto-Lock Capable | Yes |
| Insulation Type | Keypad |
| Lit Keypad | Yes |
| Number of Codes | 19 |
| Remote Access | No |
| Temporary Access | No |
| Usage Monitoring | No |
| Handle Design | Elan |
| Approved for Commercial Use | No |
| Collection | Elan, Electronic Security, Plymouth, Keypad |
| Series | FE-Series |
| ANSI Certification | A156.5 |
| Certifications | ANSI |
| ADA | Yes |
| BHMA Certification | Grade 2 |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Battery Size | 9-Volt |
| Color | Antique Brass, Satin Chrome, Polished Chrome |
| Color Tone | Brass Tones, Silver Tones |
