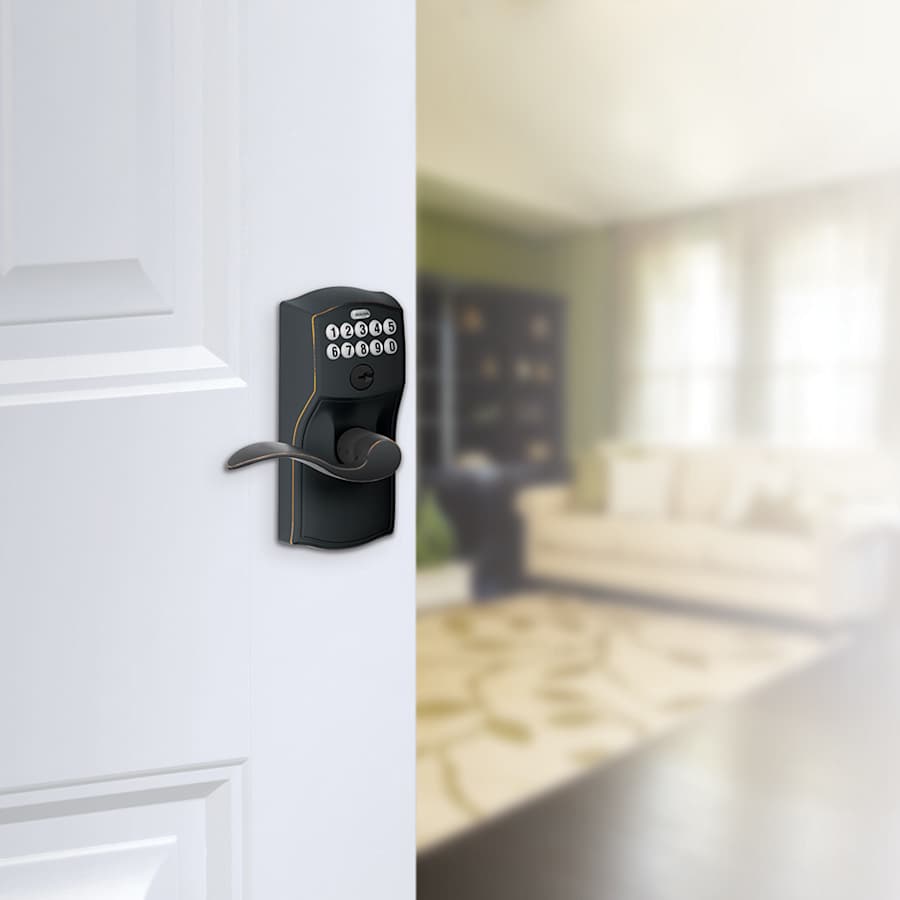

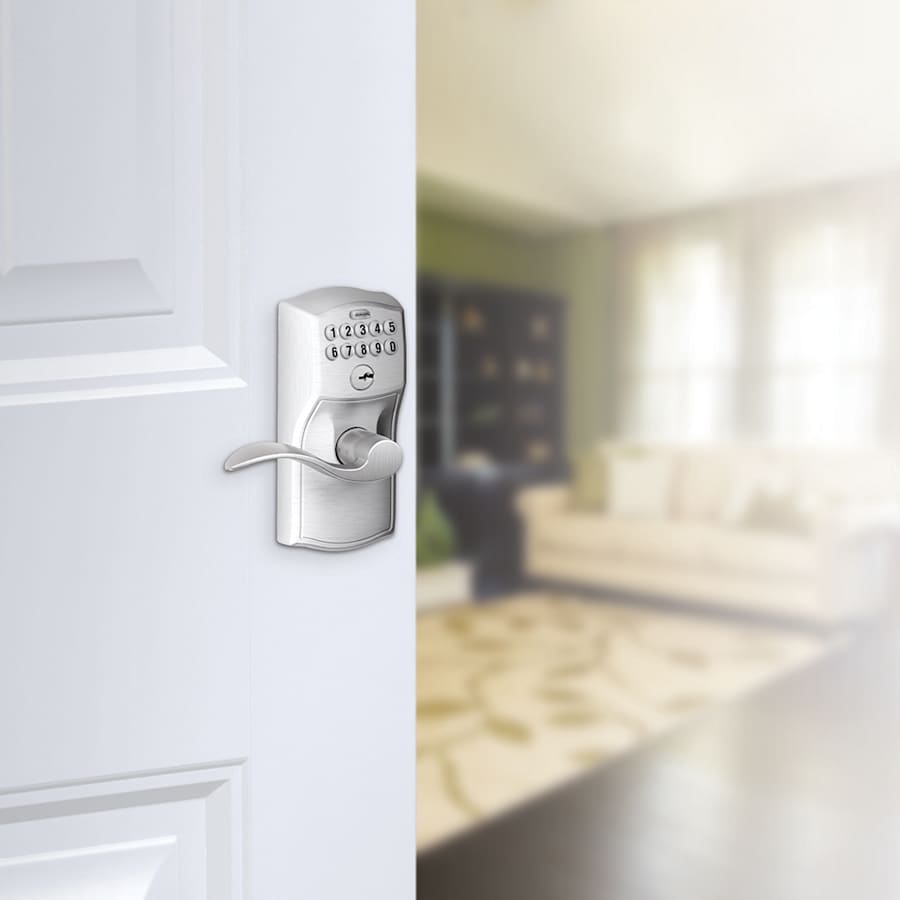

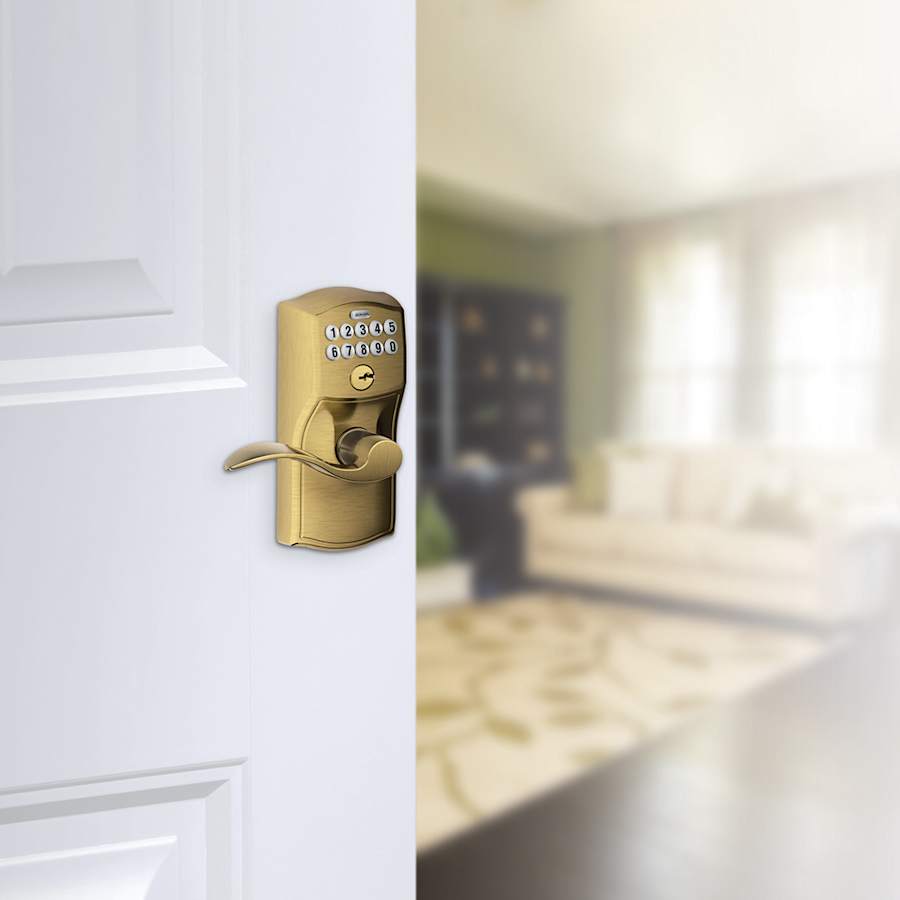

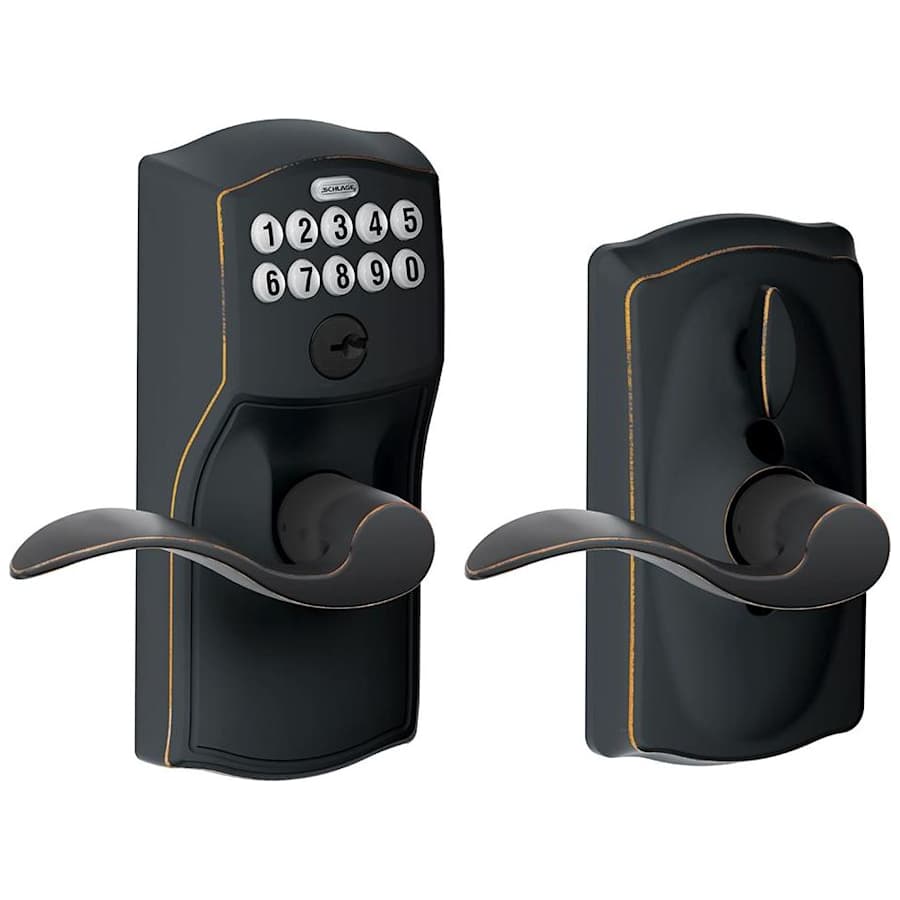

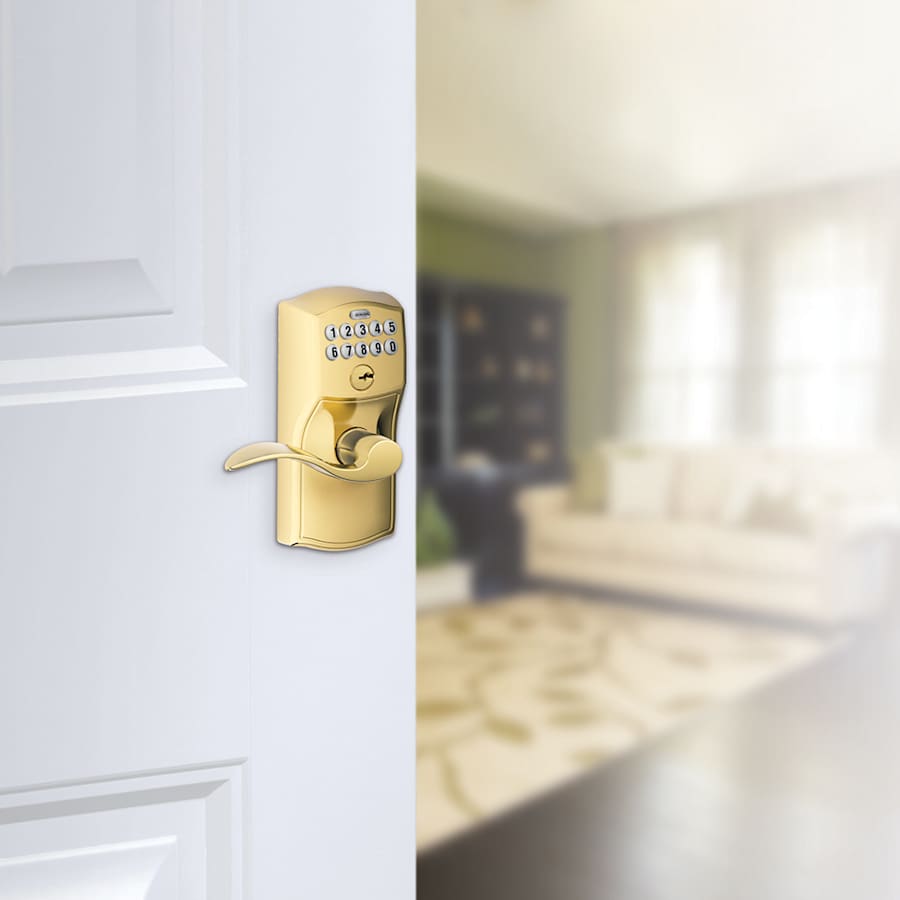

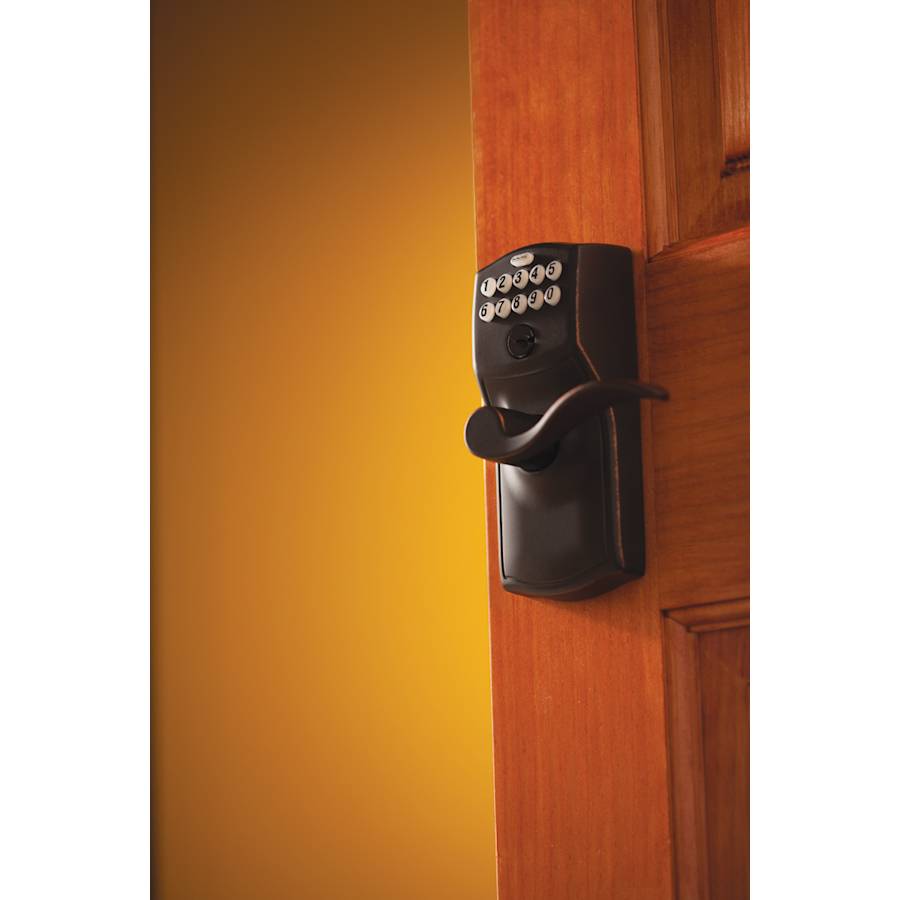

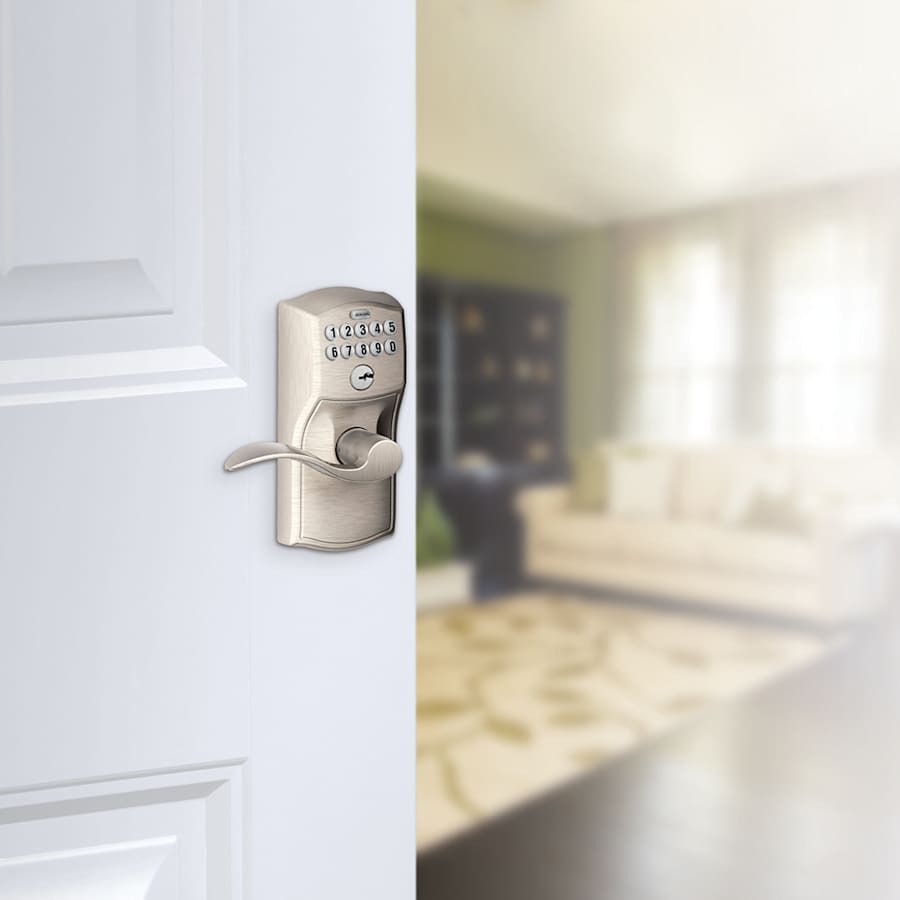

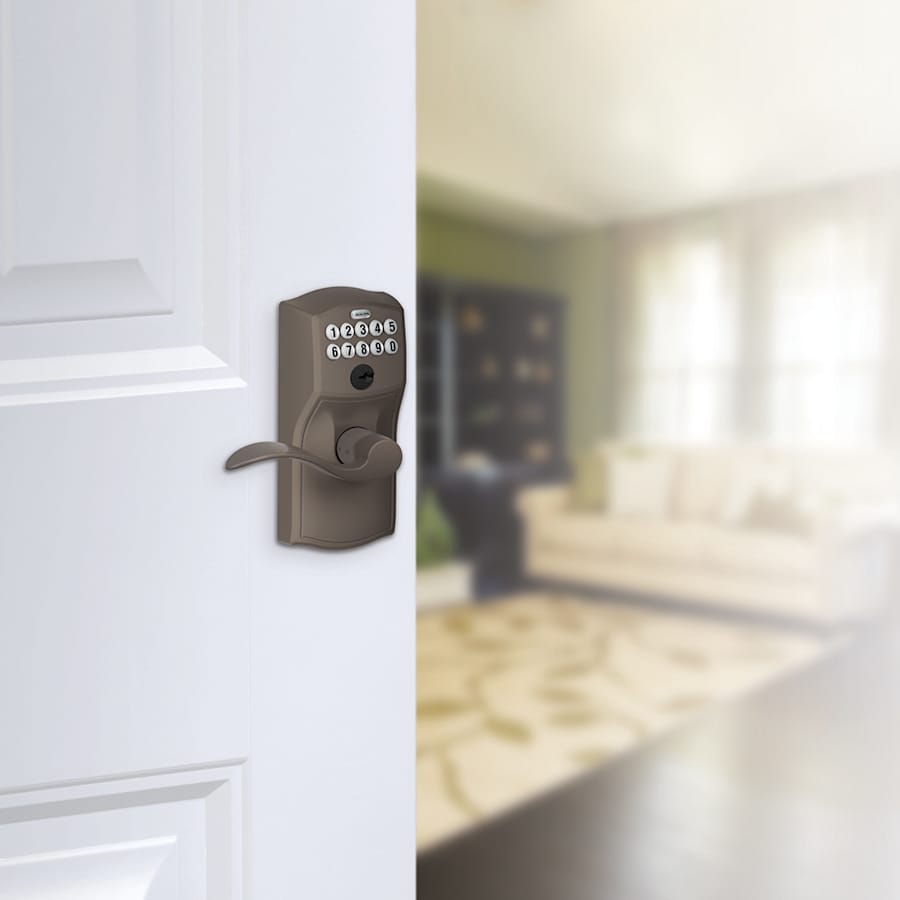

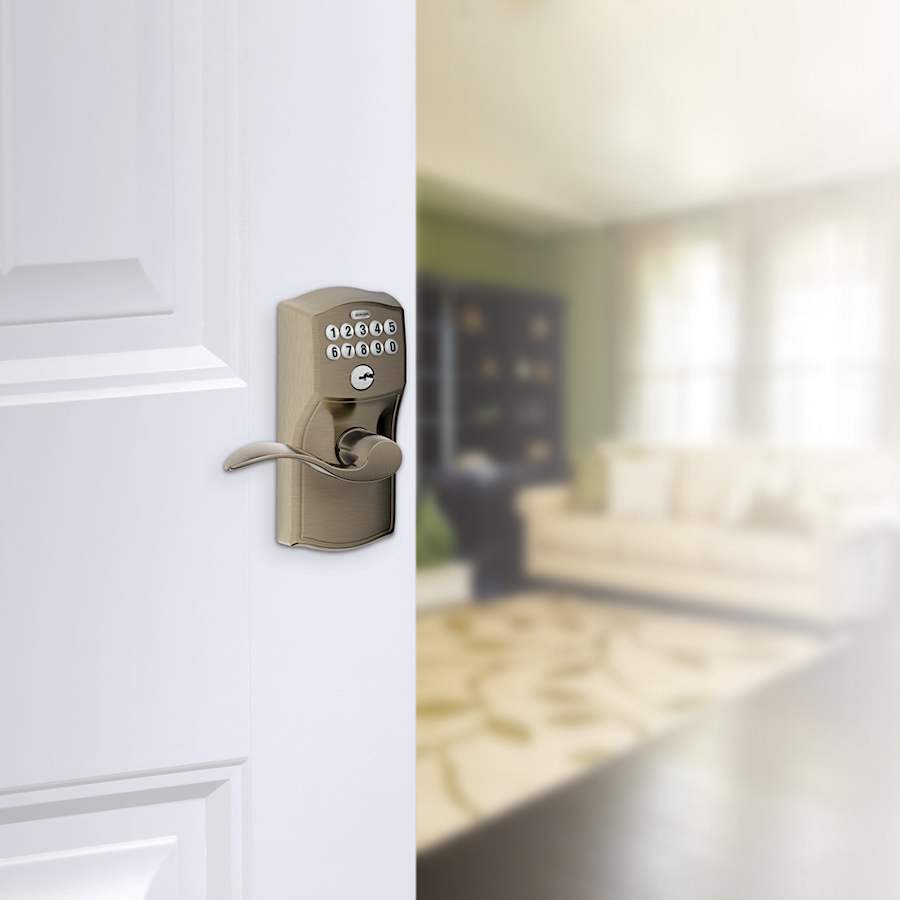

Keypad Entry Function with Flex Lock: This leverset is temporarily unlocked from the exterior with either the keypad or a key and then automatically relocks after five seconds. From the interior the lever is always free to open the door but does not unlock the leverset. The flex lock interior thumbturn activates and deactivates the autolock feature allowing the lock to remain unlocked if needed. This leverset is ideal for utility closets, storage rooms, basement stairways, cleaning supply closets, etc.
Schlage Works for You
Features:
Flexibility to choose; switch from automatic relocking to unlocked as needed
Provides additional layers of keyless security and protection inside your home or office

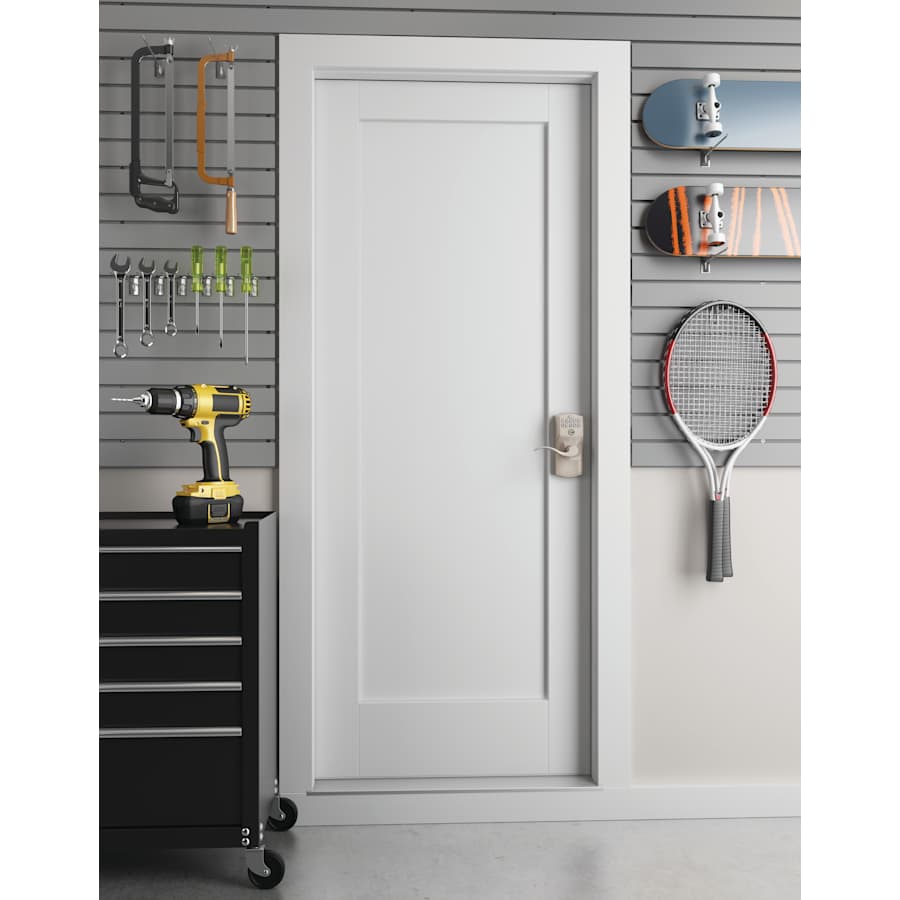

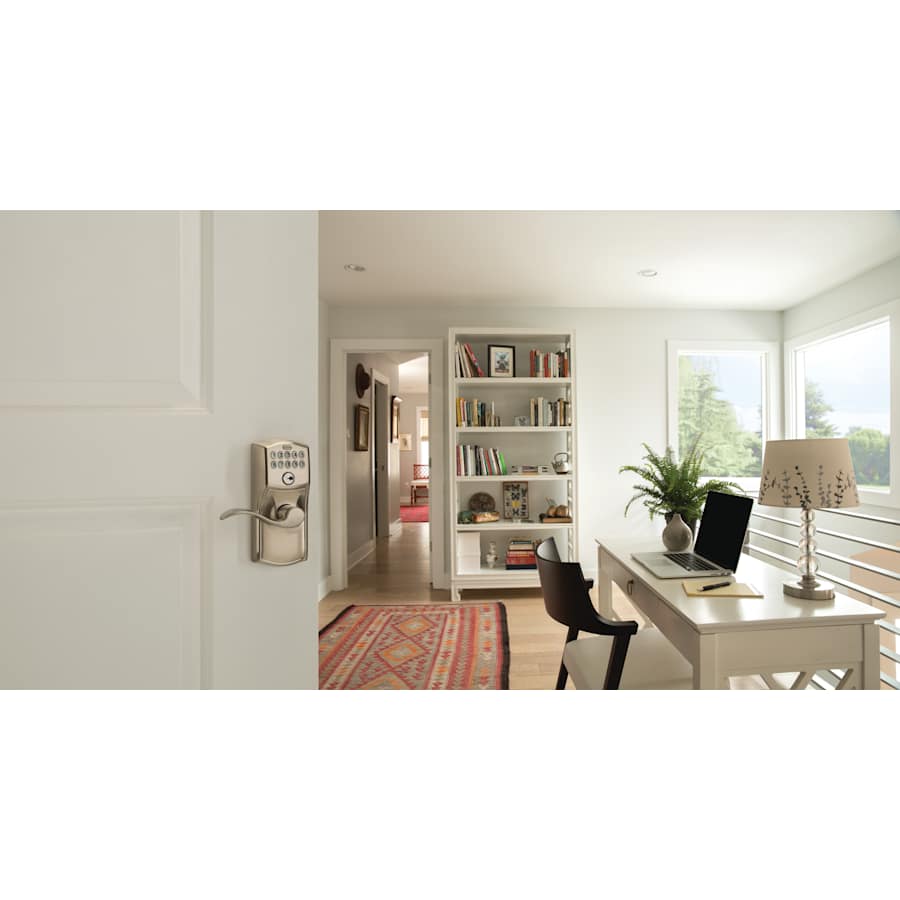

Ideal for garage entry doors, home offices, computer rooms, utility rooms, etc.
Easily replace most existing locks with a screwdriver in about 30 minutes
No programming required; preset with two user codes so it’s ready to use right out of the box
May be easily reprogrammed with up to 19 additional user codes for maximum flexibility
Faceplates (Part 16-211): Supplied with 1/4″ Round Corner, Square Corner and Drive-In Faceplates
Strike Plates (Part 10-063): Supplied with Square Corner and Round Corner Full Lip Strike Plates (Dimensions: 2-1/4″ x 1-5/8″)
Specifications:
Backset: Adjustable for either 2-3/4″ or 2-3/8″
Crossbore: 2-1/8″
Edgebore: 1″
Door Thickness: 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″
Handing: Reversible (left or right hand application)
Cylinder: 5 Pin Schlage C
Battery Size: 9V
Battery Life: 3 Years
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Camelot Collection
Specifications
| Thermostat | Traditional |
| Style | Functional |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Handshower | Left, Reversible, Right |
| Function | Keyless Entry, Electronic Keyless Entry |
| Cylinder | 5 Pin Schlage C |
| Cylinder Type | Single Cylinder |
| Keyway | C123, C |
| Rosette Shape | Arch |
| Lever Shape | Scroll, Wave |
| Insulation Type | Keypad |
| Number of Codes | 19 |
| Remote Access | No |
| Handle Design | Accent |
| Trim Design | Camelot |
| Auto-Lock Capable | Yes |
| Lit Keypad | Yes |
| Temporary Access | No |
| Usage Monitoring | No |
| Approved for Commercial Use | No |
| Collection | Accent, Camelot, Electronic Security, Keypad |
| ADA | Yes |
| Series | FE-Series |
| Certifications | ANSI |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 2 |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Color | Aged Bronze, Antique Brass, Antique Pewter, Lifetime Polished Brass, Oil Rubbed Bronze, Satin Chrome, Matte Black, Polished Chrome, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
