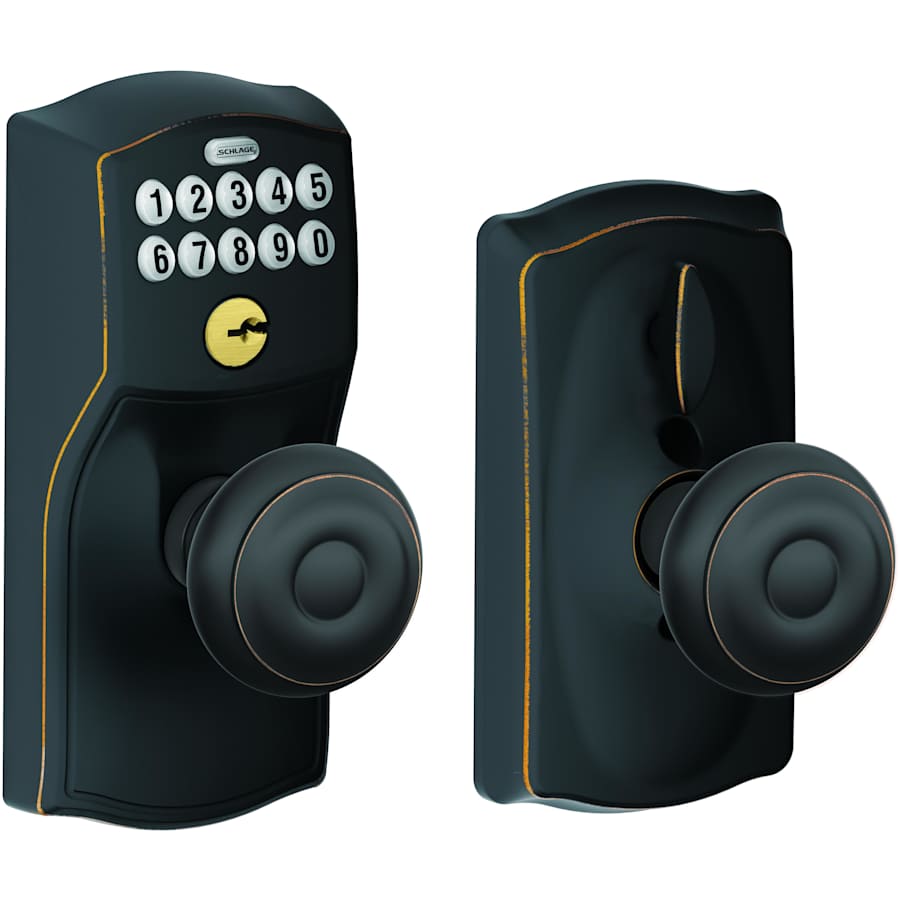

Keypad Entry Function with Flex Lock: This knobset is temporarily unlocked from the exterior with either the keypad or a key and then automatically relocks after five seconds. From the interior the knob is always free to open the door but does not unlock the knobset. The flex lock interior thumbturn activates and deactivates the autolock feature allowing the lock to remain unlocked if needed. This knobset is ideal for utility closets, storage rooms, basement stairways, cleaning supply closets, etc.
Schlage Works for You
Features:
Interior screws are exposed
Flex lock allows the automatic locking feature to be enabled and disabled with ease
Automatic lock mode activates the lock after 5 seconds; no need to remember to relock the door
Easily replace most existing locks with a screwdriver in about 30 minutes
No programming required; preset with two user codes so it’s ready to use right out of the box
Faceplates (Part 16-211): Supplied with 1/4″ Round Corner, Square Corner and Drive-In Faceplates
Strike Plates (Part 10-063): Supplied with Square Corner and Round Corner Full Lip Strike Plates (Dimensions: 2-1/4″ x 1-5/8″)
This knobset is usable for both left and right handed applications
Specifications:
Backset: Adjustable for either 2-3/4″ or 2-3/8″
Crossbore: 2-1/8″
Edgebore: 1″
Door Thickness: 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″
Cylinder: 5 Pin Schlage C
Battery Size: 9V
Battery Life: 3 Years
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Camelot Collection
Specifications
| Thermostat | Traditional |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Style | Functional |
| Cylinder | 5 Pin Schlage C |
| Cylinder Type | Single Cylinder |
| Function | Keyless Entry, Electronic Keyless Entry |
| Keyway | C123, C |
| Rosette Shape | Arch |
| Knob Shape | Round |
| Trim Design | Camelot |
| Auto-Lock Capable | Yes |
| Insulation Type | Keypad |
| Lit Keypad | Yes |
| Remote Access | No |
| Temporary Access | No |
| Usage Monitoring | No |
| Handle Design | Georgian |
| Number of Codes | 19 |
| ADA | No |
| Collection | Keypad, Camelot, Electronic Security, Georgian |
| Approved for Commercial Use | No |
| Series | FE-Series |
| Certifications | ANSI |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 2 |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Battery Size | 9-Volt |
| Color | Aged Bronze, Antique Brass, Lifetime Polished Brass, Matte Black, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones |
