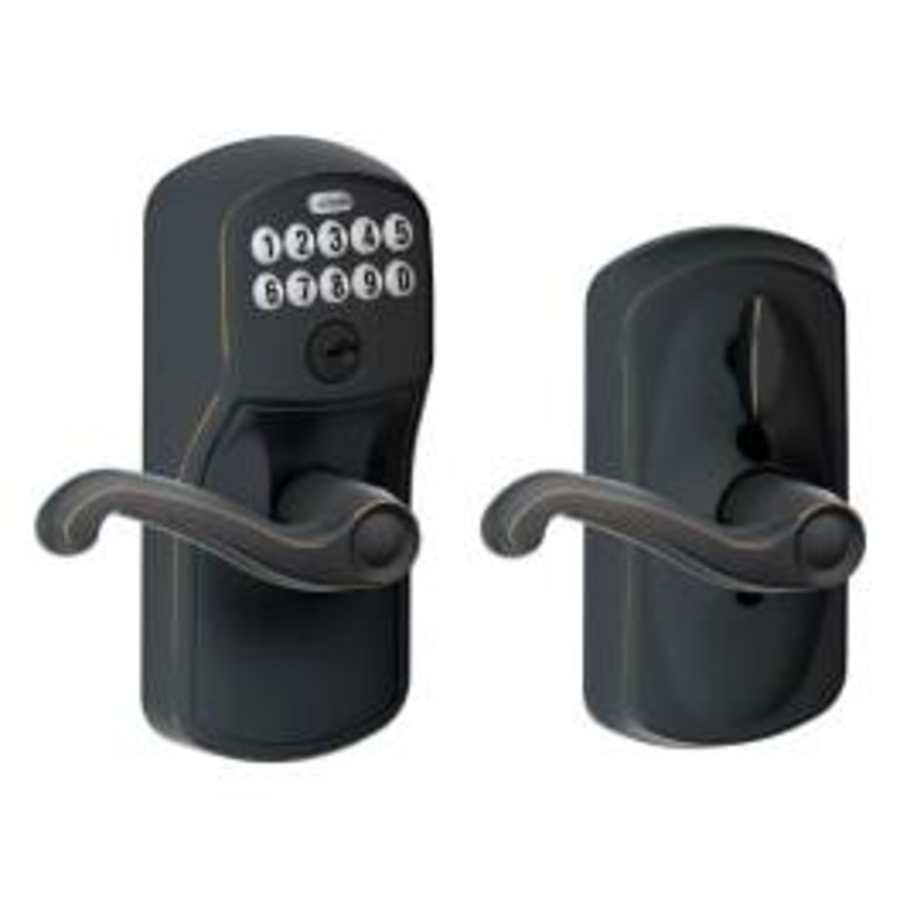

Keypad Entry Function with Flex Lock: This leverset is temporarily unlocked from the exterior with either the keypad or a key and then automatically relocks after five seconds.  From the interior the lever is always free to open the door but does not unlock the leverset. The flex lock interior thumbturn activates and deactivates the autolock feature allowing the lock to remain unlocked if needed. This leverset is ideal for utility closets, storage rooms, basement stairways, cleaning supply closets, etc.
Features:
Interior screws are exposed
Flex lock allows the automatic locking feature to be enabled and disabled with ease
Automatic lock mode activates the lock after 5 seconds; no need to remember to relock the door
Easily replace most existing locks with a screwdriver in about 30 minutes
No programming required; preset with two user codes so it’s ready to use right out of the box
Faceplates (Part 16-211): Supplied with 1/4″ Round Corner, Square Corner and Drive-In Faceplates
Strike Plates (Part 10-063): Supplied with Square Corner and Round Corner Full Lip Strike Plates (Dimensions: 2-1/4″ x 1-5/8″)
The handing is adjustable for both left and right handed applications
Specifications:
Backset: Adjustable for either 2-3/4″ or 2-3/8″
Crossbore: 2-1/8″
Edgebore: 1″
Door Thickness: 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″
Cylinder: 5 Pin Schlage C
Battery Size: 9V
Battery Life: 3 Years
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Plymouth Collection
Specifications
| Thermostat | Traditional |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Rosette Shape | Oval |
| Auto-Lock Capable | Yes |
| Cylinder Type | Single Cylinder |
| Function | Keyless Entry, Electronic Keyless Entry |
| Insulation Type | Keypad |
| Lit Keypad | Yes |
| Number of Codes | 19 |
| Remote Access | No |
| Style | Functional |
| Temporary Access | No |
| Usage Monitoring | No |
| Cylinder | 5 Pin Schlage C |
| Keyway | C123, C |
| Lever Shape | Scroll |
| Trim Design | Plymouth |
| Handle Design | Flair |
| Approved for Commercial Use | No |
| Collection | Electronic Security, Flair, Plymouth, Keypad |
| ADA | Yes |
| Certifications | ANSI |
| Series | FE-Series |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 2 |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Battery Size | 9-Volt |
| Color | Aged Bronze, Antique Brass, Antique Pewter, Lifetime Polished Brass, Oil Rubbed Bronze, Polished Chrome, Satin Chrome, Satin Nickel |
| Color Tone | Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
