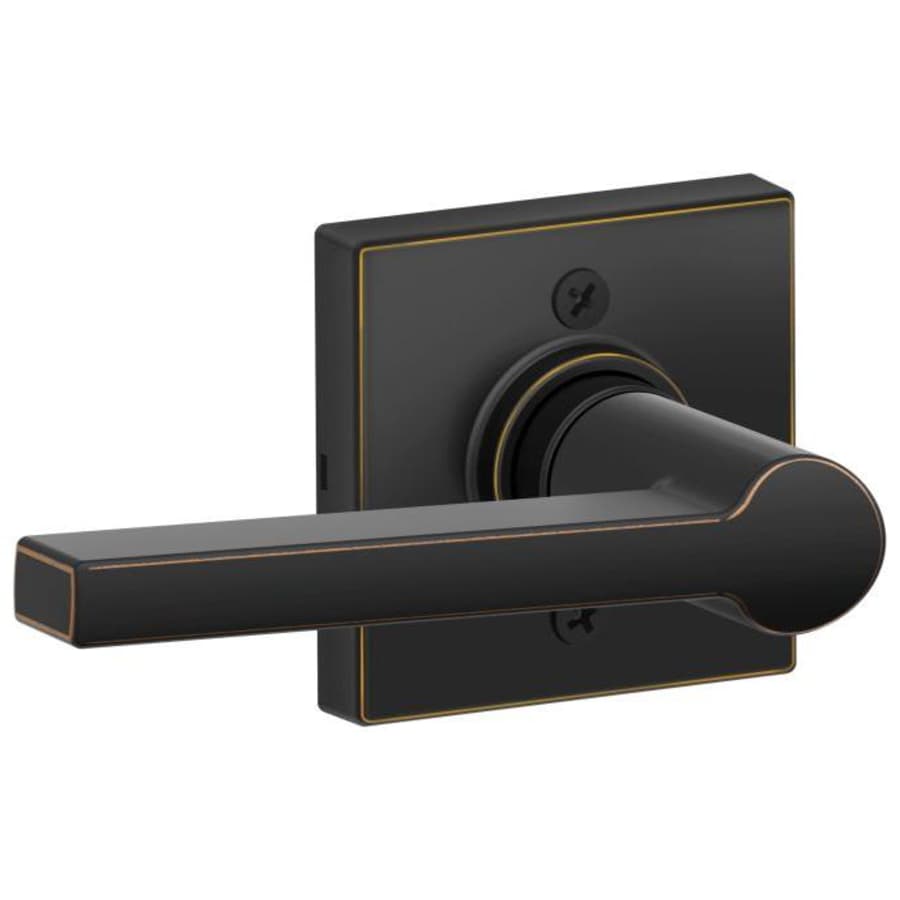

This lever is a dummy trim for one side of the door. Used for a door pull or as matching, non-turning trim.
Single Dummy Function: Utilize this single dummy lever to create a uniform look throughout your home in the areas that do not require mechanical systems. Dummy levers are surface mounted with no locking mechanism and are used primarily for the inactive door in a double door installation serving as a pull.
Features:
Exceeds criteria for BHMA Grade 3 certification
Quality craftsmanship ensures durability and premium feel
Reversible handing installs on both left and right handed doors
Easily installs on any standard prepared door with one screwdriver
Covered under a limited lifetime mechanical and 5 year finish warranty
Complies with standards of the Americans with Disabilities Act (ADA)
All necessary mounting hardware is included
Product Technologies:
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take less than an hour.
These levers are field reversible allowing this leverset to be used for both right and left handed applications with ease and eliminating any chance of getting a wrong handed product.
Specifications:
Handing: Reversible Left or Right
Door Thickness: 1-3/8″ to 1-3/4″
Handle Length: 4-3/8″
Handle Projection: 2-3/8″
Material: Zinc
Product Variations:
J170-SOL-COL (This Model): Single Dummy Lever
J10-SOL-COL: Passage Door Lever Set
J40-SOL-COL: Privacy Door Lever Set
J54-SOL-COL: Single Cylinder Keyed Entry Door Lever Set
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Solstice Collection
Specifications
| Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
| Collection | Solstice |
| Series | J-Series |
| Approved for Commercial Use | No |
| ADA | Yes |
| Certifications | ANSI |
| ANSI Certification | A156.2 |
| Fire Rated | No |
| Material | Zinc |
| Thermostat | Modern |
| Concealed Screws | No |
| Function | Single Dummy |
| Handshower | Left, Reversible, Right |
| Handle Design | Solstice |
| Rosette Shape | Square |
| Trim Design | Collins |
| Lever Shape | Square, Straight |
| Handle Projection | 2.375 in. |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Edge Bore | 1" |
| Trim Height | 2.5 in. |
| Trim Width | 2.5 in. |
| Handle Length | 4.375 in. |
| Color | Aged Bronze, Bright Chrome, Satin Chrome, Matte Black, Satin Nickel |
| Color Tone | Blacks, Bronze Tones, Nickel Tones, Silver Tones |
