Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Â

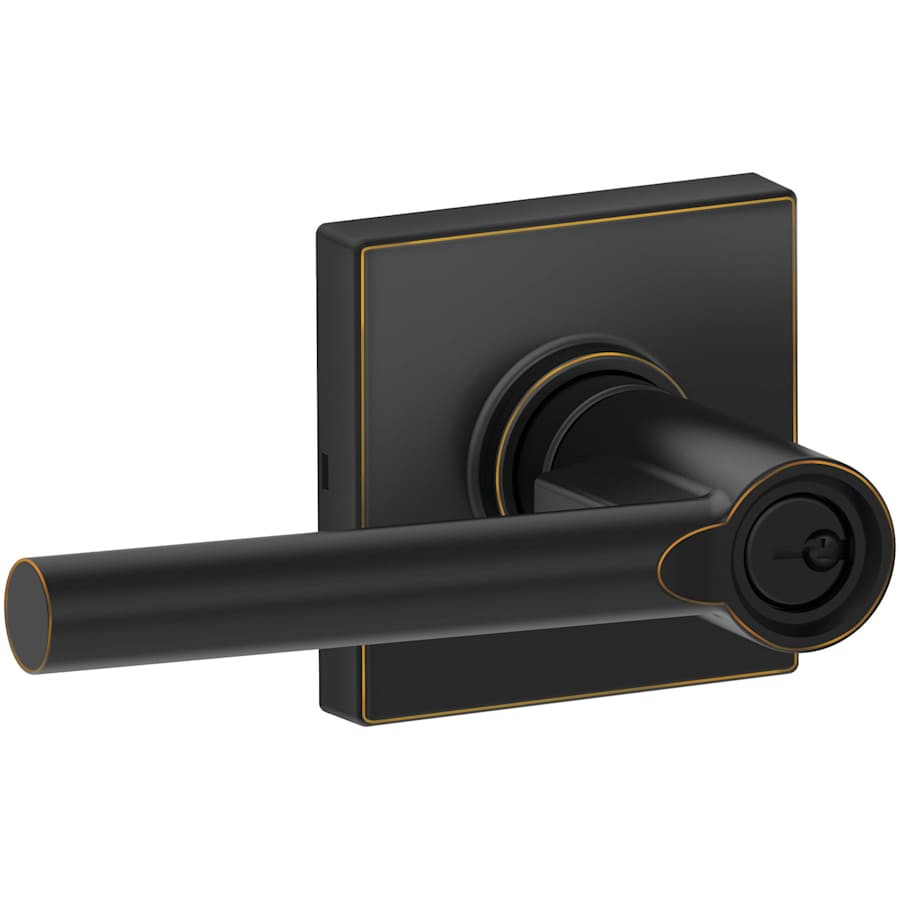

Keyed Entry (Single Cylinder) Function: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.
Â
Features:
Exceeds criteria for BHMA Grade 3 certification
Quality craftsmanship ensures durability and premium feel
Reversible handing installs on both left and right handed doors
Easily installs on any standard prepared door with one screwdriver
Includes a round corner, square corner, and drive-in latch faceplate
Covered under a limited lifetime mechanical and 5 year finish warranty
Does not meet the standards the Americans with Disabilities Act (ADA)
All necessary mounting hardware is included
Product Technologies:
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take less than an hour.
These levers are field reversible allowing this leverset to be used for both right and left handed applications with ease and eliminating any chance of getting a wrong handed product.
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Handing: Reversible Left or Right
Door Thickness: 1-3/8″ to 1-3/4″
Handle Length: 4-3/8″
Handle Projection: 2-1/4″
Latch Faceplate: Drive-In, Round Corner, or Square Corner
Material: Zinc
Cylinder: 5 Pin C Keyway
Product Variations:
J170-BRW-COL: Single Dummy Lever
J10-BRW-COL: Passage Door Lever Set
J40-BRW-COL: Privacy Door Lever Set
J54-BRW-COL (This Model): Single Cylinder Keyed Entry Door Lever Set
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Broadway Collection
Specifications
| Thermostat | Modern |
| Material | Zinc |
| Concealed Screws | No |
| Function | Keyed Entry |
| Handshower | Left, Reversible, Right |
| Rosette Shape | Square |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Lever Shape | Round, Straight |
| Cylinder | 5 Pin C |
| Cylinder Type | Single Cylinder |
| Keyway | C |
| Number of Keys | 2 |
| Trim Design | Collins |
| Handle Design | Broadway |
| Panic Proof | No |
| Collection | Broadway |
| Certifications | ANSI |
| Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
| ADA | No |
| Approved for Commercial Use | No |
| Series | J-Series |
| Fire Rated | No |
| BHMA Certification | Grade 3 |
| ANSI Certification | A156.2 |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Handle Projection | 2.25 in. |
| Trim Height | 2.5 in. |
| Trim Width | 2.5 in. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Edge Bore | 1" |
| Handle Length | 4.375 in. |
| 28 Degree Latch | No |
| Cylinder Included | Yes |
| Color | Aged Bronze, Bright Chrome, Matte Black, Satin Chrome, Satin Nickel |
| Color Tone | Blacks, Bronze Tones, Nickel Tones, Silver Tones |
