Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Â

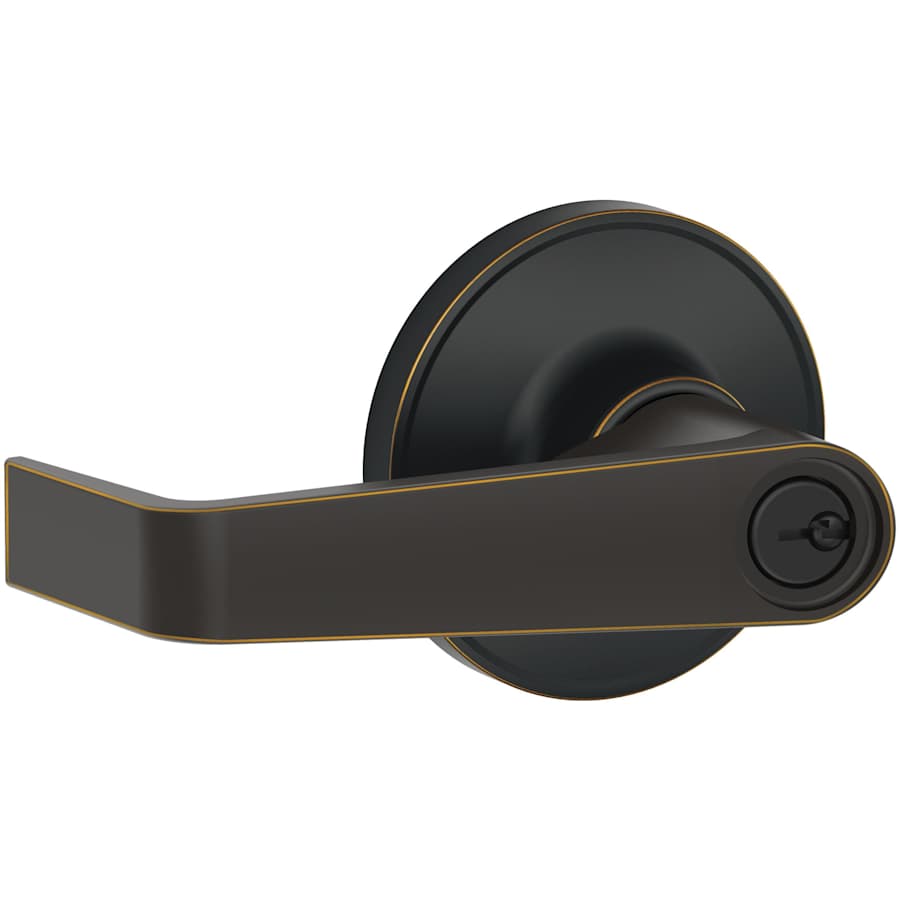

Keyed Entry (Single Cylinder) Function: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.
Â
Features:
ANSI/BHMA A156.39 Grade 3
All metal construction for long lasting performance
Reversible lever allows for use as both right-hand and left-hand levers
Easy installation makes for a one-person project
Manufacturer offers a limited lifetime mechanical and 5 year finish warranty
Specifications:
Door Thickness: 1-3/8″ to 1-3/4″
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Handle Length: 4-3/16″
Handle Projection: 2-5/8″
Trim Height: 2-5/8″
Trim Width: 5-3/16″
Cylinder: 5 Pin
Handing: Reversible
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Marin Collection
Specifications
| Thermostat | Transitional |
| Material | Zinc |
| Handshower | Left, Reversible, Right |
| Handle Material | Zinc |
| Style | Contemporary/Modern |
| Latch Faceplate | Round Corner |
| Concealed Screws | Yes |
| Cylinder | 5 Pin Schlage C |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Keyway | C |
| Rosette Shape | Round |
| Locking Mechanism | Thumbturn |
| Lever Shape | Straight, Square |
| Handle Design | Marin |
| Approved for Commercial Use | No |
| Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
| Collection | Marin |
| Series | J Series |
| ANSI Certification | A156.39 |
| Certifications | ANSI |
| ADA | Yes |
| BHMA Certification | Grade 3 |
| Fire Rated | No |
| Product Weight | 1.7175 lbs. |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.44 in. |
| Trim Height | 2.63 in. |
| Trim Width | 5.2 in. |
| Handle Length | 4.1875 in. |
| Cylinder Included | Yes |
| Color | Aged Bronze, Bright Chrome, Matte Black, Satin Chrome, Satin Nickel, Satin Stainless Steel |
| Color Tone | Blacks, Bronze Tones, Nickel Tones, Silver Tones, Stainless Steel |
