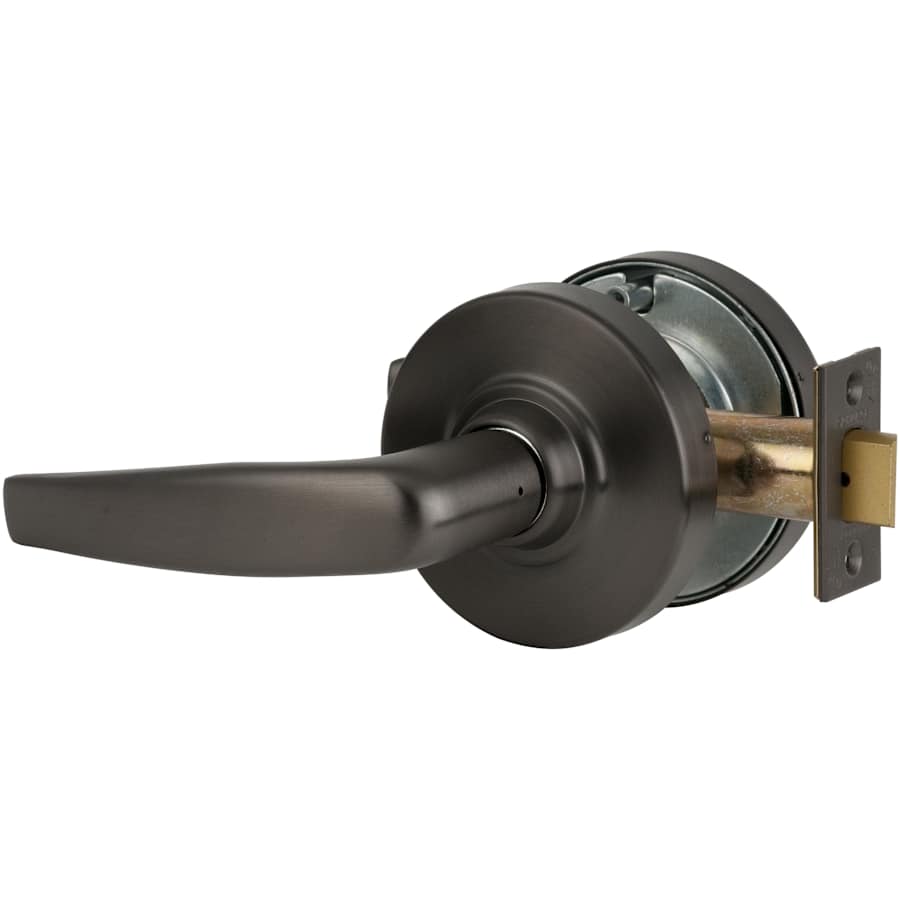

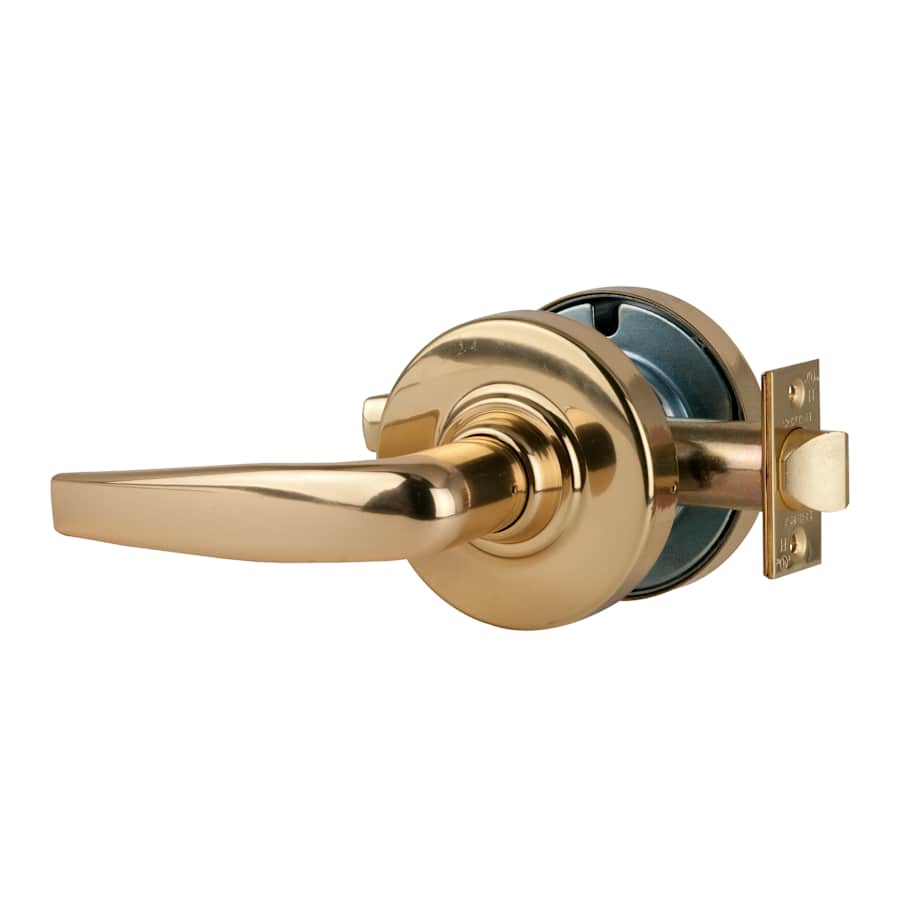

Passage Function: Schlage’s passage door lever sets have no locking function and are free turning on both sides. These levers are perfect for a hallway or closet where a lock isn’t necessary. Passage levers can also be used in conjunction with a deadbolt to secure an entrance or back door.
Product Features:
Field reversible, giving you confidence that this lever can be installed in a variety of locations
BHMA/ANSI A156.2Â Grade 1 certified
Door thickness kit Schlage XN12012613 available for 1-3/8″ and 1-1/2″ doors
Fire Rated: Yes
Panic Proof: Yes
ADA approved
10-year limited manufacturer warranty
Â
Specifications:
Backset: 2-3/4″, 3-3/4″, 5″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-5/8″ to 2-1/8″
Handle Length: 4.5625″
Handing: Reversible
Handle Design: Athens
Latch Faceplate: Square corner (1-1/8″ x 2-1/4″)
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
| Thermostat | Transitional |
| Handshower | Left, Reversible, Right |
| Style | Commercial |
| Latch Faceplate | Square Corner |
| Handle Material | Metal |
| Function | Passage |
| Lever Shape | Straight |
| Rosette Shape | Round |
| Interconnected | No |
| Panic Proof | Yes |
| Concealed Screws | Yes |
| Mortise | No |
| Manufacturer Warranty | 10 Year Limited |
| Approved for Commercial Use | Yes |
| Collection | Athens |
| Series | ND-Series |
| ADA | Yes |
| Certifications | ANSI, UL |
| BHMA Certification | Grade 1 |
| ANSI Certification | A156.2 |
| Fire Rated | Yes |
| Door Thickness | 1-5/8", 1-7/8", 2", 2-1/8" |
| Backset | 2-3/4", 5" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Length | 4.5625 in. |
| Color | Flat Black |
| Color Tone | Blacks |
