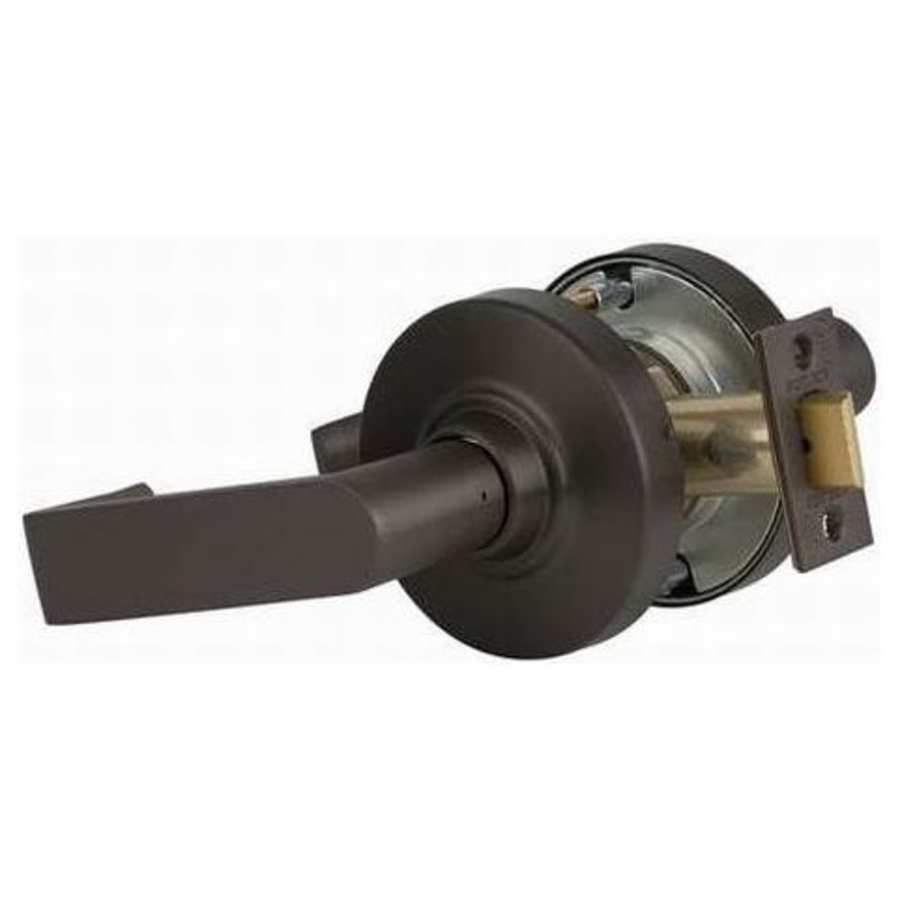

Exit Lock from the Rhodes Collection
Outside lever always fixed
Inside lever always unlocked
Features Rhodes style levers
Latch: 1 1/8″ x 2 1/4″, Square corner faceplate, 1″ housing diameter, 1/2″ throw
Strike: 1/4″ x 4 7/8″, ANSI, Square corner, no box
Cylinder: 6-Pin solid brass, keyed 6-pin, C123 keyway
Door Range: Standard Lock Functions: 1 5/8″ – 2″, Vandlgard Lock Function: 1 5/8″ – 1 7/8″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
Characteristics and Features
| Thermostat | Modern |
| Concealed Screws | Yes |
| Handshower | Left, Reversible |
| Rosette Shape | Round |
| Function | Passage, Exit Only |
| Handle Material | Metal |
| Lever Shape | Straight |
| Style | Commercial |
| Handle Design | Rhodes |
| Mortise | No |
Warranty and Product Information
| ADA | Yes |
| Collection | Rhodes |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 10 Year Limited |
| Certifications | ANSI, UL |
| Series | ND-Series |
| ANSI Certification | A156.2 |
Dimensions and Measurements
| Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2", 2-1/8" |
| Backset | 2-3/4", 3-3/4", 5" |
| Handle Length | 4.875 in. |
| Color | Oil Rubbed Bronze |
| Color Tone | Bronze Tones |
