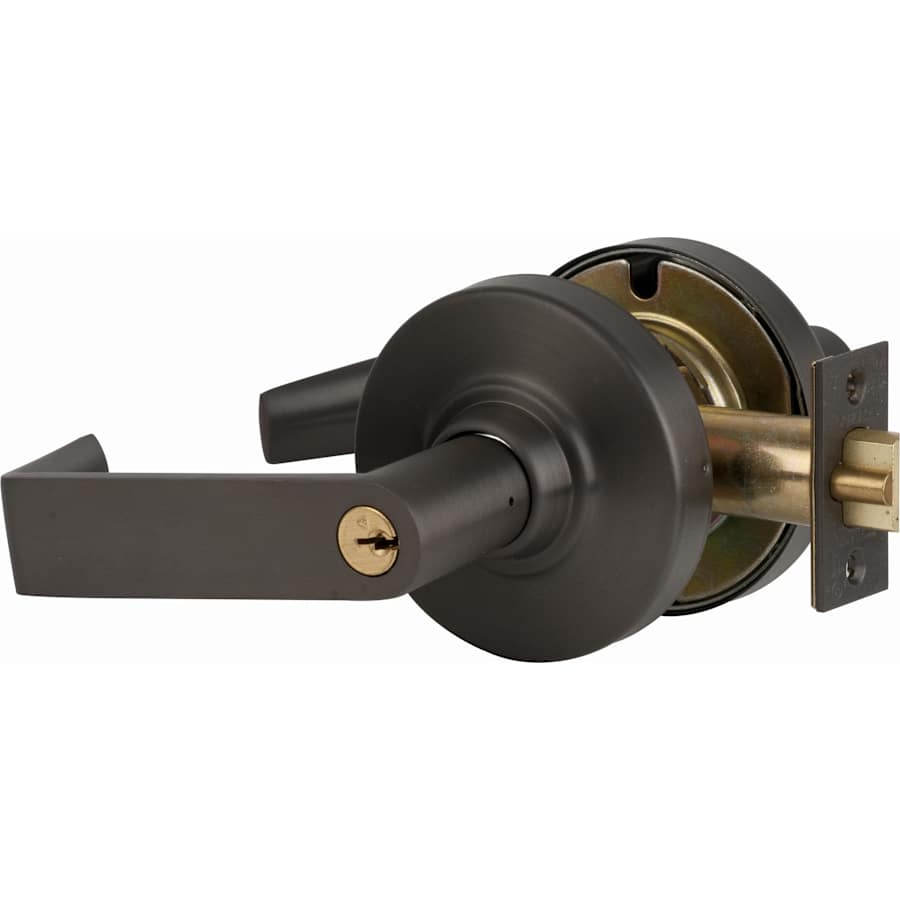

Schlage Rhodes Heavy Duty Entrance Door Lever Set

Single Cylinder Keyed Entry Function: Single cylinder keyed entry door lever is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the push-button locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.

Features:

Meets ANSI/BHMA A156.2 Grade 1 security standards
All metal construction for durability and long lasting quality
Handing is reversible for either left or right door configurations
Easily install into any standard prepared door
ADA approved
10-year limited manufacturer warranty
Fire Rated: Yes
Panic Proof: Yes

Product Technologies:

Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take less than an hour.

These levers are field reversible allowing this leverset to be used for both right and left handed applications with ease and eliminating any chance of getting a wrong handed product.

Specifications:

Backset: 2-3/4″, 2-3/8″, 3-3/4″, or 5″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-5/8″ to 2-1/8″
Handing: Reversible
Handle Design: Rhodes
Lever Length: 4.875″
Projection: 2.9375″
Faceplate: Square corner (1-1/8″ x 2-1/4″)
Cylinder: C Keyway 6 Pin
