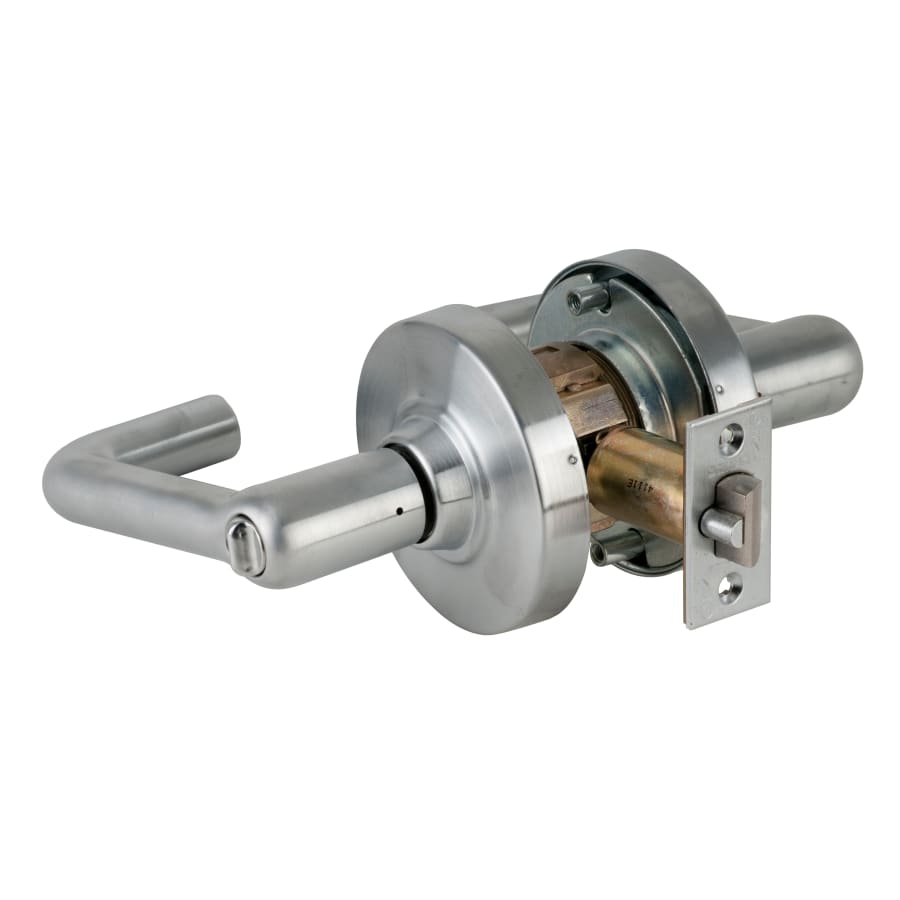

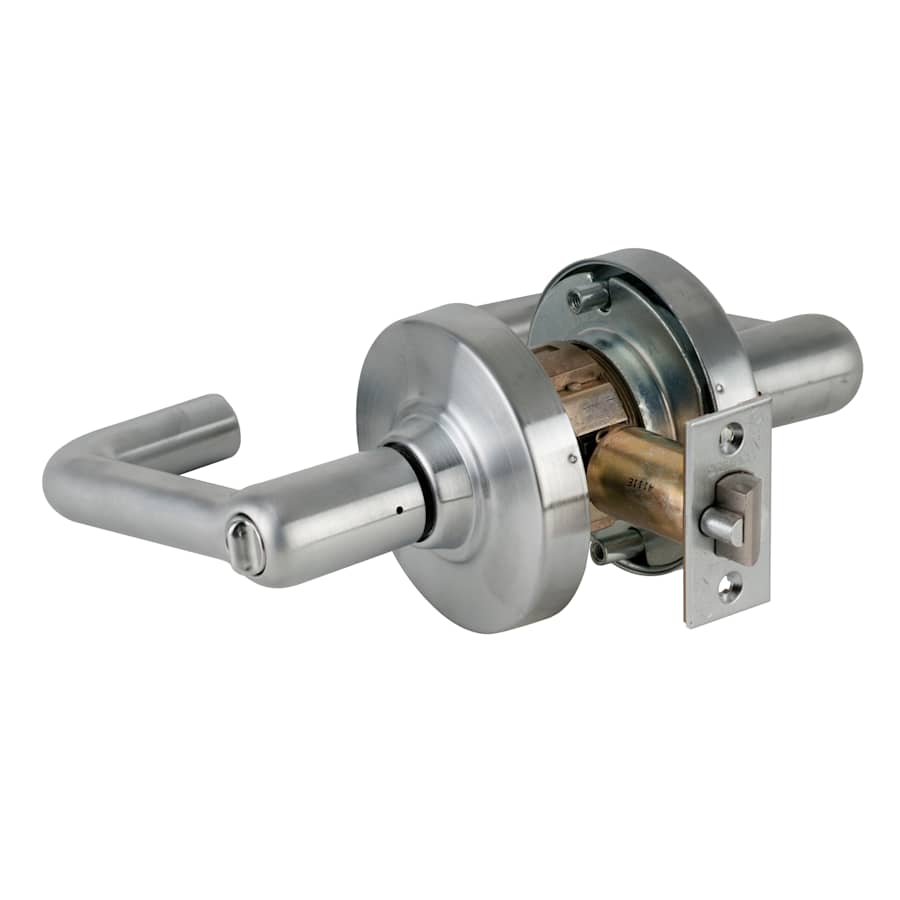

Push Button Entrance Lock from the Tubular Collection
Turn/push-button locking; pushing and turning button locks outside lever, requiring use of key until button is manually unlocked.
Push-button locking; pushing button locks outside lever until unlocked by key or by turning inside lever.
Latch: 1 1/8″ x 2 1/4″, Square corner faceplate, 1″ housing diameter, 1/2″ throw
Strike: 1/4″ x 4 7/8″, ANSI, Square corner, no box
Cylinder: Schlage C Keyway 6 Pin
Door Thickness: Standard Lock Functions: 1 5/8″ – 2″, Vandlgard Lock Function: 1 5/8″ – 1 7/8″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 10 Year Limited |
| Collection | Tubular |
| Series | ND-Series |
| ANSI Certification | A156.2 |
| Certifications | ANSI, UL |
| ADA | Yes |
| Fire Rated | Yes |
Characteristics and Features
| Handshower | Reversible, Right |
| Handle Material | Metal |
| Style | Commercial |
| Concealed Screws | Yes |
| Cylinder | 6 Pin Schlage C, 6 Pin |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry, Entrance |
| Keyway | C, C123 |

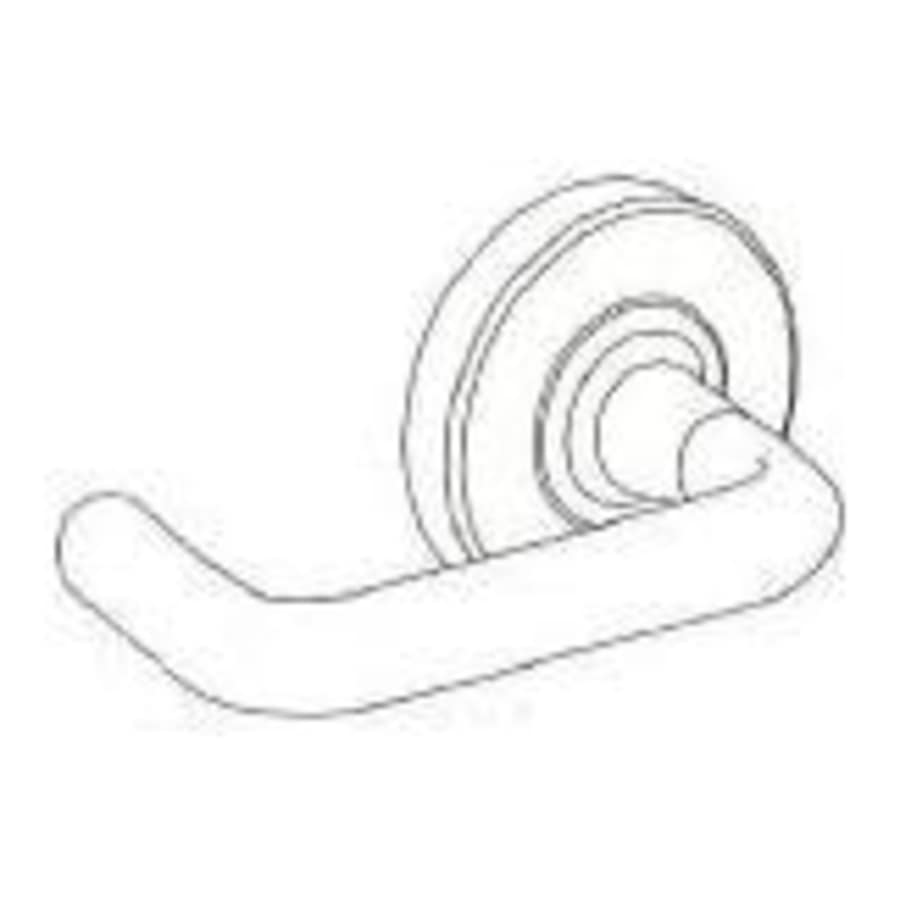

| Lever Shape | Round, Straight |
| Panic Proof | Yes |
| Interconnected | No |
| Handle Design | Tubular |
| Mortise | No |
Dimensions and Measurements
| Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2", 2-1/8" |
| Backset | 2-3/4", 2-3/8", 3-3/4", 5" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Length | 4.9375 in. |
Included Components
| Interchangeable Core | No |
| Color | Oil Rubbed Bronze |
| Color Tone | Bronze Tones |
