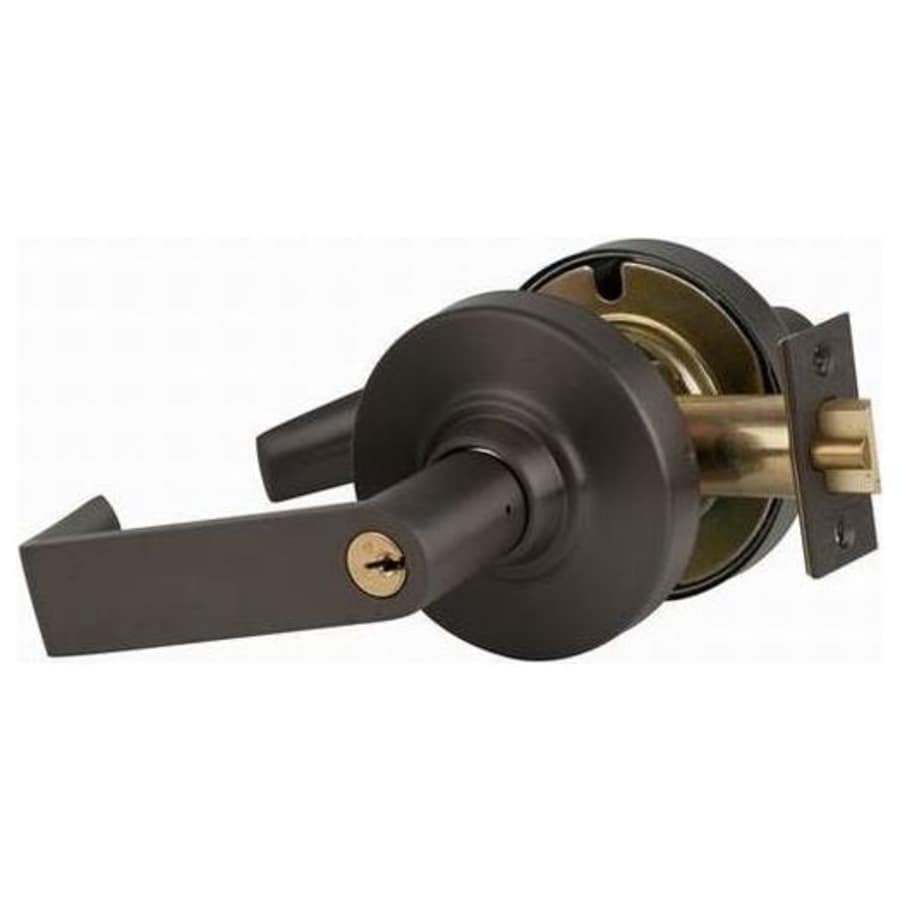

Single Cylinder Keyed Vestibule Function: This lock is opened by a key from the outside when it has been locked by a key on the inside. The inside lever is always unlocked and is always free for immediate egress. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.
Features:
Small Format Interchangeable Core (SFIC) is not included – options are provided for Schlage C keyway
Meets ANSI/BHMA Certification A156.2/Grade 1
All metal construction for durability
Left or right handing allows versatile application
This product is compliant with ADA standards
Panic Proof: Yes
Fire Rated: Yes
This lever and trim have concealed screws
Product Technologies:
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take less than an hour.
These levers are field reversible allowing this leverset to be used for both right and left handed applications with ease and eliminating any chance of getting a wrong handed product.
Specifications:
Lever Length: 4-7/8″
Handing: Reversible (left or right)
Backset:Â 2-3/4″, 2-3/8″, 3-3/4″, 5″
Door Thickness:Â 1-3/4″, 1-5/8″, 1-7/8″, 2″, 2-1/8″
Handle Design: Rhodes
Cylinder: Schlage 6-Pin C Keyway
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
| Thermostat | Modern |
| Handshower | Left, Reversible, Right |
| Style | Commercial |
| Handle Material | Metal |
| Function | Keyed Entry, Vestibule |
| Cylinder | 6 Pin Schlage C, 6 Pin |
| Cylinder Type | Double Cylinder, Single Cylinder |
| Keyway | C123, C |
| Lever Shape | Straight |
| Rosette Shape | Round |
| Interconnected | No |
| Panic Proof | Yes |
| Handle Design | Rhodes |
| Mortise | No |
| Manufacturer Warranty | 10 Year Limited |
| Approved for Commercial Use | Yes |
| Collection | Rhodes |
| Series | ND-Series |
| Certifications | ANSI |
| BHMA Certification | Grade 1 |
| ANSI Certification | A156.2 |
| Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2", 2-1/8" |
| Backset | 2-3/4", 2-3/8", 3-3/4", 5" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Length | 4.875 in. |
| Interchangeable Core | No |
| Color | Oil Rubbed Bronze |
| Color Tone | Bronze Tones |
