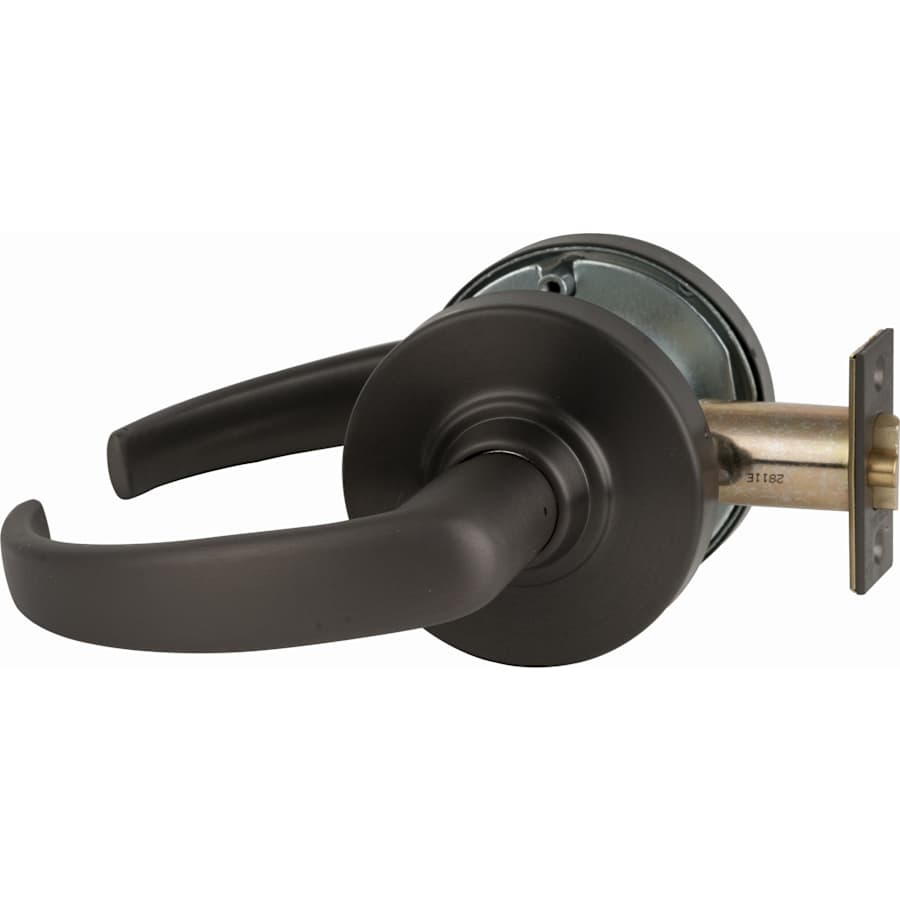

Storeroom Lock: The Storeroom function provides an outside lever that is fixed and allows entrance by use of a key only. The inside lever is always unlocked providing for panic proof exiting.
Features:
Cylinder options are provided for Schlage C keyway
Meets ANSI/BHMA Certification A156.2/Grade 1
All metal construction for durability
Left or right handing allows versatile application
This product is compliant with ADA standards
Panic Proof: Yes
Fire Rated: Yes
This lever and trim have concealed screws
Product Technologies:
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take less than an hour.
These levers are field reversible allowing this leverset to be used for both right and left handed applications with ease and eliminating any chance of getting a wrong handed product.
Specifications:
Lever Length: 5-1/4″
Lever Projection: 2-13/16″
Lever Rose Diameter: 3-7/16″
Handing: Reversible (left or right)
Backset:Â 2-3/4″, 2-3/8″, 3-3/4″, 5″
Door Thickness:Â 1-3/4″, 1-5/8″, 1-7/8″, 2″, 2-1/8″
Handle Design: Sparta
Cylinder: Cylinder: Schlage C Keyway 6-Pin
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
| Thermostat | Transitional |
| Style | Commercial |
| Latch Faceplate | Square Corner |
| Handshower | Left, Right |
| Function | Keyed Entry, Storeroom |
| Cylinder | 6 Pin Schlage C, 6 Pin |
| Handle Material | Metal |
| Cylinder Type | Single Cylinder |
| Keyway | C123, C |
| Interconnected | No |
| Panic Proof | Yes |
| Lever Shape | Straight |
| Handle Design | Sparta |
| Mortise | No |
| Approved for Commercial Use | Yes |
| Collection | Sparta |
| Manufacturer Warranty | 10 Year Limited |
| ADA | Yes |
| Series | ND-Series |
| Certifications | ANSI, UL |
| ANSI Certification | A156.2 |
| Fire Rated | Yes |
| BHMA Certification | Grade 1 |
| Door Thickness | 1-3/4", 1-7/8" |
| Backset | 2-3/4", 2-3/8", 3-3/4", 5" |
| Edge Bore | 1" |
| Cross Bore | 2-1/8" |
| Handle Length | 4.9375 in. |
| Color | Oil Rubbed Bronze |
| Color Tone | Bronze Tones |
