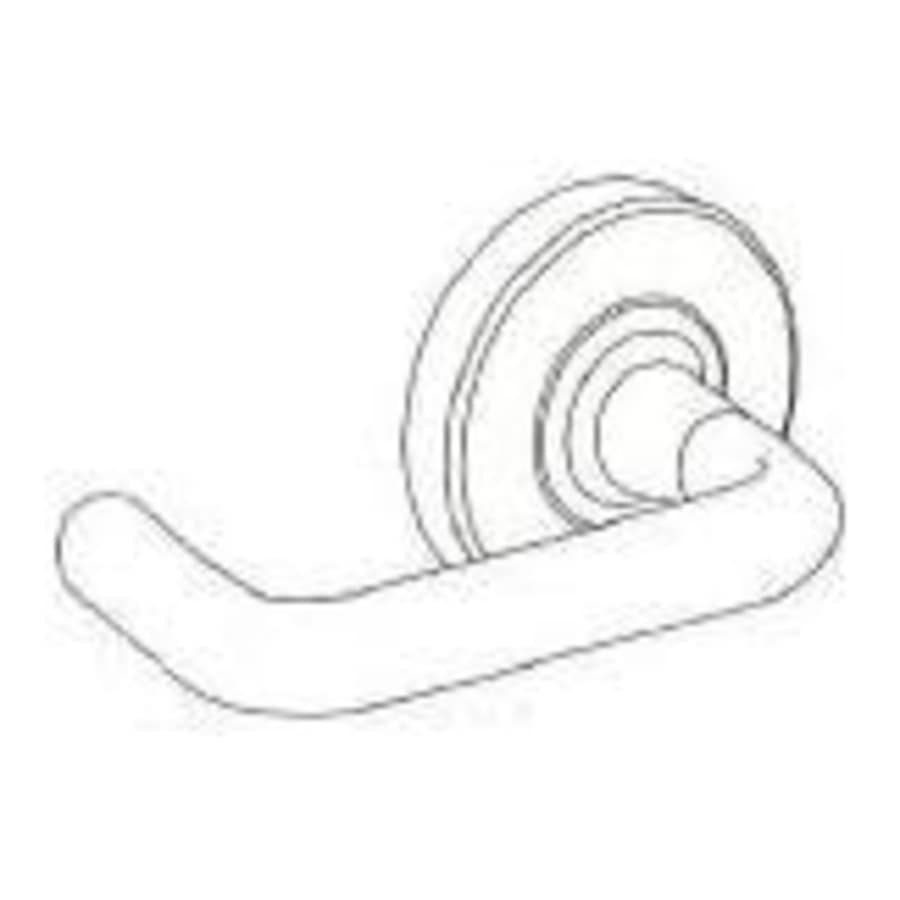

Institution Lever Lock from the Tubular Collection
Both levers fixed.
Entrance by key in either lever.
Latch: 1 1/8″ x 2 1/4″, Square corner faceplate, 1″ housing diameter, 1/2″ throw
Strike: 1/4″ x 4 7/8″, ANSI, Square corner, no box
Cylinder: Schlage C Keyway 6 Pin
Door Thickness: Standard Lock Functions: 1 5/8″ – 2″, Vandlgard Lock Function: 1 5/8″ – 1 7/8″
Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times or emergency and their use is not recommended. Installation should be in accordance with existing codes only.
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
Characteristics and Features
| Thermostat | Modern |
| Handle Material | Metal |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Square Corner |
| Concealed Screws | Yes |
| Cylinder | 6 Pin Schlage C, 6 Pin |
| Cylinder Type | Single Cylinder, Double Cylinder |
| Function | Asylum, Keyed Entry, Institutional |
| Keyway | C123, C |
| Panic Proof | No |
| Rosette Shape | Round |
| Lever Shape | Round, Straight |
| Interconnected | No |
| Handle Design | Tubular |
| Mortise | No |
Warranty and Product Information
| Collection | Tubular |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 10 Year Limited |
| Series | ND-Series |
| Certifications | ANSI, UL |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
Dimensions and Measurements
| Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2", 2-1/8" |
| Backset | 2-3/4", 2-3/8", 3-3/4" |
| Edge Bore | 1" |
| Cross Bore | 2-1/8" |
| Handle Length | 4.9375 in. |
Included Components
| Interchangeable Core | No |
| Color | Oil Rubbed Bronze |
| Color Tone | Bronze Tones |
