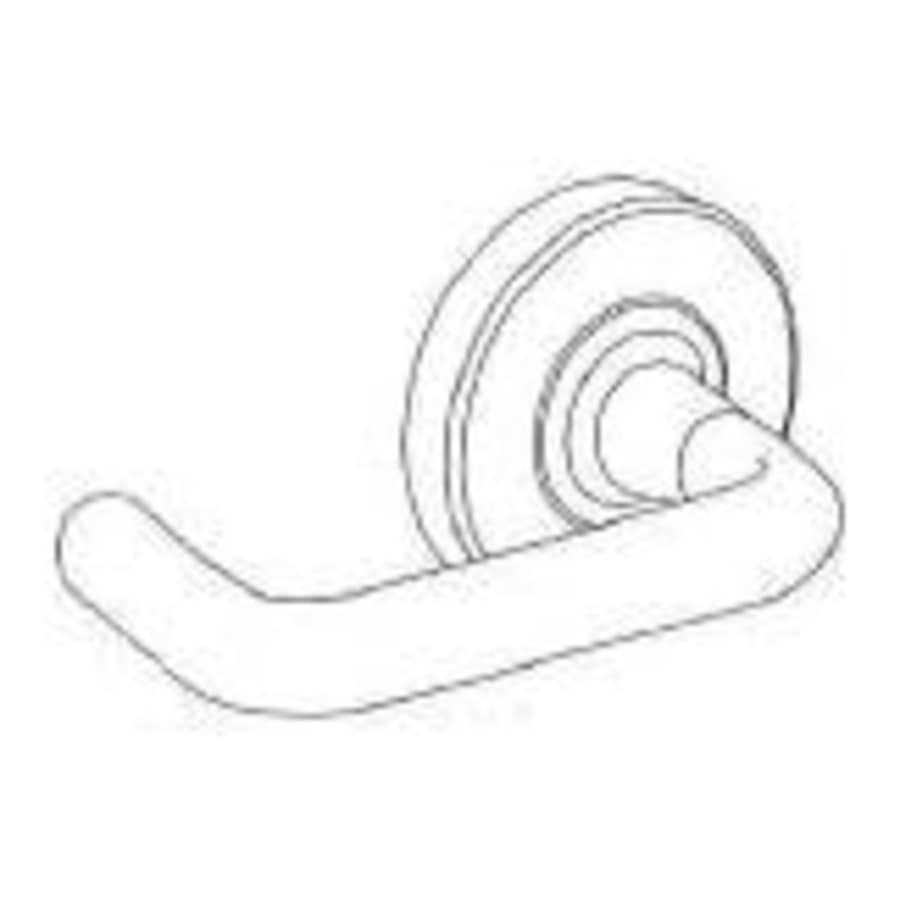

Faculty Restroom Lever Lock from the Tubular Collection
Outside lever fixed.
Entrance by key only.
Push-button in inside lever activates visual occupancy indicator, allowing only emergency master key to operate.
Turning inside lever or closing door releases visual occupancy indicator.
Rotation of inside spanner-button provides lock-out feature by keeping indicator thrown.
Latch: 1 1/8″ x 2 1/4″, Square corner faceplate, 1″ housing diameter, 1/2″ throw
Strike: 1/4″ x 4 7/8″, ANSI, Square corner, no box
Cylinder: Schlage C Keyway 6 Pin
Door Thickness: Standard Lock Functions: 1 5/8″ – 2″, Vandlgard Lock Function: 1 5/8″ – 1 7/8″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
Characteristics and Features
| Thermostat | Modern |
| Handle Material | Metal |
| Handshower | Left, Reversible, Right |
| Style | Commercial |
| Concealed Screws | Yes |
| Function | Faculty Restroom, Keyed Entry |
| Cylinder | 6 Pin, 6 Pin Schlage C |
| Cylinder Type | Single Cylinder |
| Keyway | C |
| Lever Shape | Round, Straight |
| Mortise | No |
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Collection | Tubular |
| Series | ND-Series |
| Certifications | ANSI |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
Dimensions and Measurements
| Edge Bore | 1" |
| Backset | 2-3/4", 2-3/8", 3-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-7/8", 2" |
| Handle Length | 4.9375 in. |
Included Components
| Interchangeable Core | No |
| Color | Oil Rubbed Bronze, Polished Brass, Polished Chrome, Satin Brass, Satin Bronze, Satin Chrome, Satin Nickel |
| Color Tone | Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
