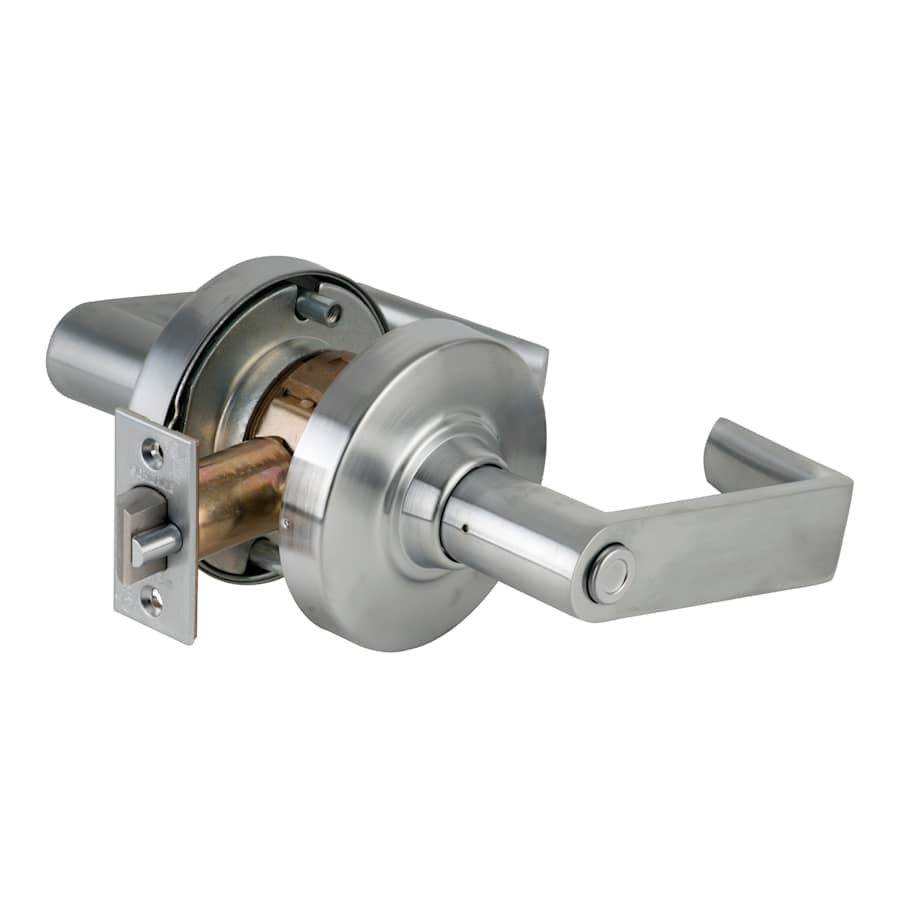

Entrance / Office Lever Lock from the Rhodes Collection
Push-button locking.
Push-button disengages outside lever until unlocked with key or by turning inside lever.
Vandlgard is designed to disengage outside spindle from latch when in locked condition.
Latch: 1 1/8″ x 2 1/4″, Square corner faceplate, 1″ housing diameter, 1/2″ throw
Strike: 1/4″ x 4 7/8″, ANSI, Square corner, no box
Cylinder: Schlage C Keyway 6 Pin
Door Thickness: Standard Lock Functions: 1 5/8″ – 2″, Vandlgard Lock Function: 1 5/8″ – 1 7/8″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
Characteristics and Features
| Thermostat | Modern |
| Handle Material | Metal |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Square Corner |
| Concealed Screws | Yes |
| Function | Keyed Entry, Office |
| Rosette Shape | Round |
| Cylinder | 6 Pin Schlage C, 6 Pin |
| Cylinder Type | Single Cylinder |
| Keyway | C |
| Lever Shape | Straight |
| Interconnected | No |
| Panic Proof | Yes |
| Mortise | No |
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Collection | Rhodes |
| Manufacturer Warranty | 10 Year Limited |
| ADA | Yes |
| Series | ND-Series |
| Certifications | UL |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
Dimensions and Measurements
| Backset | 2-3/4", 2-3/8", 3-3/4", 5" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-5/8", 1-7/8", 2", 2-1/8" |
| Handle Length | 4.875 in. |
Included Components
| Interchangeable Core | No |
| Clutch Mechanism | Yes |
| Color | Oil Rubbed Bronze, Polished Brass, Polished Chrome, Satin Brass, Satin Bronze, Satin Chrome, Satin Nickel |
| Color Tone | Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
