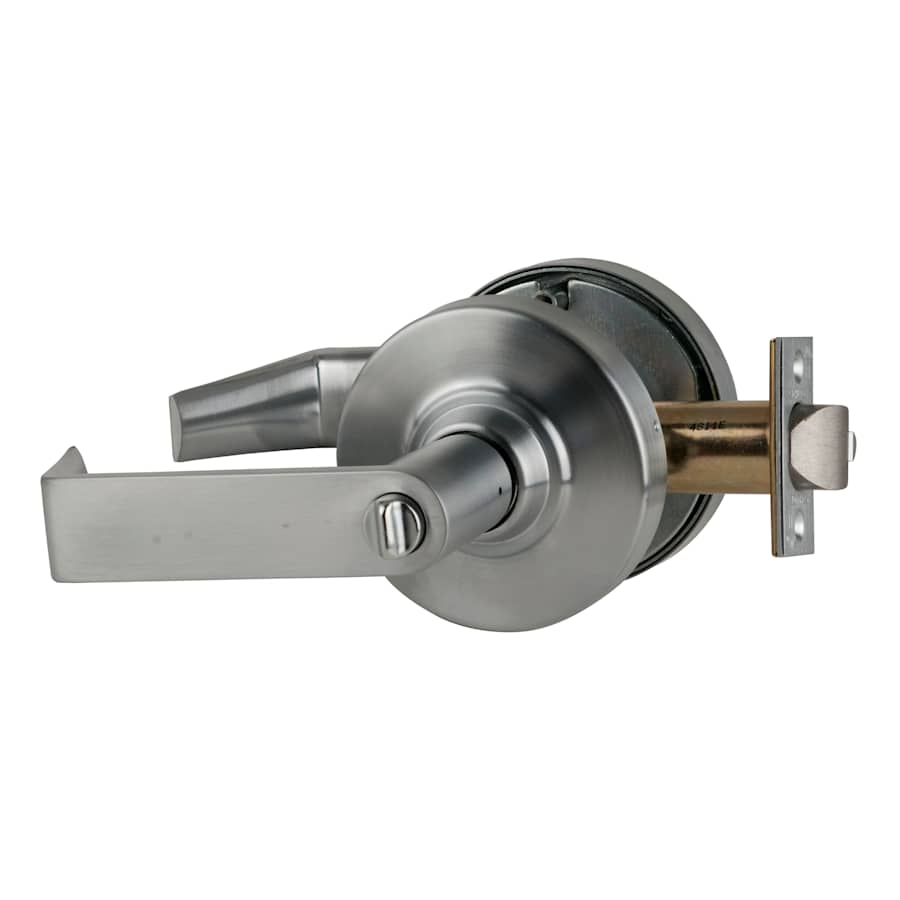

Entrance With Vandlgard Lever Lock from the Omega Collection
Turn/push-button locking; pushing and turning button disengages outside lever, requiring use of key until button is manually unlocked. Push-button locking; pushing button disengages outside lever until unlocked by key or by turning inside lever. Vandlgard is designed to disengage outside spindle from latch when in locked condition.
Latch: 1 1/8″ x 2 1/4″, Square corner faceplate, 1″ housing diameter, 1/2″ throw
Strike: 1/4″ x 4 7/8″, ANSI, Square corner, no box
Cylinder: Schlage C Keyway 6 Pin
Door Thickness: Standard Lock Functions: 1 5/8″ – 2″, Vandlgard Lock Function: 1 5/8″ – 1 7/8″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
| Door Thickness | 1-5/8", 1-7/8", 2", 2-1/8" |
| Backset | 2-3/4", 2-3/8", 5" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Length | 4.875 in. |
| Approved for Commercial Use | Yes |
| Collection | Rhodes |
| Series | ND-Series |
| ADA | Yes |
| ANSI Certification | A156.2 |
| Certifications | ANSI, UL |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
| Thermostat | Modern |
| Handle Material | Metal |
| Function | Keyed Entry, Entrance |
| Latch Faceplate | Square Corner |
| Concealed Screws | Yes |
| Cylinder | 6 Pin Schlage C, 6 Pin |
| Cylinder Type | Single Cylinder |
| Handshower | Left, Reversible, Right |
| Keyway | C, C123 |
| Rosette Shape | Round |
| Lever Shape | Straight |
| Interchangeable Core | No |
| Clutch Mechanism | Yes |
| Color | Oil Rubbed Bronze |
| Color Tone | Bronze Tones |
