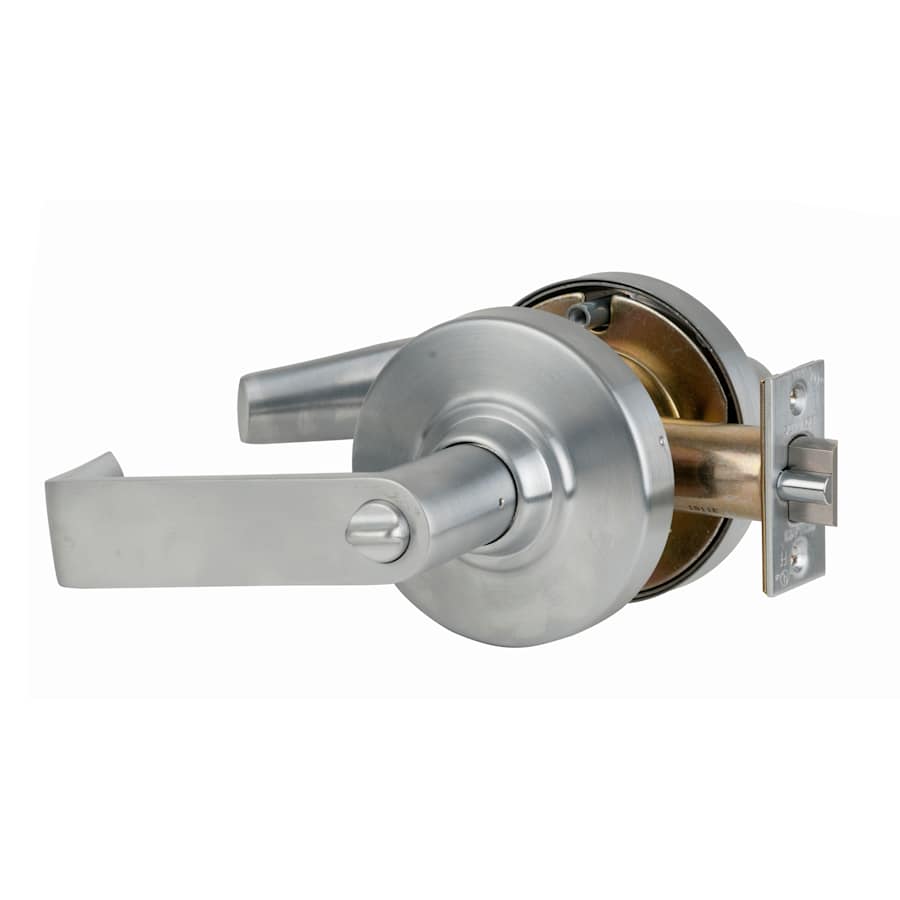

ND-Series Rhodes Commercial Heavy Duty Vandlgard Keyed Entry Door Lever Set Less Interchangeable Core (Core Options Provided)
This lock can always be opened with a key from the outside and has two locking levels on the inside. By turning and pushing the interior button this knob set will remain locked until it is unlocked with a key or manually unlocked on the inside. If the button is only pushed to lock it will be unlocked when the lever is turned as well as using the key.
Vandlgard™ is designed to disengage the outside spindle from the latch when in the locked position. The locked outside lever freely rotates up and down while remaining securely locked. The free-wheeling lever eliminates the ability to exert excessive force or to stand on the lever, preventing damage to internal lock components.
ND-Series locks are for commercial, institutional and industrial use, such as schools, hospitals and factories, where a long life of dependable operation must be combined with a high degree of resistance to physical abuse.
Features:
Keyed Entry Rhodes Lever Set Less Interchangeable Core
Vandlgard Allows Outside Lever to Freely Rotate When Locked
Inside Lever Always Free for Immediate Egress
ADA Compliant
Reversible Lever Handle
Exceeds ANSI A156.2, Series 4000 Grade 1 Locked Lever Torque Requirements
Standard Deadlatch with 2-3/8″ Backset and Square Corner Faceplate
Door Thickness: 1-5/8″ to 2-1/8″
Steel Latchbolt with 1/2″ Throw
Specifications:
Lever Length: 4-7/8″
Lever Projection: 2-1/2″
Lever Rose Diameter: 3-7/16″
Cylinder: C Keyway 6 Pin
For over 90 years, Schlage has been making homes more stylish and secure with the best door locks and door hardware. Today the Schlage family of products also includes the very best in electronic locks, keyless door locks, and home security. Let Schlage’s hardware and security solutions protect and enhance the things that matter most to you.
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
| Material | Zinc |
| Thermostat | Modern |
| Handshower | Reversible, Left, Right |
| Style | Commercial |
| Latch Faceplate | Square Corner |
| Handle Material | Metal |
| Function | Keyed Entry, Entrance |
| Cylinder | 6 Pin Schlage C, 6 Pin |
| Cylinder Type | Single Cylinder |
| Keyway | C123, C |
| Lever Shape | Straight |
| Rosette Shape | Round |
| Interconnected | No |
| Panic Proof | Yes |
| Concealed Screws | Yes |
| Handle Design | Rhodes |
| Interchangeable Core Type | Full Size |
| Mortise | No |
| Manufacturer Warranty | 10 Year Limited |
| Approved for Commercial Use | Yes |
| Collection | Rhodes |
| Series | ND-Series |
| ADA | Yes |
| Certifications | ANSI, UL |
| BHMA Certification | Grade 1 |
| ANSI Certification | A156.2 |
| Fire Rated | Yes |
| Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2-1/8", 2" |
| Backset | 2-3/4", 2-3/8", 5", 3-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Trim Height | 3.4375 in. |
| Trim Width | 3.4375 in. |
| Handle Projection | 2.5 in. |
| Handle Length | 4.875 in. |
| Interchangeable Core | Yes |
| Clutch Mechanism | Yes |
| Color | Oil Rubbed Bronze |
| Color Tone | Bronze Tones |
