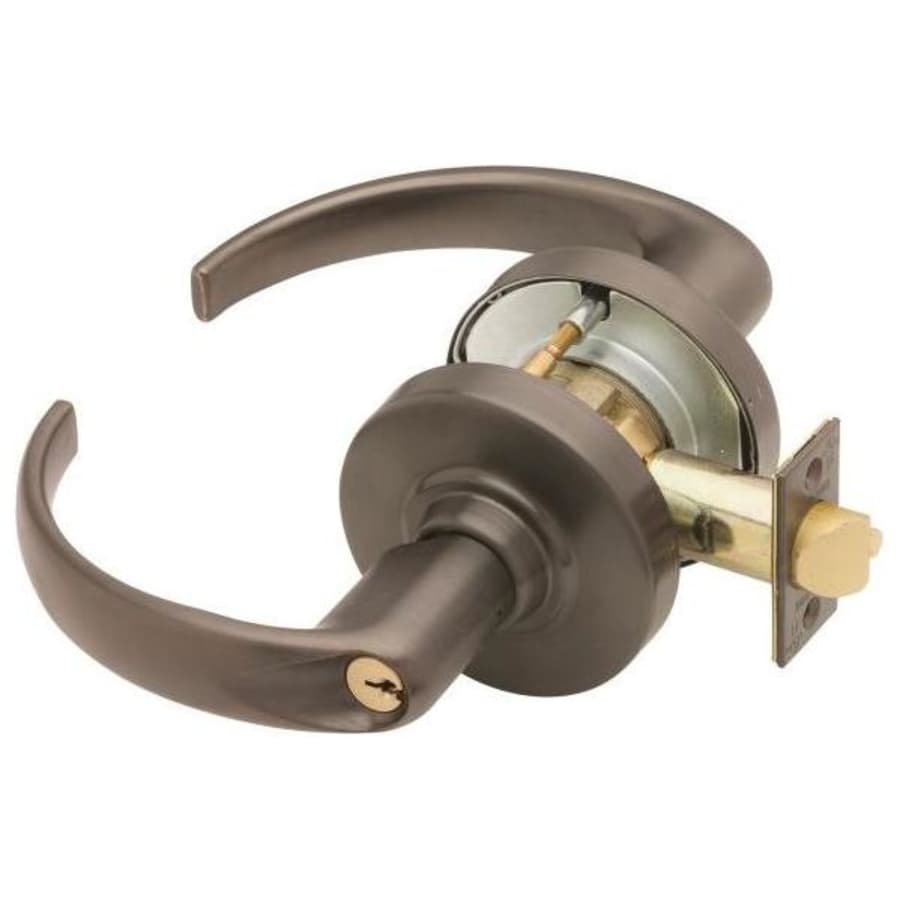

Vestibule Lever Lock from the Sparta Collection
Latch retracted by key from outside when outside lever is disengaged by key in inside lever. Inside lever is always unlocked. Vandlgard is designed to disengage outside spindle from latch when in locked position.
Latch: 1 1/8″ x 2 1/4″, Square corner faceplate, 1″ housing diameter, 1/2″ throw
Strike: 1/4″ x 4 7/8″, ANSI, Square corner, no box
Cylinder: Schlage C Keyway 6 Pin
Door Thickness: Standard Lock Functions: 1 5/8″ – 2″, Vandlgard Lock Function: 1 5/8″ – 1 7/8″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
Characteristics and Features
| Thermostat | Transitional |
| Handle Material | Metal |
| Handshower | Left, Reversible |
| Concealed Screws | Yes |
| Function | Keyed Entry, Vestibule |
| Latch Faceplate | Square Corner |
| Lever Shape | Straight |
| Rosette Shape | Round |
| Style | Commercial |
| Cylinder | 6 Pin |
| Cylinder Type | Single Cylinder, Double Cylinder |
| Keyway | C |
| Panic Proof | Yes |
| Handle Design | Sparta |
| Interconnected | No |
| Mortise | No |
Warranty and Product Information
| ADA | Yes |
| Manufacturer Warranty | 10 Year Limited |
| Collection | Sparta |
| Certifications | ANSI, UL |
| Approved for Commercial Use | Yes |
| Series | ND-Series |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 1 |
Dimensions and Measurements
| Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2", 2-1/8" |
| Backset | 2-3/4", 3-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Length | 4.9375 in. |
Included Components
| Interchangeable Core | No |
| Clutch Mechanism | Yes |
| Color | Oil Rubbed Bronze |
| Color Tone | Bronze Tones |
