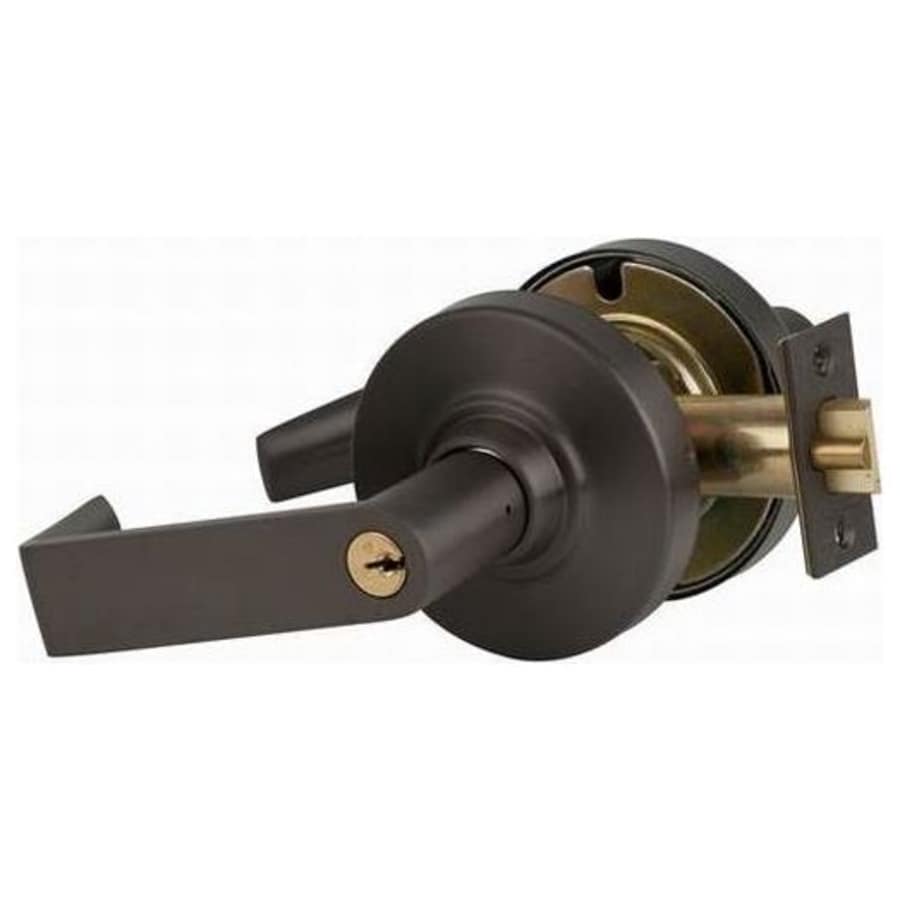

Classroom Lock with Vandlgard Lever from the Rhodes Collection
Outside lever disengaged and unlocked by key. Inside lever always unlocked. Vandlgard is designed to disengage outside spindle from latch when in locked condition.
Latch: 1 1/8″ x 2 1/4″, Square corner faceplate, 1″ housing diameter, 1/2″ throw
Strike: 1/4″ x 4 7/8″, ANSI, Square corner, no box
Cylinder: Schlage C Keyway 6 Pin
Door Thickness: Standard Lock Functions: 1 5/8″ – 2″, Vandlgard Lock Function: 1 5/8″ – 1 7/8″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
Characteristics and Features
| Thermostat | Modern |
| Handshower | Left, Reversible |
| Style | Commercial |
| Handle Material | Metal |
| Function | Keyed Entry, Classroom |
| Cylinder | 6 Pin |
| Cylinder Type | Single Cylinder |
| Keyway | C, C123 |
| Lever Shape | Straight |
| Rosette Shape | Round |
| Interconnected | No |
| Panic Proof | Yes |
| Concealed Screws | Yes |
| Handle Design | Rhodes |
| Mortise | No |
Warranty and Product Information
| Manufacturer Warranty | 10 Year Limited |
| Approved for Commercial Use | Yes |
| Collection | Rhodes |
| Series | ND-Series |
| ADA | Yes |
| Certifications | ANSI, UL |
| BHMA Certification | Grade 1 |
| ANSI Certification | A156.2 |
| Fire Rated | Yes |
Dimensions and Measurements
| Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2" |
| Backset | 2-3/4", 3-3/4", 5" |
| Edge Bore | 1" |
| Handle Length | 4.875 in. |
Included Components
| Interchangeable Core | No |
| Clutch Mechanism | Yes |
| Color | Oil Rubbed Bronze |
| Color Tone | Bronze Tones |
