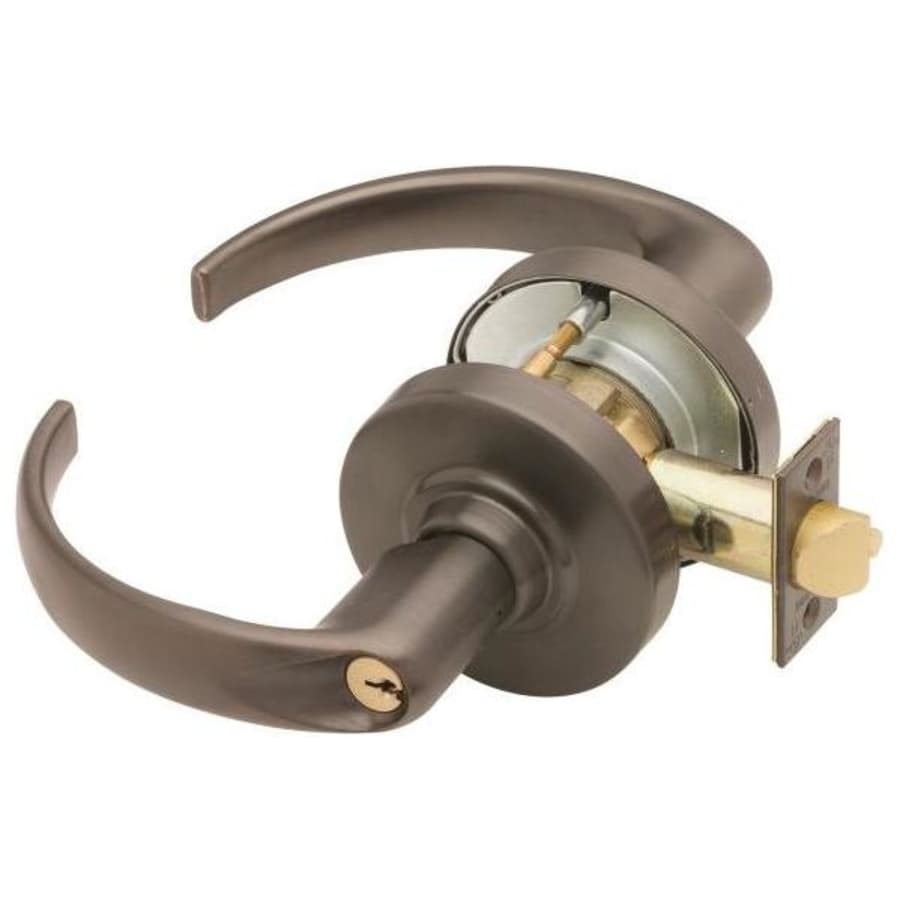

Storeroom Lock with Vandlgard Lever from the Sparta Collection
Outside lever always disengaged. Entrance by key only. Inside lever always unlocked. Vandlgard is designed to disengage outside spindle from latch when in locked condition.
Latch: 1 1/8″ x 2 1/4″, Square corner faceplate, 1″ housing diameter, 1/2″ throw
Strike: 1/4″ x 4 7/8″, ANSI, Square corner, no box
Cylinder: Schlage C Keyway 6 Pin
Door Thickness: Standard Lock Functions: 1 5/8″ – 2″, Vandlgard Lock Function: 1 5/8″ – 1 7/8″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
Characteristics and Features
| Thermostat | Transitional |
| Latch Faceplate | Square Corner |
| Handshower | Left, Reversible, Right |
| Function | Keyed Entry, Storeroom |
| Cylinder | 6 Pin Schlage C, 6 Pin |
| Handle Material | Metal |
| Cylinder Type | Single Cylinder |
| Keyway | C123, C |
| Interconnected | No |
| Panic Proof | Yes |
| Rosette Shape | Round |
| Lever Shape | Straight |
| Mortise | No |
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Collection | Sparta |
| Manufacturer Warranty | 10 Year Limited |
| ADA | Yes |
| Series | ND-Series |
| Certifications | UL |
| Fire Rated | Yes |
Dimensions and Measurements
| Door Thickness | 1-3/4", 1-5/8", 2" |
| Backset | 2-3/4", 2-3/8", 5" |
| Edge Bore | 1" |
| Cross Bore | 2-1/8" |
| Handle Length | 4.9375 in. |
Included Components
| Interchangeable Core | No |
| Clutch Mechanism | Yes |
| Color | Oil Rubbed Bronze |
| Color Tone | Bronze Tones |
