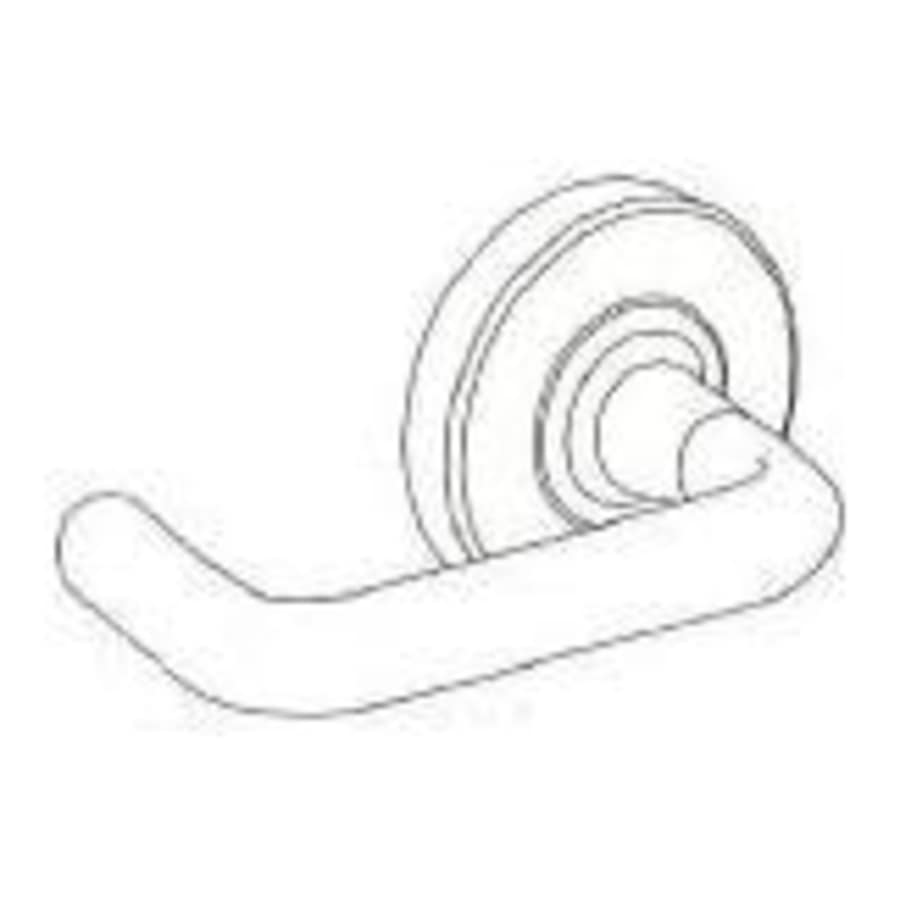

Storeroom Lock with Vandlgard Lever from the Tubular Collection
Outside lever always disengaged. Entrance by key only. Inside lever always unlocked. Vandlgard is designed to disengage outside spindle from latch when in locked condition.
Outside lever always disengaged. Entrance by key only. Inside lever always unlocked. Vandlgard is designed to disengage outside spindle from latch when in locked condition.
Latch: 1 1/8″ x 2 1/4″, Square corner faceplate, 1″ housing diameter, 1/2″ throw
Strike: 1/4″ x 4 7/8″, ANSI, Square corner, no box
Cylinder: Schlage C Keyway 6 Pin
Door Thickness: Standard Lock Functions: 1 5/8″ – 2″, Vandlgard Lock Function: 1 5/8″ – 1 7/8″
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage ND-Series Collection
Specifications
| Thermostat | Modern |
| Handshower | Left, Reversible, Right |
| Handle Material | Metal |
| Style | Commercial |
| Latch Faceplate | Square Corner |
| Concealed Screws | Yes |
| Cylinder | 6 Pin Schlage C, 6 Pin |
| Cylinder Type | Single Cylinder |
| Function | Storeroom, Keyed Entry |
| Keyway | C, C123 |
| Rosette Shape | Round |
| Lever Shape | Round, Straight |
| Panic Proof | Yes |
| Handle Design | Tubular |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 10 Year Limited |
| Collection | Tubular |
| Series | ND-Series |
| Certifications | UL |
| ADA | Yes |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
| Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2", 2-1/8" |
| Backset | 2-3/4", 2-3/8", 3-3/4", 5" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Length | 4.9375 in. |
| Interchangeable Core | No |
| Clutch Mechanism | Yes |
| Color | Oil Rubbed Bronze |
| Color Tone | Bronze Tones |
