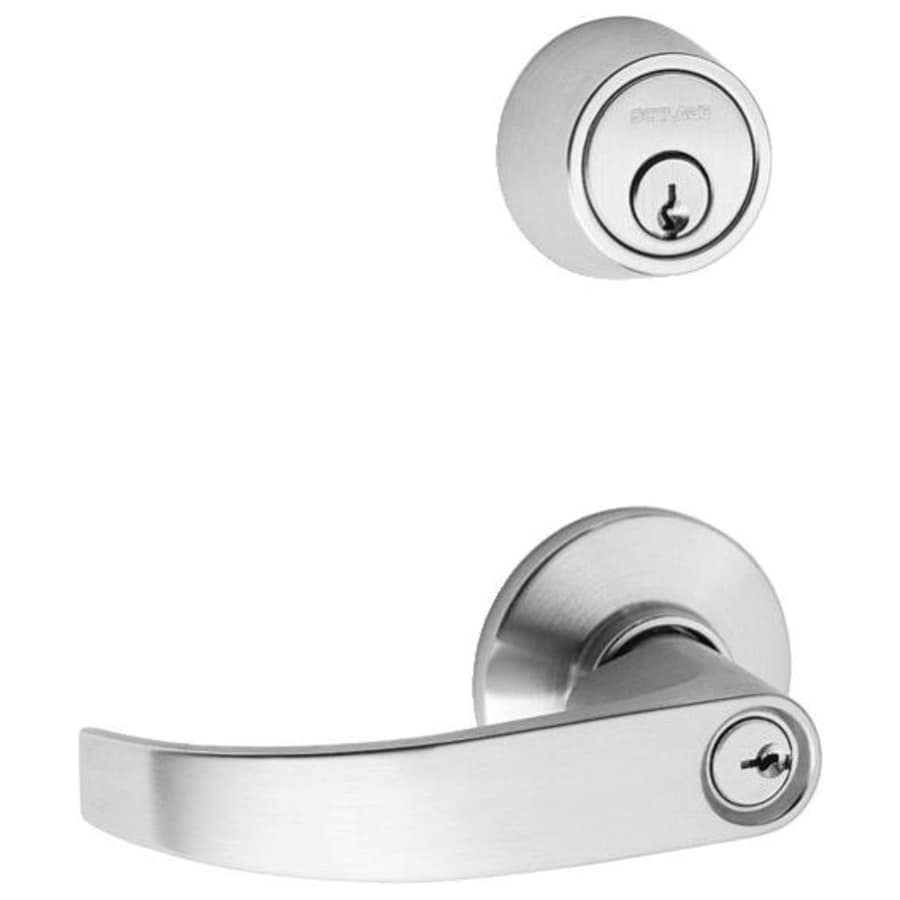

Schlage S200-Series Commercial Tubular Interconnected Double Locking Entrance Neptune Lever Set and Deadbolt with Full Size Interchangeable Cores

Interconnected Commercial Tubular Double Locking Entrance Neptune Lever Set and Deadbolt with Full Size Interchangeable Cores from the S200-Series

The Schlage S200-Series grade 2 interconnected locks are designed for an array of applications, and with an internal mechanism that allows for the deadbolt to be released when the interior handle is turned, this lock can help you achieve distinct specification requirements. Known for accessible egress and dependable security, this lockset has heat-treated steel locking components, and independent heavy-duty lever torsion springs that enable these characteristics to continually meet some of the toughest demands. With an ANSI A156.12-2005 rating for over 400,000 cycles, and its ADA compliance, this lock set is generally used in medium traffic areas, whether it is new construction or retrofit applications.

Features:

Features Neptune Lever and Saturn Inside Escutcheon Designs
For Left or Right Handed Applications
UL Listed for 3-Hour Fire Door
Extra Strength Heat-Treated Steel Locking Components
Durable Heavy-Duty Lever Torsion Springs
Specific Selection of Deadbolt and Dead Latch Combinations
Versatile Choices for Face and Strike Plates
3 Year Limited Warranty

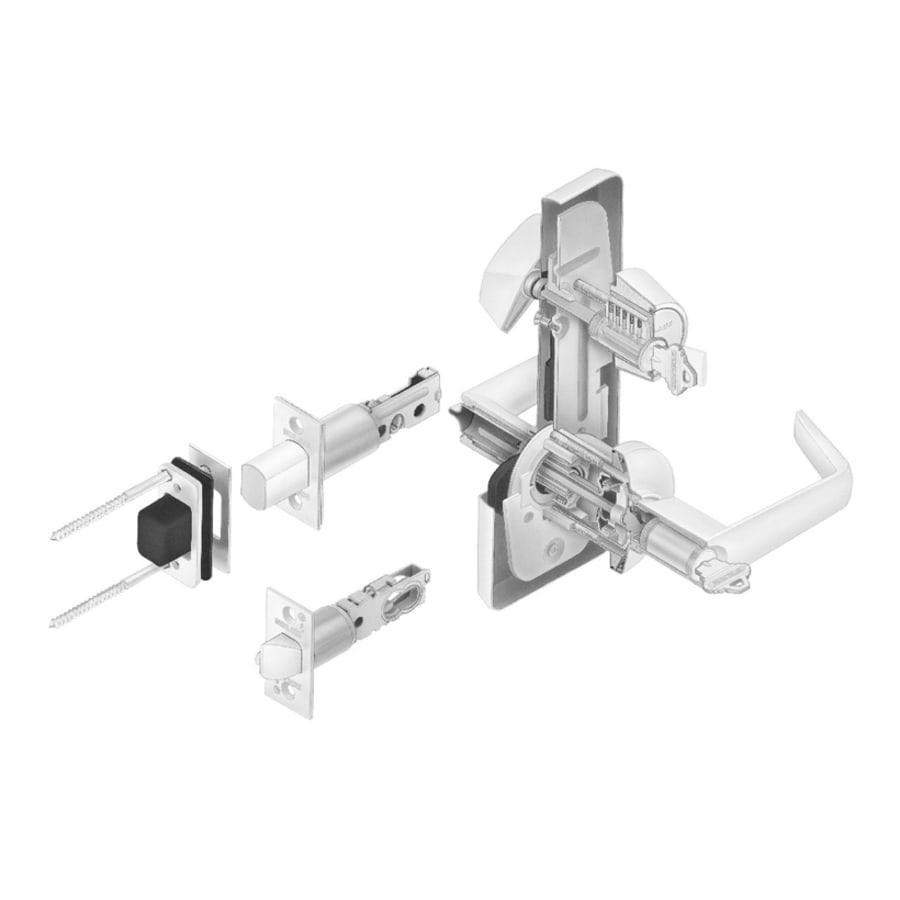

Double Locking: As the name suggests, the double locking function is comprised of two locking points, the deadbolt, and the dead latch. The deadbolt is thrown and retracted on the outside with a key, and utilizes a turn knob to lock and unlock from the interior. The handle latch is also operated by a key on the exterior and turn button on the interior, but is automatically locked when the door is closed. Another feature of this function is the ability of the interior handle to simultaneously release both the dead latch and deadbolt when turned, for safe and immediate exit capabilities.

Full Size Interchangeable Core: This lockset comes with solid brass 6-Pin cylinders located inside full size interchangeable cores in both the handle and deadbolt.

Specifications:

Backset: Adjustable 2-3/8 and 2-3/4 Inch or 5 Inch
Deadbolt: 1″ Housing Diameter and 1″ Throw
Dead Latch: 1″ Housing Diameter and 1/2″ Throw
Door Thickness: 1-3/8 to 2 Inches
Projection: 2.5 Inches
Height: 8 Inches
Cross Bore: 2-1/8 Inches
Edge Bore: 1 Inch
Includes:
Interior and Exterior Neptune Lever Sets
Interior Saturn Escutcheon
Selected Deadbolt and Dead Latch Combination
Selected Strike/Face Plates
Metal Dust Box Reinforcer with (3) 3″ Screws
2 Nickel Silver Cut Keys Per Lock
Similar and Related Products:
Different Lever Style: S251RD-FLA-RH
Different Lever Style: S251RD-FLA-LH
Different Lever Style: S251RD-SAT
Different Lever Style: S251RD-JUP
Single Locking with Full Size Interchangeable Core: S210RD-NEP
Classroom with Full Size Interchangeable Core: S270RD-NEP
Storeroom with Full Size Interchangeable Core: S280RD-NEP
Single Dummy: S290-NEP
Double Locking with 6 Pin Cylinder: S251PD-NEP
Double Locking with Full Size Less Core: S251JD-NEP

For over 90 years, Schlage has been making homes more stylish and secure with the best door locks and door hardware. Today the Schlage family of products also includes the very best in electronic locks, keyless door locks, and home security. Let Schlage’s hardware and security solutions protect and enhance the things that matter most to you.
