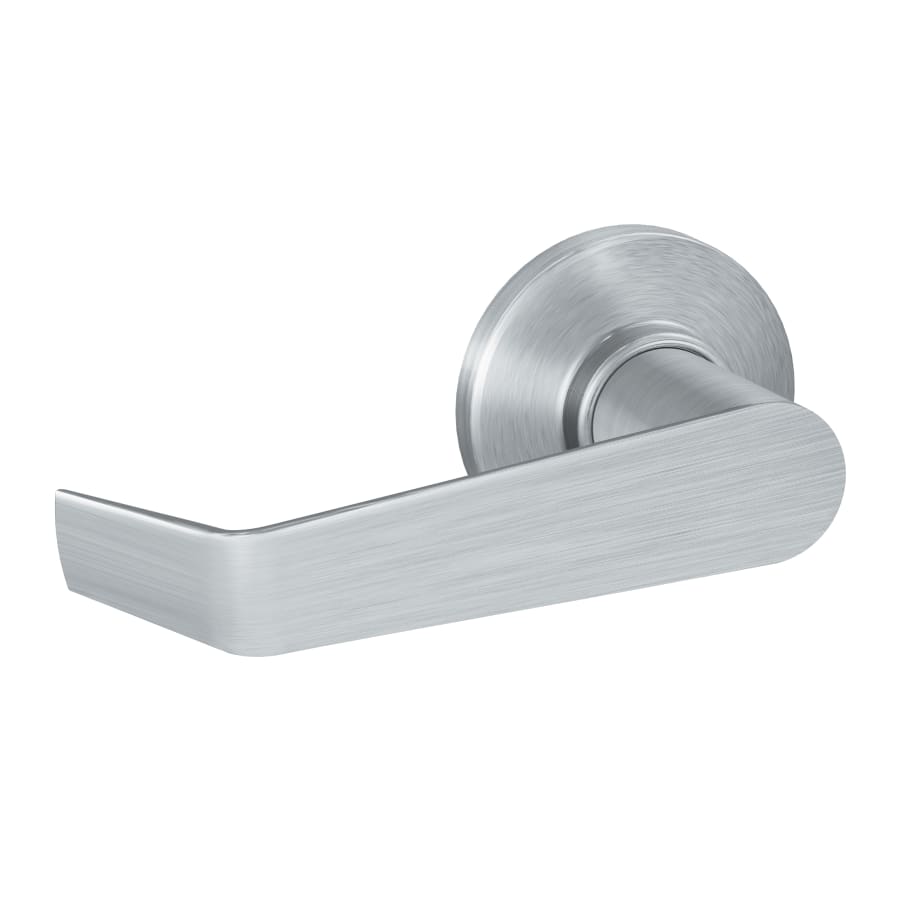

Interconnected Commercial Tubular Storeroom Lock Saturn Lever Set and Deadbolt with 6-Pin Cylinder from the S200-Series
The Schlage S200-Series grade 2 interconnected locks are designed for an array of applications, and with an internal mechanism that allows for the deadbolt to be released when the interior handle is turned, this lock can help you achieve distinct specification requirements. Known for accessible egress and dependable security, this lockset has heat-treated steel locking components, and independent heavy-duty lever torsion springs that enable these characteristics to continually meet some of the toughest demands. With an ANSI A156.12-2005 rating for over 400,000 cycles, and its ADA compliance, this lock set is generally used in medium traffic areas, whether it is new construction or retrofit applications.
Features:
Features Saturn Lever and Inside Escutcheon Designs
For Left or Right Handed Applications
UL Listed for 3-Hour Fire Door
Extra Strength Heat-Treated Steel Locking Components
Durable Heavy-Duty Lever Torsion Springs
Specific Selection of Deadbolt and Dead Latch Combinations
Versatile Choices for Face and Strike Plates
3 Year Limited Warranty
Storeroom Lock: A storeroom functioning lock is primarily distinguished by its fixed outside knob or lever. This functionality means that entrance is possible by key only. The deadbolt, like any common deadbolt, is thrown and retracted on the outside with a key, and utilizes a turn knob to lock and unlock from the interior. Another feature of this function is the ability of the interior handle to simultaneously release both the dead latch and deadbolt for safe, immediate exit capabilities.
6 Pin Upper and Lower Cylinders: This lockset comes with solid brass 6-Pin upper and lower cylinders located inside a C123 keyway.
Specifications:
Backset: Adjustable 2-3/8 and 2-3/4 Inch or 5 Inch
Deadbolt: 1″ Housing Diameter and 1″ Throw
Dead Latch: 1″ Housing Diameter and 1/2″ Throw
Door Thickness: 1-3/8 to 2 Inches
Projection: 2.5 Inches
Height: 8 Inches
Cross Bore: 2-1/8 Inches
Edge Bore: 1 Inch
Includes:
Interior and Exterior Saturn Lever Sets
Interior Saturn Escutcheon
Selected Deadbolt and Dead Latch Combination
Selected Strike/Face Plates
Metal Dust Box Reinforcer with (3) 3″ Screws
2 Nickel Silver Cut Keys Per Lock
Similar and Related Products:
Different Lever Style: S280PD-FLA-RH
Different Lever Style: S280PD-FLA-LH
Different Lever Style: S280PD-JUP
Different Lever Style: S280PD-NEP
Single Locking with 6 Pin Cylinder: S210PD-SAT
Double Locking with 6 Pin Cylinder: S251PD-SAT
Classroom with 6 Pin Cylinder: S270PD-SAT
Single Dummy: S290-SAT
Storeroom with Full Size Interchangeable Core: S280RD-SAT
Storeroom with Full Size Less Core: S280JD-SAT
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage S200-Series Collection
Specifications
| Material | Zinc |
| Thermostat | Modern |
| Style | Commercial |
| Concealed Screws | Yes |
| Cylinder | 6 Pin Schlage C |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry, Storeroom |
| Handshower | Left, Right, Reversible |
| Keyway | C123 |
| Latch Faceplate | Square Corner, Round Corner |
| Panic Proof | Yes |
| Lever Shape | Straight |
| Interconnected | Yes |
| Handle Design | Saturn |
| Mortise | No |
| Approved for Commercial Use | Yes |
| Collection | Saturn |
| Manufacturer Warranty | 3 Year Limited |
| ADA | Yes |
| Series | S200-Series |
| Certifications | ANSI, UL |
| BHMA Certification | Grade 2 |
| ANSI Certification | A156.2 |
| Fire Rated | Yes |
| Center to Center | 4 in. |
| Backset | 2-3/4", 2-3/8", 5", Adjustable 2-3/8" or 2-3/4" |
| Handle Height | 8 in. |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 2", 1-5/8", 1-7/8" |
| Edge Bore | 1" |
| Handle Projection | 2.5 in. |
| Trim Height | 2.5625 in. |
| Trim Width | 2.5625 in. |
| Handle Length | 4.25 in. |
| Latch Throw | 0.5 in. |
| Deadbolt Throw | 1" |
| Cylinder Included | Yes |
| Interchangeable Core | No |
| Color | Antique Brass |
| Color Tone | Brass Tones |
