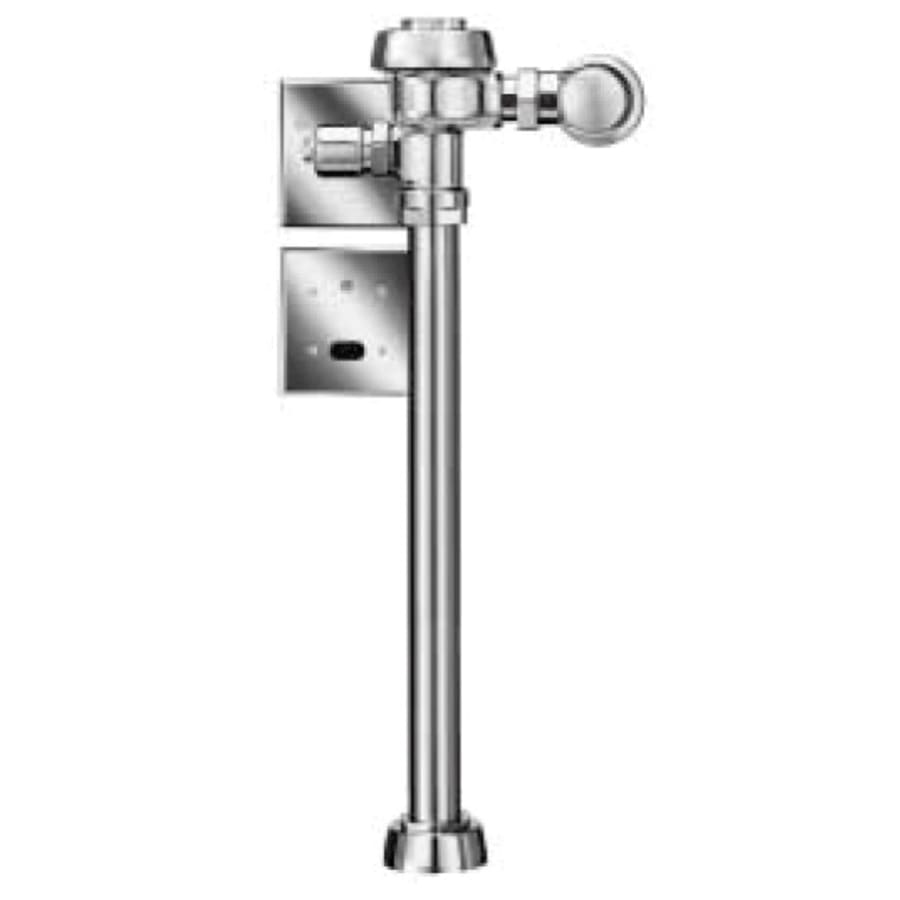

Sloan Water Saver (3.5 gpf) Exposed, Sensor Operated Royal® Model Water Closet Flushometer, for floor mounted or wall hung 1-1/2″ top spud bowls.

Water Saver (3.5 gpf) Exposed, Sensor Operated Royal(R) Model Water Closet Flushometer, for floor mounted or wall hung 1-1/2″ top spud bowls.

Quiet, Exposed, Diaphragm Type, Chrome Plated Closet Flushometer for either left or right hand supply

Water Saver: 3.5 GPF
The Model 116 ES-S valve is designed for installations where the water supply is roughed in 27” (675 mm) above the top of the water closet.
PERMEX. Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
OPTIMA(R) EL-1500-L Self-Adaptive Infrared Sensor with Indicator Light
User friendly three (3) second Flush Delay
Courtesy Flush. Override Button
Non-Hold-Open Integral Solenoid Operator
Two (2) Chrome Plated Wall Cover Plates (for 2-gang Electrical Box) with Vandal Resistant Screws
1″ I.P.S. Screwdriver Bak-Chek. Angle Stop
Free Spinning Vandal Resistant Stop Cap
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with One-Piece Bottom Hex Coupling Nut, Spud Coupling and Flange for 1½. Top Spud
Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange

Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME A112.19.2. Installation conforms to ADA requirements.
